Product Overview

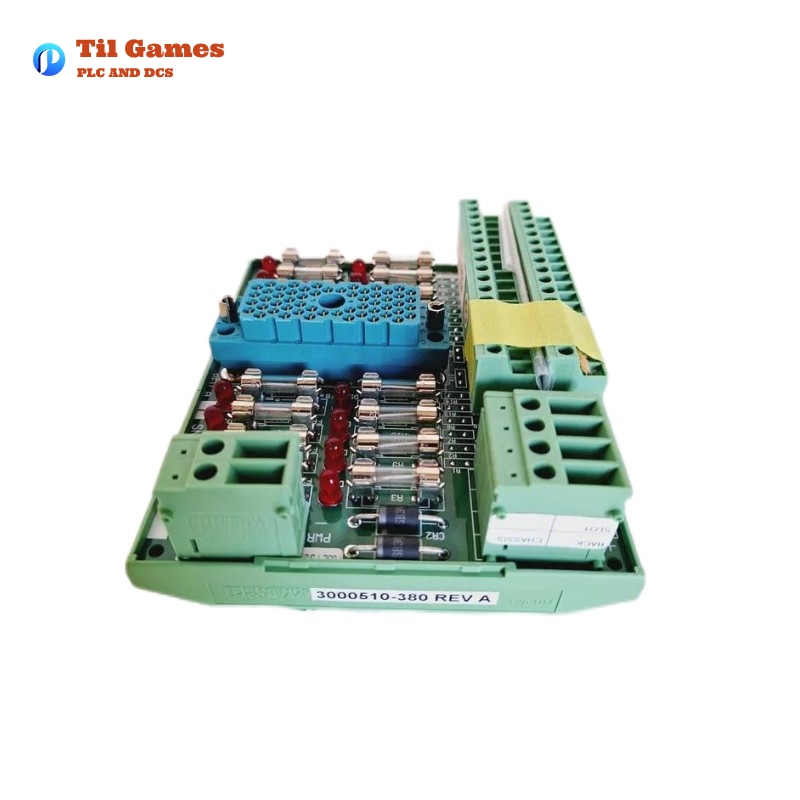

The Triconex 9563-8 is a high-performance digital input termination panel used in Triconex systems, providing reliable and secure connections for digital input signals. Designed for industrial control systems, this panel ensures that field signals are securely transmitted to I/O modules without disruption, even during module replacement. It is engineered for ease of installation and maintenance while ensuring compliance with high safety and quality standards required in demanding environments.

Product Features

  • Field Termination: The 9563-8 panel serves as an intermediary between field wiring and the Tricon I/O system, ensuring easy connection and disconnection without disturbing the field wiring during I/O module replacement.
  • DIN-Rail Compatible: Mounts easily on DIN rails for secure installation in industrial environments.
  • Durability: Built to withstand harsh industrial environments, ensuring long-term reliability and durability.
  • Modular Design: The panel is designed to support both commoned and non-commoned configurations for greater flexibility in various field applications.
  • Safety: Features safety enhancements, such as optional fuses and resistors, to protect field devices and wiring from electrical faults.
  • Cable Options: Comes with pre-configured cables for connecting to the Tricon chassis, with the ability to customize cable lengths based on installation needs.
  • Temperature and Environmental Resistance: Can be used in environments with extreme temperatures and vibrations, ensuring robust performance in industrial control systems.

Product Advantages

  • Simple Maintenance: The design allows for field wiring to remain intact when I/O modules are replaced, reducing downtime during maintenance.
  • Flexibility: Offers flexibility in configuration, including options for both commoned and non-commoned field terminations.
  • Reduced Wiring Complexity: Reduces the complexity of wiring by providing a centralized, organized location for field connections.
  • Safety and Protection: Integrated components such as fuses, resistors, and temperature sensors ensure the safety of both the panel and the field wiring.

Product Applications
The 9563-8 Digital Input Termination Panel is ideal for use in a variety of industrial applications:

  • Process Control Systems: Used in industrial control systems for monitoring and controlling process signals.
  • Manufacturing: Provides reliable digital input connections for machinery and equipment in manufacturing plants.
  • Safety Systems: Suitable for applications that require robust safety features to prevent faults from affecting system operation.
  • Energy and Utilities: Used in critical infrastructure systems such as power plants and water treatment facilities.

Product Specifications

Parameter Specification
Model Number Triconex 9563-8
Digital Inputs 16 Digital Inputs
Input Voltage 24 VDC
Mounting Type DIN Rail
Temperature Range -40°C to +70°C
Weight 0.38 kg
Dimensions 114.3 × 127 × 107.95 mm
Wiring Compatibility 24-12 Gauge (0.3 mm² to 2.1 mm²)
Protection Fuse with Blown Fuse Indicator
Cable Length 10 feet (Standard, Customizable)

Recent News and Reports
The Triconex 9563-8 is widely used in high-stakes industries where reliability and safety are paramount. A recent study on the Triconex system’s performance in automated power plants highlighted the enhanced fault tolerance and minimal downtime offered by the 9563-8 panel, especially in systems requiring frequent module changes.


Related Models within the Triconex Series

Here are six additional models from the Triconex series, offering various configurations for digital input and output:

Model Type Digital Inputs Voltage Features
9561-810 Commoned Digital Input Panel 16 points 115 VDC For standard digital input signals
9562-810 Commoned Digital Input Panel 16 points 48 VDC Suitable for low-voltage applications
9563-810 Commoned Digital Input Panel 16 points 24 VDC Features built-in protection
9565-810 Commoned Digital Input Panel 32 points 48 VDC High-density configuration
9572-610 Non-Commoned Digital Input Panel 16 points 24 VDC Separate input returns for flexibility
9570-610 Non-Commoned Digital Input Panel 32 points 24 VDC Provides a fail-safe configuration

Popular Triconex Models and Their Features

Model Type Digital Inputs Voltage Features
3501E Digital Input Module 32 points 115 VDC General-purpose, high-density
3603B Digital Output Module 16 points 120 VDC Suitable for high-power output applications
9561-110 Basic Digital Input Panel 16 points 115 VDC Basic and cost-effective solution
9661-510 Digital Output Panel 8 points 115 VAC Low-cost solution for 8-point outputs
9761-210 Analog Input Panel 16 points 5 VDC Supports 4-20mA current inputs
9863-710 Analog Output Panel 8 points 24 VDC Buffered loopback signals for high-current applications
FAQ

FAQs

  1. Q: What is the maximum number of inputs the Triconex 9563-8 can support?
    A: The Triconex 9563-8 can support up to 16 digital inputs.

  2. Q: Can I use the Triconex 9563-8 in hazardous locations?
    A: No, the Triconex 9563-8 is designed for general-purpose use. For hazardous environments, consider using a non-incendive or hazardous location-rated model.

  3. Q: What types of cables are compatible with the 9563-8?
    A: The 9563-8 is compatible with interface cables, fanned-out cables, and relay loopback cables.

  4. Q: How does the Triconex 9563-8 panel protect field wiring?
    A: It includes fuses with blown fuse indicators to protect against electrical faults.

  5. Q: What is the size of the Triconex 9563-8 panel?
    A: The dimensions are 114.3 × 127 × 107.95 mm, and the weight is 0.38 kg.

  6. Q: Can the Triconex 9563-8 be installed remotely from the Tricon chassis?
    A: Yes, it can be installed up to 30 meters away from the Tricon chassis, with the use of interface cables.
