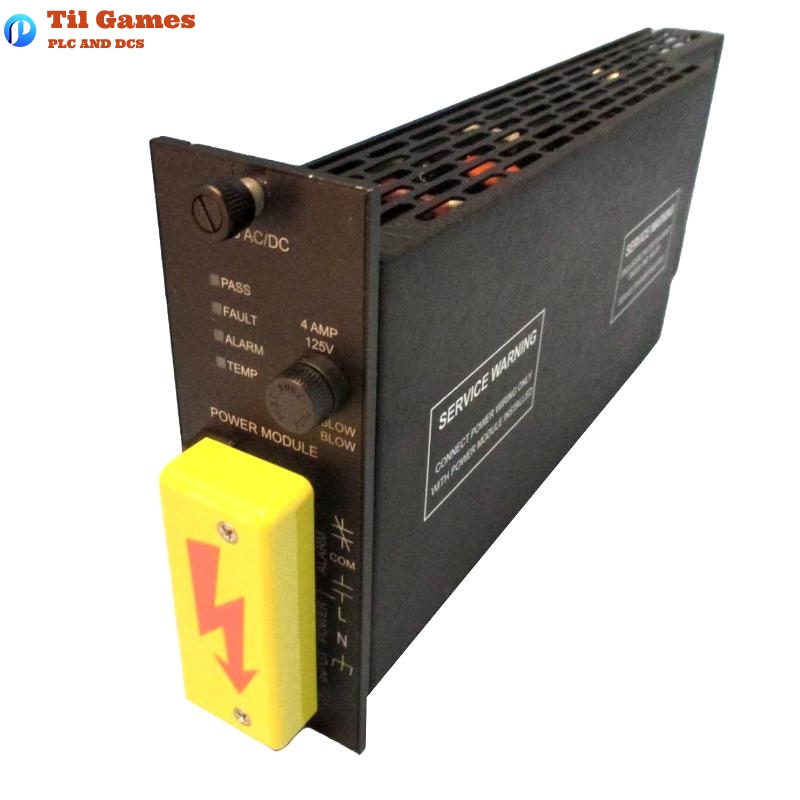

Product Overview – Triconex 8306A Power Supply Module
The Triconex 8306A is a critical component within the Tricon high-integrity safety and control system, specifically engineered to supply reliable and uninterrupted power to Tricon chassis. It is utilized in safety-critical industrial applications that demand fault-tolerant operation, high availability, and operational safety.
This power module is part of a dual-redundant configuration, ensuring system stability and eliminating single points of failure. Designed with built-in diagnostics, the 8306A enables proactive fault detection and maintenance, supporting live module replacement without process interruption. It’s ideally suited for industries such as oil & gas, chemical processing, nuclear, and power generation.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | Triconex 8306A |
| Product Type | Power Supply Module |
| System Type | Tricon High Integrity Safety System |
| Architecture | Triple Modular Redundant (TMR) |
| Input Voltage | 24 VDC / 115-230 VAC (selectable) |
| Power Configuration | Dual-redundant, independent power rails |
| Hot-Swap Capability | Yes |
| Diagnostics | Built-in diagnostics with status indicators |
| Dimensions (W x H x D) | 63 x 178 x 394 mm |
| Weight | 3.3 kg |
Product Features
-
Fully supports Tricon’s TMR fault-tolerant system architecture.
-
Dual independent power channels support redundancy.
-
Modular and hot-swappable design allows online repair.
-
Built-in diagnostics monitor power conditions and thermal status.
-
Supports continuous operation of control systems even under fault conditions.
-
Compatible with all Tricon chassis variants.
-
LED indicators for voltage and thermal status.
Product Advantages
-
Uninterrupted Operation: Enables module replacement without shutting down the system.
-
Redundant Power: Each module can independently power all chassis components, ensuring no single-point failure.
-
High Availability: Meets the demands of 24/7 industrial processes.
-
Ease of Maintenance: Supports proactive diagnostics and replacement.
-
Adaptability: Supports both DC and AC voltage ranges.
-
Enhanced System Integrity: Integral part of Tricon’s proven safety platform.
Product Applications
-
Emergency Shutdown Systems (ESD)
-
Fire & Gas Systems (F&G)
-
Boiler Management Systems (BMS)
-
Compressor/Turbine Control Systems
-
Nuclear Reactor Safety Control
-
Refinery & Petrochemical Process Control
-
Offshore Platform Protection Systems
-
Power Generation Safety Instrumented Systems (SIS)
Latest Report Title
“Lifecycle Phase Report for Triconex Power Modules Including 8306A – Continued Support and Compatibility in High-Integrity Safety Systems”
Recommended Related Models (Same Series or Related Function)
| Model | Description | Input Voltage | Application Scope | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| Triconex 8300A | Power Supply Module, standard voltage | 115/230 VAC | General-purpose Tricon systems | 63 x 178 x 394 | 3.3 kg |
| Triconex 8301A | Power Supply Module, enhanced diagnostics | 115/230 VAC | Diagnostic-intensive systems | 63 x 178 x 394 | 3.3 kg |
| Triconex 8305A | Power Supply Module, universal input | 24/48 VDC or AC | Flexible input environments | 63 x 178 x 394 | 3.3 kg |
| Triconex 8305E | Power Supply, European version | 230 VAC | European installations | 63 x 178 x 394 | 3.3 kg |
| Triconex 8110 | High-Density Main Chassis | N/A | Central system integration | Varies per rack config | N/A |
| Triconex 8111 | Expansion Chassis for additional I/O modules | N/A | I/O scaling | Varies per rack config | N/A |
Popular Triconex Models
| Model | Description | Application Type | Dimensions (mm) | Weight |
|---|---|---|---|---|
| Triconex 3008 | Main Processor Module | System CPU/controller | 63 x 178 x 394 | 3.3 kg |
| Triconex 3503E | Enhanced Main Processor Module | Redundant system logic | 63 x 178 x 394 | 3.3 kg |
| Triconex 4101 | Communication Module (ICM) | Data and peer communication | 63 x 178 x 394 | 3.3 kg |
| Triconex 4507 | Honeywell Hiway Interface Module | DCS integration | 63 x 178 x 394 | 3.3 kg |
| Triconex 8312 | Advanced Power Supply with high MTBF | Power redundancy | 63 x 178 x 394 | 3.3 kg |
| Triconex 4409 | Safety Manager Module (Honeywell UCN interface) | Safety integration | 63 x 178 x 394 | 3.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What input voltage does the Triconex 8306A support?
A1: The 8306A supports selectable 24 VDC or 115-230 VAC input.
Q2: Can the 8306A power module be replaced while the system is running?
A2: Yes, it supports hot-swapping, allowing replacement without shutting down the system.
Q3: Is the 8306A compatible with all Tricon chassis?
A3: Yes, it is compatible with standard Tricon high-density main and expansion chassis.
Q4: Does this power supply support diagnostic monitoring?
A4: Yes, it includes onboard diagnostics with status LEDs for voltage and temperature.
Q5: What makes the 8306A fault-tolerant?
A5: Its dual independent power rails and integration into the TMR system provide fault isolation and redundancy.
Q6: What is the size and weight of the Triconex 8306A?
A6: The dimensions are 63 x 178 x 394 mm, and it weighs 3.3 kg.
Q7: How long is the typical lifecycle support for this module?
A7: Power modules like the 8306A typically receive 10 years of full support after withdrawal from sale, followed by best-effort support during the Lifetime Phase.
Q8: In what industries is the Triconex 8306A commonly deployed?
A8: It is used in oil & gas, chemical processing, nuclear power, and other high-reliability industrial sectors.
