Product Description

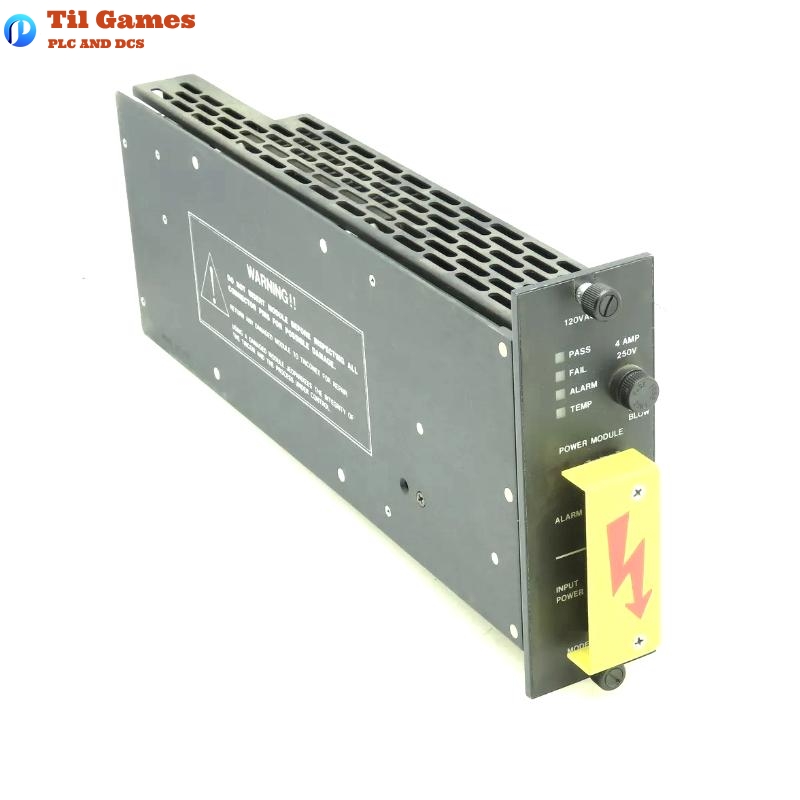

The Triconex 8305E Power Supply Module is a high-reliability, fault-tolerant power supply unit engineered for Triconex safety systems. It delivers regulated DC power to all modules within the Tricon main or expansion chassis. Operating in a dual-redundant configuration, it ensures that even if one power supply fails, the other can independently sustain full system operation without any loss of performance or availability.
Designed to comply with SIL 3 safety standards and harsh industrial environments, the 8305E integrates diagnostics, redundancy, and hot-swappable capabilities, ensuring safety-critical applications remain operational around the clock.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8305E |
| Power Supply Type | Redundant, Hot-Swappable |
| Input Voltage Range | 120/230 VAC or 24 VDC depending on variant |
| Output Voltage | 6.5 VDC ±1% |
| Output Power | 175 W @ 60°C |
| Output Current | 27 A (typical) |
| Fuse Type and Rating | Time-delay, varies by model |
| Isolation Rating | >1000 VAC / 1500 VDC input-to-output |
| Diagnostic Indicators | PASS, FAULT, ALARM, TEMP, BAT LOW |
| Alarm Contacts | NO/NC, supports 120 VAC @ 1 A |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 75°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 63 mm x 178 mm x 394 mm |
| Weight | 3.3 kg |
Product Features
-
Hot-swappable design for online replacement
-
Operates as a standalone unit or in a redundant pair
-
Built-in diagnostics for thermal, voltage, and battery conditions
-
Front-panel LED indicators for immediate fault detection
-
Electrically isolated input-to-output circuitry
-
Alarm contact terminals for external monitoring
-
Supports dual power rails on the backplane
-
Fully compliant with IEC 61508 SIL3 requirements
Product Advantages
-
No process downtime during module replacement due to hot-swap capability
-
Redundant operation guarantees high system availability
-
Extensive diagnostic coverage ensures preemptive maintenance
-
Supports fault-tolerant system architecture
-
Certified for hazardous environments (e.g., FM, CSA, CE, TÜV)
-
Helps achieve zero single-point failure configurations
Applications
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Safety Systems (F&G)
-
Burner Management Systems (BMS)
-
Turbine Control Systems
-
Nuclear Power Plant Safety
-
Offshore and Onshore Oil & Gas Processing Facilities
-
Chemical, Refining, and Petrochemical Safety Systems
