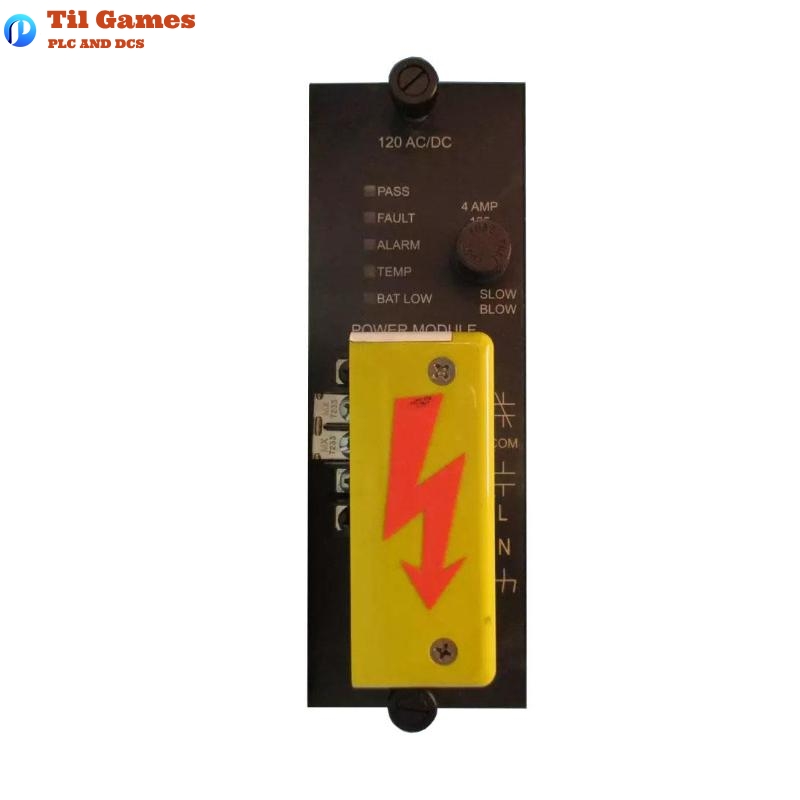

Triconex 8300A Power Supply Module
– Product Description
The Triconex 8300A Power Supply Module is a critical component of the Tricon controller system, designed to deliver high-reliability, dual-redundant power to support safety-critical applications. Engineered to provide fault-tolerant performance, the 8300A module ensures uninterrupted operation of the Triconex main chassis and all installed modules, even in the event of a power module failure.
Each main chassis in a Tricon system supports two 8300A power supply modules working in parallel. Both units feed independent power rails and feature built-in diagnostics, allowing the system to isolate faults without affecting the operational integrity of the controller. This module plays a vital role in the Triconex system’s SIL3-certified architecture, widely adopted in industries demanding maximum safety and availability.
– Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 8300A |
| Function | Redundant Power Supply for Tricon Main Chassis |
| Input Voltage | 120 VAC/VDC (alternatives: 24 VDC, 230 VAC) |
| Output Power Rating | 175 W at 60°C (140°F) |
| Power Rails | Dual independent rails |
| Redundancy | Yes (supports dual power module configuration) |
| Diagnostics | Built-in diagnostics for voltage, temperature |
| Channel Isolation | Independent regulators for each of 3 channels |
| Application | Tricon Main/Expansion/RXM chassis |
| Dimensions | 63 x 178 x 394 mm |
| Weight | 3.3 kg |
| Chassis Compatibility | Model 8110, 8111, 8112 |
| Certifications | SIL 1-3 (IEC 61508), CE, TÜV, CSA, FM |
– Product Features
-
Dual-redundant operation for uninterrupted power delivery
-
Supports all modules in a fully loaded chassis
-
Independent regulators for each TMR channel
-
Automatic isolation of faulted outputs
-
Compatible with all Tricon main, expansion, and RXM chassis
-
Built-in thermal and voltage diagnostics
-
Easy hot-swap capability for online maintenance
– Product Advantages
-
High Availability: Prevents single point of failure with automatic switchover between redundant supplies
-
Safety-Critical Compliance: Certified for SIL3 applications, suitable for emergency shutdown and turbine protection
-
Flexible Power Options: Available in 24 VDC, 120 VAC/VDC, and 230 VAC versions
-
Diagnostic Monitoring: Enables proactive maintenance through real-time monitoring
-
Online Module Replacement: Supports hot-swap repair without halting operations
– Product Applications
-
Emergency Shutdown Systems (ESD)
-
Boiler Flame Safety Systems
-
Turbine Control and Protection
-
Offshore Fire & Gas Systems
-
Refining and Petrochemical Safety Systems
-
Power Generation Control Systems
-
Chemical Process Safety Systems
– Latest Headlines Related to the Product
-
“Triconex Safety Systems Enhance Resilience in Offshore Platforms” – 2025 Oil & Gas Engineering Journal
-
“Redundant Power Supply Modules Redefine SIL3 Safety in Chemical Plants” – Control Engineering March 2025
-
“Modular Redundancy Achieves New Benchmark in Functional Safety” – Automation World Q1 Review 2025
– Related Triconex Models (Same Series or Functional Group)
| Model Number | Description | Power Output | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 8310 | 120 VAC/VDC Power Module | 175 W | 63 x 178 x 394 | 3.3 kg |
| 8311 | 24 VDC Power Supply Module | 175 W | 63 x 178 x 394 | 3.3 kg |
| 8312 | 230 VAC Power Supply Module | 175 W | 63 x 178 x 394 | 3.3 kg |
| 3008 | Main Processor Module | N/A | 63 x 178 x 394 | 2.1 kg |
| 8110 | Main Chassis – High Density | N/A | 483 x 578 x 451 | 24.5 kg |
| 8111 | Expansion Chassis – High Density | N/A | 483 x 578 x 451 | 24.5 kg |
– Popular Triconex Models
| Model Number | Description | Function | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 3008 | Main Processor Module | Executes control logic | 63 x 178 x 394 | 2.1 kg |
| 8110 | Main Chassis Assembly | Houses core modules | 483 x 578 x 451 | 24.5 kg |
| 4351A | Tricon Communication Module | Ethernet/Serial communications | 63 x 178 x 394 | 2.3 kg |
| 3703E | Analog Input Module (Isolated) | 0-5/0-10 VDC, 16 channels | 63 x 178 x 394 | 2.5 kg |
| 3625 | 24 VDC Digital Output Module (Supervised) | 32-channel output | 63 x 178 x 394 | 2.7 kg |
| 3805E | Analog Output Module (4-20 mA, 8 points) | Analog control output | 63 x 178 x 394 | 2.6 kg |
FAQ
– Frequently Asked Questions (FAQ)
Q1: What power inputs are supported by the Triconex 8300A?
A1: The 8300A supports 120 VAC/VDC inputs. Alternative models (8311, 8312) support 24 VDC and 230 VAC respectively.
Q2: Can the 8300A module be replaced online without system shutdown?
A2: Yes, the 8300A supports hot-swap capability, allowing module replacement during live operation.
Q3: What is the output power rating of the Triconex 8300A?
A3: It delivers up to 175 watts at ambient temperatures up to 60°C (140°F).
Q4: Is the 8300A certified for SIL3 safety applications?
A4: Yes, the 8300A, as part of the Tricon system, is certified up to SIL3 per IEC 61508.
Q5: What diagnostic features are integrated into the 8300A module?
A5: It includes over-temperature protection, voltage range monitoring, and fault isolation capabilities.
Q6: What happens if one power module fails in a dual setup?
A6: The second module continues to supply power without interruption; the system remains fully operational.
Q7: Is the Triconex 8300A compatible with all Tricon chassis?
A7: Yes, it is compatible with the Main (8110), Expansion (8111), and RXM (8112) chassis.
Q8: How heavy is the 8300A Power Module and what are its dimensions?
A8: The module weighs approximately 3.3 kg and measures 63 x 178 x 394 mm.
