Product Overview

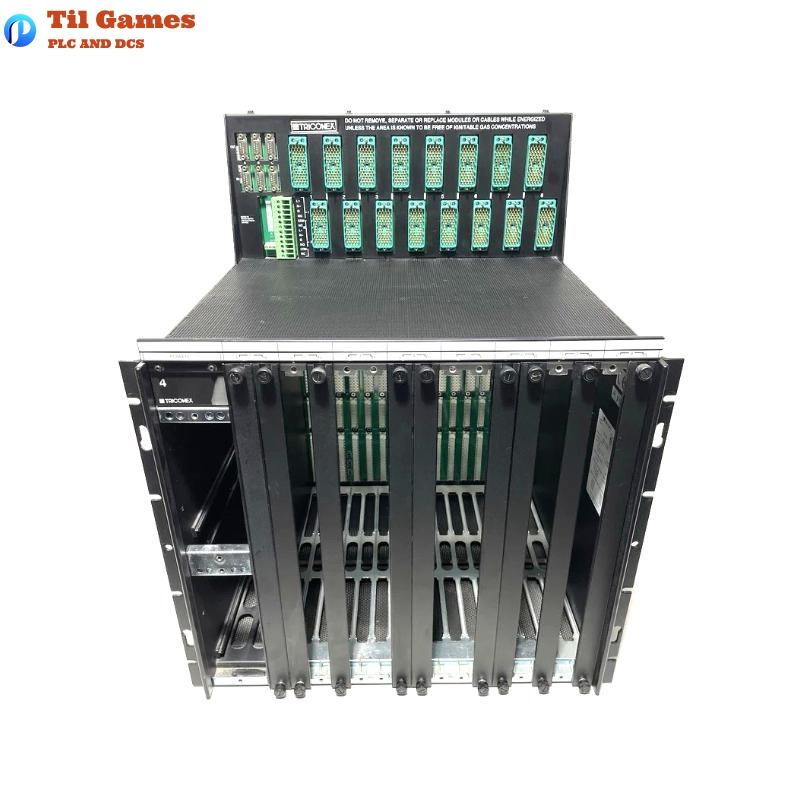

The Triconex 8111 3000603-100 High Density Main Chassis is an integral component of the Triconex fault-tolerant control system, known for delivering exceptional safety, availability, and reliability in critical industrial applications. This expansion chassis is designed to work alongside the main chassis (Model 8110) to expand I/O capabilities, making it essential in large-scale installations that demand high-density, high-integrity process control.
The 8111 model supports a wide range of I/O and communication modules through its standardized slots and triplicated bus architecture, ensuring uninterrupted operation and seamless scalability.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 8111 |
| Product Type | High Density Expansion Chassis |
| I/O Bus Ports | 6 RS-485 Ports (Triplicated: Channels A, B, C) |
| Communication Bus Speed | 2 Mbps |
| I/O Bus Speed | 375 Kbps |
| Supported Modules | I/O and Communication Modules |
| Number of Logical Slots | 8 |
| Power Modules Required | 2 (Dual Redundant) |
| Mounting Type | Rack or Panel Mountable |
| Enclosure Compatibility | NEMA Standard Enclosures |
| Fabrication Material | Zinc-plated, welded cold-rolled steel |
| Dimensions (W x H x D) | 483 x 578 x 451 mm |
| Weight | 24.5 kg (54 lbs) |
Product Features
-
Supports up to eight logical slots for I/O or communication modules.
-
Designed with triplicated serial communications paths for maximum fault tolerance.
-
Dual redundant power module support ensures continuous operation even if one module fails.
-
Mechanical keying on module slots eliminates incorrect module insertion.
-
Enables online module repair and hot-spare support, increasing system availability.
-
Functions as a seamless part of a fully distributed fault-tolerant system.
Key Advantages
-
High System Integrity: Guarantees no single point of failure due to its TMR architecture.
-
Online Repair: Modules can be replaced without system shutdown, maintaining process continuity.
-
Scalability: Supports system growth via connection with up to 14 other chassis (including remote options).
-
Diagnostics: Integrated diagnostic support ensures fast fault detection and resolution.
-
Modular Design: Flexible slot configuration for both I/O and communication modules.
-
Field Proven: Backed by certifications and real-world deployments in hazardous and mission-critical environments.
Applications
-
Emergency Shutdown Systems (ESD): Critical applications in oil & gas and chemical processing.
-
Fire and Gas Safety Systems: Offshore and onshore detection and response systems.
-
Turbine and Compressor Control: High-speed processing and redundancy for rotating machinery.
-
Boiler Management: Integrated protection and control for process steam generation.
-
Nuclear Safety Systems: Approved for use in nuclear 1E applications under NRC guidance.
Latest Industry Reports
-
“High Integrity Control Systems: Expanding Safety through Scalable Redundant Architectures – 2025 Market Review”
-
“Fault Tolerance in Modern Process Safety: Role of Modular TMR Systems in Next-Gen Plants”
Related Models (Same Series or Complementary)
| Model Number | Description | Key Parameters |
|---|---|---|
| 8110 | Main Chassis | 6 logical slots, 3 main processors, dual power |
| 8112 | Remote Expansion Chassis | 6 slots, fiber optic RXM capability |
| 3008 | Main Processor Module | 16 MB DRAM, 3 CPUs, TriBus and I/O processors |
| 8310 | Power Module – 120 VAC/VDC | 175W, supports all modules in chassis |
| 8311 | Power Module – 24 VDC | 175W, compatible with 8111 |
| 9000 | I/O Expansion Cable Set | Triplicated RS-485, standard 6 ft |
Popular Triconex Models
| Model Number | Description | Key Parameters |
|---|---|---|
| 3504E | 64-Point High Density Digital Input Module | TMR, 24/48 VDC, channel-to-channel isolation |
| 3604E | 16-Point Digital Output Module | 24 VDC, opto-isolated outputs |
| 3704E | High-Density Analog Input Module | 0–5 VDC or 0–10 VDC, 64 channels |
| 3805E | Analog Output Module | 8 channels, 4-20 mA current loop |
| 4351A | Tricon Communication Module (TCM) | Ethernet & RS-232/485 support |
| 4200-3 | Remote Extender Module – Primary RXM | Fiber optic connectivity up to 12 km |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the Triconex 8111 High Density Chassis?
A1: It serves as an expansion unit to accommodate additional I/O and communication modules, enhancing system scalability.
Q2: Can the 8111 chassis be used in hazardous environments?
A2: Yes, when mounted in an appropriate NEMA-rated enclosure, it meets standards for industrial and hazardous locations.
Q3: How is the 8111 chassis connected to the main chassis?
A3: It connects via triplicated RS-485 I/O expansion bus cables (Model 9000).
Q4: What is the power requirement for the 8111 chassis?
A4: It requires two redundant power modules, each rated at 175 watts.
Q5: Does the 8111 support online module replacement?
A5: Yes, it allows for online replacement of faulty modules through hot-spare configuration or direct replacement.
Q6: How many I/O modules can be installed in one 8111 chassis?
A6: Up to eight logical slots are available, each supporting dual physical module positions.
Q7: Is the chassis compatible with both analog and digital modules?
A7: Yes, the 8111 supports a wide range of both analog and digital I/O modules.
Q8: What are the mounting options available for the 8111 chassis?
A8: It can be rack-mounted or panel-mounted within standard NEMA enclosures.
