Product Description

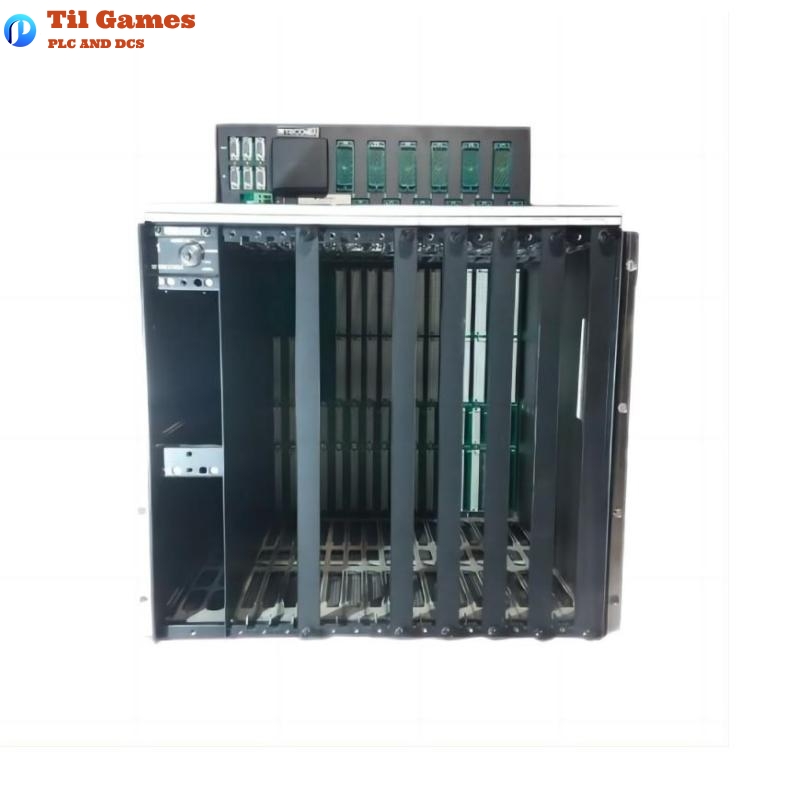

The Triconex 8110 (Part Number: 3000602-100) is the primary High-Density Main Chassis within the Tricon fault-tolerant control system. Designed to house the central processing units and a set of input/output (I/O) and communication modules, it forms the backbone of safety-critical applications where uninterrupted operations and high-integrity control are essential.
This chassis is integral to Triple Modular Redundant (TMR) systems, offering exceptional fault-tolerance, modular scalability, and support for extensive diagnostics. It accommodates three main processors, dual redundant power modules, six logical I/O or communication module slots, and a dedicated COM slot.
Product Specifications
| Parameter | Details |
|---|---|
| Model | Triconex 8110 |
| Part Number | 3000602-100 |
| Type | High-Density Main Chassis |
| Architecture | Triple Modular Redundant (TMR) |
| Logical Slots | 6 for I/O & Communication Modules + 1 COM Slot |
| Power Supply Modules | Supports dual redundant modules (24 VDC, 115 VAC, 230 VAC) |
| Communication Bus Speed | 2 Mbps |
| I/O Expansion Bus Speed | 375 kbps |
| Expansion Capability | Supports 14 expansion or RXM chassis |
| Dimensions (W x H x D) | 483 x 578 x 451 mm |
| Weight | 24.5 kg (54.0 lbs) |
| Chassis Fabrication | Black zinc-plated welded cold-rolled steel |
| Environmental Temperature Range | 0°C to 60°C operating; -40°C to 75°C storage |
| Humidity | 5% to 95% RH, non-condensing |
| Certifications | TÜV, CSA, FM, CE, NRC (Nuclear), ATEX, SEMI S2 |
Product Features
-
Full TMR design ensuring no single point of failure
-
Keyswitch with four system modes (RUN, PROGRAM, STOP, REMOTE)
-
Triple redundant buses for I/O and communication
-
Hot-spare support for online module repair
-
Extensive diagnostic reporting accessible by operator or control software
-
Modular system expansion up to 15 chassis
-
Mechanically keyed slots to prevent incorrect module installation
-
Built-in broadcast communication bus
-
High-speed TriBus synchronization for processors
Product Advantages
-
Uninterrupted Operations: Allows online replacement and repair of modules without halting the process.
-
High Integrity: TMR architecture with 2-out-of-3 voting logic guarantees accurate, fault-tolerant processing.
-
System Expandability: Scalability from a single chassis up to 15 chassis without loss of performance.
-
Comprehensive Diagnostics: Immediate fault detection at module, channel, and signal path level.
-
Universal Compliance: Certified for use in SIL 1-3 environments and hazardous locations.
-
Flexible Communication: Multiple supported protocols including Modbus, OPC, Ethernet, and support for Honeywell/Foxboro DCS integration.
Product Applications
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Protection Systems (F&G)
-
Turbine Control Systems
-
Burner Management Systems (BMS)
-
Boiler Flame Monitoring
-
High-Integrity Pressure Protection Systems (HIPPS)
-
Nuclear Safety Applications
-
Refinery and Petrochemical Plant Automation
Latest Report Title
“Triconex 8110: Ensuring Continuous Safety in Next-Generation Process Control Systems”
Recommended Related Triconex Models (Same or Compatible Series)
| Model | Description | Main Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 8111 | Expansion Chassis | Adds I/O capacity | 483 x 578 x 451 | 24.5 |
| 8112 | RXM Chassis | Remote expansion with fiber | 483 x 578 x 451 | 24.5 |
| 8311 | Power Supply Module 24 VDC | Redundant power module | N/A | 3.3 |
| 8312 | Power Supply Module 230 VAC | Redundant power module | N/A | 3.3 |
| 3008 | Main Processor Module | TMR control processing | N/A | 2.1 |
| 4351A | Tricon Communication Module (TCM) | Ethernet & serial comms | N/A | 2.3 |
Popular Triconex Models
| Model | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3805E | Analog Output Module | 4–20 mA signal output | N/A | 2.3 |
| 3504E | 64-point High Density Digital Input Module | TMR digital input (DC) | N/A | 2.5 |
| 3604E | 24 VDC Digital Output Module | TMR discrete output | N/A | 2.3 |
| 3700A | Analog Input Module (0–5 VDC) | TMR analog signal input | N/A | 2.4 |
| 4351B | Communication Module (Updated TCM) | Modbus/Ethernet communication | N/A | 2.3 |
| 3625 | 24 VDC Supervised/Non-Supervised Output Module | Discrete outputs with diagnostics | N/A | 2.3 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What processors are compatible with the Triconex 8110 chassis?
A1: The chassis supports three Triconex Model 3008 Main Processor Modules for full TMR capability.
Q2: How many logical slots does the 8110 chassis provide?
A2: The 8110 offers 6 logical slots for I/O or communication modules, plus 1 dedicated COM slot.
Q3: What communication options are available for the 8110 chassis?
A3: The chassis supports modules such as the TCM, NCM, HIM, SMM, ACM, and EICM for Ethernet and serial connectivity.
Q4: Can modules be replaced online without stopping the process?
A4: Yes, hot-spare and online replacement capabilities enable faulted modules to be swapped without process interruption.
Q5: What are the chassis mounting options?
A5: It supports both rack and panel mounting in standard NEMA enclosures with appropriate clearances.
Q6: Is the Triconex 8110 compliant with safety certifications?
A6: Yes, it is certified for SIL 1–3 (IEC 61508), NFPA, ATEX, CSA, CE, and NRC for nuclear use.
Q7: What diagnostic features are built into the chassis?
A7: The chassis includes real-time module and channel-level diagnostics, power regulation status, and bus integrity checks.
Q8: Can the chassis operate on a single power supply?
A8: Yes, the dual-redundant design allows full system functionality even if one power supply module fails.
