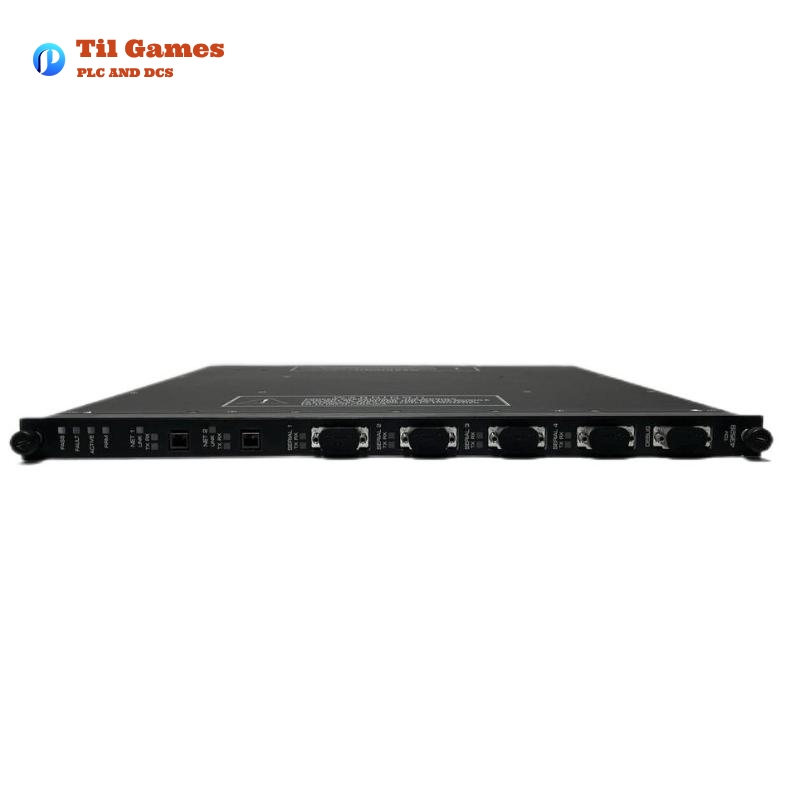

Triconex 4352B Tricon Communication Module
The Triconex 4352B Tricon Communication Module (TCM) is a key component in Triconex safety and control systems. It enables communication between a Tricon controller and a variety of external devices, including Modbus devices, TriStation PCs, printers, and other Triconex controllers. This communication module ensures seamless integration into distributed control systems (DCS), supporting both serial and Ethernet connections for flexible network connectivity.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 4352B |
| Ports | 4 serial ports (RS-232/RS-485), 2 Ethernet ports |
| Network Interface | Ethernet (802.3), Serial (RS-232, RS-485) |
| Maximum Data Rate | 10/100 Mbps (Ethernet), Up to 115.2 kbps (Serial) |
| Isolation | 500 VDC isolation for serial ports |
| Power Consumption | 7 watts |
| Dimensions (L x W x H) | 21 x 405 x 400 mm |
| Weight | 2.3 kg |
| Protocols Supported | TriStation, Modbus, TCP/IP, Peer-to-Peer, TSAA, SNTP, GPS |
Product Features
-
Flexible Connectivity: The Triconex 4352B supports both serial and Ethernet interfaces, making it adaptable to various industrial network configurations.
-
Multiple Communication Ports: Equipped with 4 serial ports and 2 Ethernet ports, the module can handle numerous communication tasks simultaneously.
-
Redundancy and Hot-Swapping: It offers hot-spare capabilities to ensure continuous communication even in the event of a module failure, which is critical in safety-critical applications.
-
High-speed Communication: Supports a high-speed data transfer rate of 10/100 Mbps over Ethernet and up to 115.2 Kbps over serial connections.
-
Time Synchronization: Integrated time synchronization features (via NTP or GPS) help maintain accurate timestamps for all processes.
Advantages
-
Scalability: The module can be configured for large networks by supporting up to four communication modules per controller, offering up to 16 serial ports and 8 Ethernet ports.
-
Reliability: Triconex’s robust architecture ensures continuous communication, even in harsh industrial environments, thanks to its built-in diagnostics and redundant operation.
-
Seamless Integration: It allows easy integration with external devices, including various DCS systems (such as Honeywell and Foxboro), enhancing interoperability.
Applications
The Triconex 4352B is primarily used in applications where safety, reliability, and data integrity are paramount. Common uses include:
-
Safety Systems: Ensuring safety-critical communication in plant automation.
-
Process Control Systems: Enabling reliable data exchange between controllers, sensors, and actuators.
-
Distributed Control Systems (DCS): Connecting with various devices in complex, multi-controller environments.
Latest Report Titles
Unfortunately, the document does not provide specific recent reports on the Triconex 4352B Communication Module. However, the module is commonly discussed in reports related to safety and control system integration in industrial automation.
Related Models
| Model | Description | Key Features |
|---|---|---|
| 4351A | Tricon Communication Module | Similar to 4352B, supports up to 16 serial ports |
| 4353 | Tricon Communication Module | Fiber-optic Ethernet ports for longer distance communication |
| 4119A | Enhanced Intelligent Communication Module (EICM) | RS-232/RS-422/RS-485 communication for Modbus and TriStation |
| 4329 | Network Communication Module (NCM) | Supports Modbus, TriStation, and external host communication |
| 4409 | Safety Manager Module (SMM) | Interfaces with Honeywell DCS, provides data synchronization |
| 4609 | Advanced Communication Module (ACM) | Interfaces with Foxboro I/A Series DCS |
Popular Triconex Models
| Model | Description | Key Features |
|---|---|---|
| 3501E | Digital Input Module, Opto-Isolated | TMR configuration, 32 points |
| 3502E | Digital Input Module, Self-Test | Self-testing functionality, 32 points |
| 3601E | Digital Output Module, Opto-Isolated | 16 points, Diagnostic coverage of output circuits |
| 4119A | Enhanced Intelligent Communication Module (EICM) | Supports Modbus RTU, ASCII, and TriStation |
| 4409 | Safety Manager Module (SMM) | Interfaces with Honeywell UCN, Time Sync |
| 4609 | Advanced Communication Module (ACM) | Interfaces with Foxboro I/A Series Nodebus |
FAQ
FAQs
-
Q: What is the main function of the Triconex 4352B Communication Module?
A: The main function is to facilitate communication between the Tricon controller and various external devices, including Modbus masters/slaves, TriStation PCs, and distributed control systems. -
Q: How many serial ports does the Triconex 4352B have?
A: The 4352B has 4 serial ports (RS-232/RS-485). -
Q: What is the data transfer rate of the Triconex 4352B?
A: It supports data transfer rates of up to 10/100 Mbps over Ethernet and up to 115.2 Kbps over serial connections. -
Q: Can the Triconex 4352B be used for time synchronization?
A: Yes, it supports time synchronization via NTP and GPS. -
Q: Is the Triconex 4352B compatible with Modbus devices?
A: Yes, it supports Modbus communication protocols over both serial and Ethernet connections. -
Q: How does the redundancy feature work in the Triconex 4352B?
A: It supports hot-spare capabilities, allowing continuous operation even in case of a module failure. -
Q: What are the supported communication protocols for the Triconex 4352B?
A: Supported protocols include TriStation, Modbus, TCP/IP, TSAA, SNTP, and GPS synchronization. -
Q: Can the Triconex 4352B be integrated with Honeywell and Foxboro DCS systems?
A: Yes, it is compatible with both Honeywell and Foxboro distributed control systems for seamless integration.
