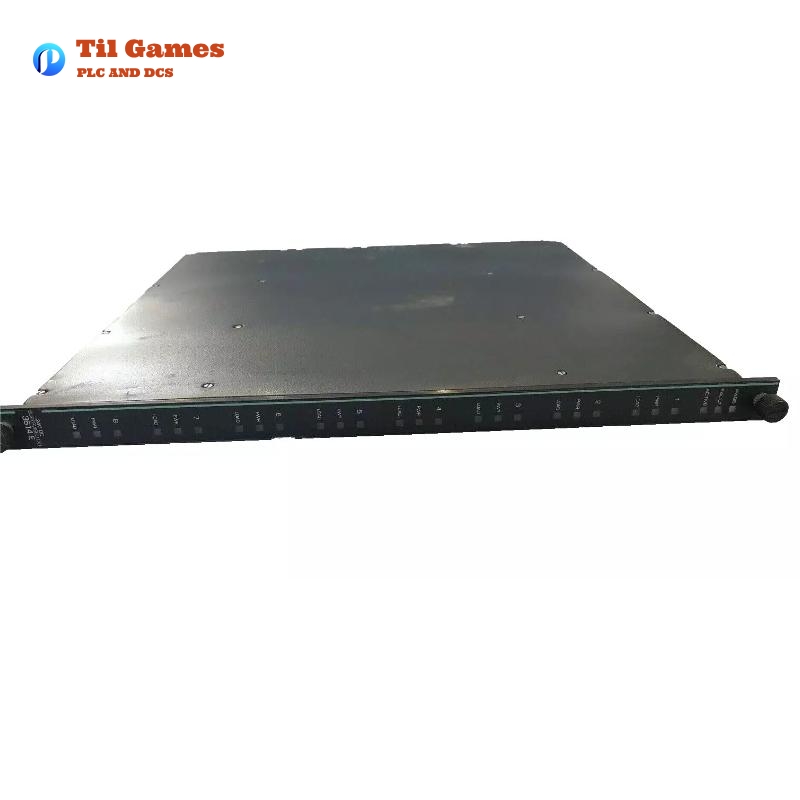

Triconex 3614E Supervised Digital Output Module

Triconex 3614E Supervised Digital Output Module

Manufacturer: Triconex

Product Number:3614E

Product Type:Supervised Digital Output Module

Origin:USA

Dimensions:114.3 ×127 × 107.95 mm

Weight:1.5 kg

Views:11

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/Triconex-3614E-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Triconex-3614E-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Triconex-3614E-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Triconex-3614E-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview
The Triconex 3614E Supervised Digital Output Module is an essential safety and control system component designed for use in critical industrial applications. This module provides supervised digital outputs, ensuring continuous monitoring of the output and field circuits. It is engineered to operate safely over extended periods, maintaining system integrity even in environments with high demands. The 3614E features fault detection and diagnostics, enabling quick identification and resolution of issues without disrupting the operational output.


Product Specifications

Specification Details
Model Number 3614E
Nominal Voltage 115 VAC
Voltage Range 90-155 VAC
Output Points 8, commoned
Maximum Switching Power 2000 VA (resistive)
ON State Voltage Drop < 2V (typical)
Maximum Current per Point 2A per point (10A surge)
Minimum Required Load 50 mA
Secondary Power Supply Voltage n/a
Chassis Leakage 1mA max @ 60 Hz
Load Leakage 4 mA max
Fuses (on Field Termination) 1 per output (2.5A fast-acting)
Point Isolation 1500 VDC minimum
Dimensions 114.3 × 127 × 107.95 mm
Weight 1.5 kg

Key Features and Benefits

  • Supervised Outputs: This module’s supervised outputs ensure that faults in the output circuitry or field devices are detected and reported, including open or missing loads and power loss.

  • Advanced Diagnostics: The 3614E features voltage and current loopback diagnostics, enabling the module to check for field faults such as blown fuses or incorrect load conditions.

  • Reliability and Safety: With quadruplicated output switches and fault-tolerant architecture, the module guarantees continuous operation even in the event of individual component failures.

  • Hot-Spare Capability: The hot-spare functionality ensures that the module can be replaced while the system is running, minimizing downtime in mission-critical applications.

  • Compact Design: The module is compact, ensuring easy integration into existing systems with minimal space requirements.


Applications
The 3614E Supervised Digital Output Module is ideal for use in industries that require high reliability and safety, including:

  • Oil and Gas: Ensuring continuous operation of safety shutdown systems in pipelines and processing plants.

  • Chemical Processing: For controlling vital processes where output reliability and fault detection are crucial for operational safety.

  • Nuclear Power: Used in reactor safety systems to monitor and control critical shutdown outputs.

  • Industrial Automation: In automated manufacturing systems where system integrity must be maintained without downtime.


Latest Reports and Developments

  • “Enhancing Safety in Industrial Systems with Triconex 3614E” – A case study detailing the module’s role in improving safety and reliability in hazardous environments.

  • “Maximizing Uptime with Supervised Digital Output Modules” – A report on how the 3614E’s advanced diagnostics contribute to operational efficiency.


Recommendations for Related Models
Here are six models related to the Triconex 3614E:

Model Number Voltage Points Application Key Features
3617E 48 VDC 8, commoned Safety and Automation Supervised outputs, hot-spare ready
3623T 120 VDC 16, commoned Industrial Control Systems Advanced diagnostics and fault detection
3625 24 VDC 32, commoned Critical Process Control Dual output, supervised and non-supervised
3604E 24 VDC 16, non-commoned General Automation Simple design, cost-effective
3601E 115 VAC 16, non-commoned Power Distribution Systems High-voltage operation
3664 24 VDC 32, commoned Complex Industrial Systems Dual output, optimized for high-demand environments

Triconex Popular Models

Model Number Nominal Voltage Output Signals Diagnostic Features
3611E 115 VAC 8, commoned Advanced fault diagnostics
3617E 48 VDC 8, commoned Supervisory loopback checks
3601E 115 VAC 16, non-commoned High-voltage applications
3623T 120 VDC 16, commoned High-power handling
3624 24 VDC 16, commoned Hot-spare functionality
3603B 120 VDC 16, commoned Dual-voltage outputs
FAQ

Frequently Asked Questions (FAQ)

  • Q1: What is the maximum current rating per output point?
    A1: The maximum current rating is 2A per point, with a 10A surge allowed per AC cycle.

  • Q2: Can the 3614E module be replaced without interrupting the system?
    A2: Yes, the module supports hot-spare operation, which allows for module replacement while the system is running.

  • Q3: How does the 3614E handle field faults like missing loads?
    A3: The module detects and reports field faults, including missing loads or power loss, through its advanced diagnostic features.

  • Q4: Is there a secondary power supply option for the 3614E?
    A4: No, the 3614E does not include a secondary power supply, but other models like the 3623T do.

  • Q5: What kind of diagnostic indicators are available?
    A5: The 3614E provides diagnostic indicators for output status, module status, load status, and fault conditions.

  • Q6: What is the typical application environment for the 3614E?
    A6: The 3614E is used in critical applications where system reliability and fault detection are crucial, such as in safety systems for oil and gas, chemical, and power industries.

  • Q7: Can the 3614E module detect a shorted load?
    A7: Yes, the module can detect shorted loads, ensuring that any issues are immediately reported.

  • Q8: How does the 3614E ensure safety in high-risk environments?
    A8: The 3614E employs redundant output switching, voltage and current loopback diagnostics, and fault-tolerant architecture to ensure continuous safe operation even during faults.
