Product Overview

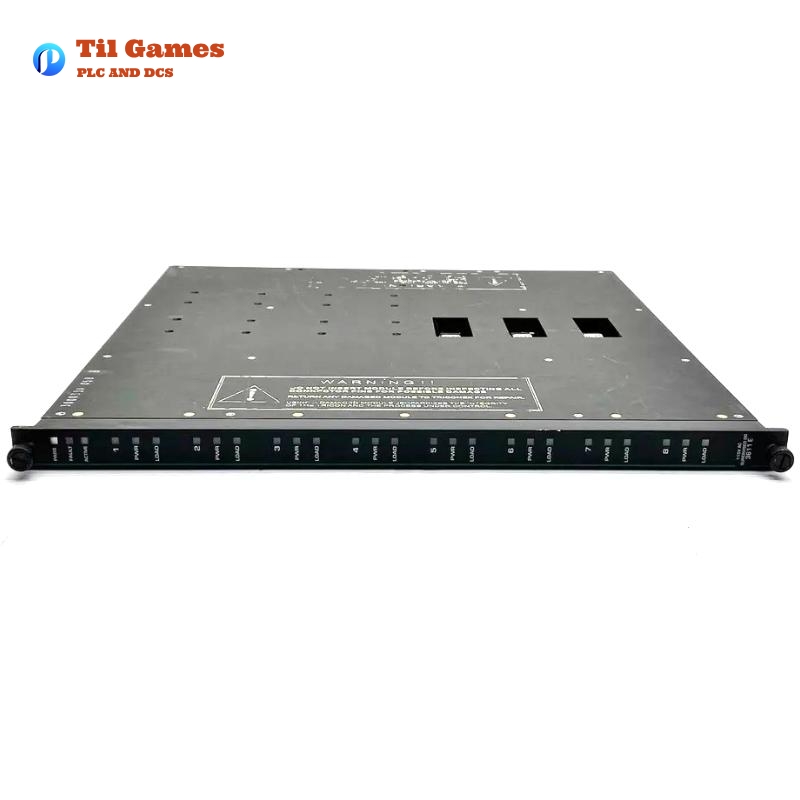

The Triconex 3611E is a critical component of the Triconex safety and control systems, designed to produce supervised digital output signals for systems where outputs remain in a fixed state for extended periods. The module is essential for applications requiring robust fault tolerance, high reliability, and continuous supervision of the output signals. The 3611E module features 8 commoned output points and integrates advanced diagnostics to ensure operational safety and integrity.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | 3611E |
| Nominal Voltage | 115 VAC |
| Voltage Range | 90-155 VAC |
| Frequency Range | 47-63 Hz |
| Points | 8, commoned |
| Maximum Switching Power | 2000 VA (resistive) |
| ON State Voltage Drop | < 2V (typical) |
| Maximum Current per Point | 2A per point, 10A/AC cycle |
| Minimum Required Load | 50 mA |
| Diagnostic Indicators | POINT, PWR, LOAD, PASS, FAULT, ACTIVE |
| Fuses (on Field Termination) | 1 per output (2.5A fast-acting) |
| Point Isolation | 1500 VDC minimum |
| Color Code | Deep Green |
| Dimensions | 114.3 ×127 × 107.95 mm |
| Weight | 1.5 kg |
Key Features and Benefits
-
Supervised Outputs: Provides fault coverage for the entire output system, ensuring reliability even in critical operations.
-
Advanced Diagnostics: Each channel is equipped with voltage and current loopback circuitry, which verifies the operation of each output switch and detects field faults such as loss of power or blown fuses.
-
Fault Detection: Detects open or missing loads, short circuits, and faults in the field wiring, ensuring that field problems are promptly addressed without impacting output performance.
-
Hot-Spare Capability: Supports hot-spare operation, allowing the replacement of faulty modules without system downtime.
-
High Reliability: The quadruplicated output switch design ensures maximum redundancy and operational integrity.
-
Compact and Robust Design: Built for harsh environments with high-quality isolation and resistance to electrical faults.
Applications
The 3611E Supervised Digital Output Module is ideal for use in critical control systems across various industries, including:
-
Oil & Gas: For systems requiring fail-safe outputs in pipelines and processing plants.
-
Nuclear Power: Ensures the reliability of safety shutdown systems.
-
Chemical and Petrochemical: Used in applications where output reliability is paramount for safety control.
-
Industrial Automation: Essential for controlling machinery and automated processes where downtime must be minimized.
Latest Reports and Developments
-
“Ensuring Safety in High-Risk Industries with the Triconex 3611E” – An industry report detailing how the 3611E module ensures continuous operations in hazardous environments.
-
“Maximizing System Uptime with Triconex Supervised Modules” – A case study showing the benefits of supervised digital outputs in mission-critical systems.
Recommendations for Related Models
Below are six models within the same series or with similar functionality:
| Model Number | Voltage | Points | Application | Key Feature |
|---|---|---|---|---|
| 3617E | 48 VDC | 8, commoned | Safety and Automation | Supervised, fault detection |
| 3623T | 120 VDC | 16, commoned | High Voltage Systems | Supervised, high-power switching |
| 3624 | 24 VDC | 16, commoned | Industrial Automation | Supports hot-spare functionality |
| 3601E | 115 VAC | 16, non-commoned | General Automation | Non-supervised, fault-tolerant design |
| 3604E | 24 VDC | 16, non-commoned | Flexible control systems | Low-voltage operation |
| 3664 | 24 VDC | 32, commoned | Critical Control Systems | Dual output, designed for safety |
Triconex Popular Models
| Model Number | Nominal Voltage | Output Signals | Diagnostic Features |
|---|---|---|---|
| 3601E | 115 VAC | 16, non-commoned | Load/Fuse monitoring |
| 3623/3623T | 120 VDC | 16, commoned | Hot-spare capability |
| 3617E | 48 VDC | 8, commoned | Supervised with diagnostic alarms |
| 3607E | 48 VDC | 16, non-commoned | Advanced diagnostics |
| 3664 | 24 VDC | 32, commoned | Dual output capability |
| 3636R | 24 VDC | 32, commoned | Relay output, normally open |
FAQ
Frequently Asked Questions (FAQ)
-
Q1: What is the typical application for the Triconex 3611E module?
A1: The 3611E is typically used in industrial and safety-critical systems such as nuclear power plants, oil refineries, and automated control systems where continuous output monitoring is critical. -
Q2: Can the 3611E module be used for AC and DC outputs?
A2: No, the 3611E module is designed specifically for 115 VAC applications. For DC applications, other models like the 3617E or 3623T should be used. -
Q3: How does the fault detection system in the 3611E work?
A3: The module uses voltage and current loopback circuitry to verify each output switch’s operation and checks for faults like power loss or short circuits in the connected field devices. -
Q4: Is there any redundancy built into the 3611E?
A4: Yes, the module features quadruplicated output switches for redundancy, ensuring fault tolerance and high reliability. -
Q5: What is the maximum current rating for each output point?
A5: The maximum current rating per output point is 2A with a 10A surge per AC cycle. -
Q6: Can the 3611E module be replaced while the system is running?
A6: Yes, the 3611E supports hot-spare functionality, allowing replacement of the module without system downtime. -
Q7: What type of diagnostics are available in the 3611E?
A7: The module provides comprehensive diagnostics, including monitoring of output status, load presence, power, and module status indicators for quick fault identification. -
Q8: How does the 3611E handle load faults?
A8: If a load is missing or a short circuit occurs, the module activates an alarm to indicate the fault, ensuring immediate corrective action.
