Technical Specifications
| Feature | Specification |
|---|---|
| Points | 6, channel-isolated, commoned ground |
| Input Type | Differential |
| Sensor Compatibility | Magnetic, active, open collector |
| Maximum Operating Voltage | ±33 V DC |
| Minimum Operating Voltage | Differential: 500 mV P-P, 2 Hz to 32,000 Hz; Single-ended: 1 V P-P, 2 Hz to 32,000 Hz |
| Speed Range | 0 to 32,000 RPM |
| Input Frequency Range | 0.5 Hz to 32 kHz |
| Duty Cycle | 20% to 80%, or 10 µs minimum pulse width |
| Maximum Continuous Slew Rate | 4,000 Hz/sec with 60 gear teeth |
| Maximum Continuous RPM Slew Rate | 4,000 RPM/sec with 60 gear teeth |
| Number of Gear Teeth | 1–255 |
| Termination Resistor | Baseplate configurable |
| Pull-up Resistor | Baseplate configurable |
| Resolution | 24 bits |
| Absolute Error | ±0.01%, 2,000 to 32,000 Hz; ±0.1%, 0.5 to 2,000 Hz |
| Measurement Algorithm | Gear multiple tracking |
| Minimum Scan Update Rate | 20 ms |
| Functional-to-Protective Earth Isolation | 500 V DC, minimum |
| Functional-to-Functional Earth Isolation | 800 V DC, minimum |
| Dimensions | 220 x 44 x 169 mm |
| Weight | 1.5 kg |
FAQ

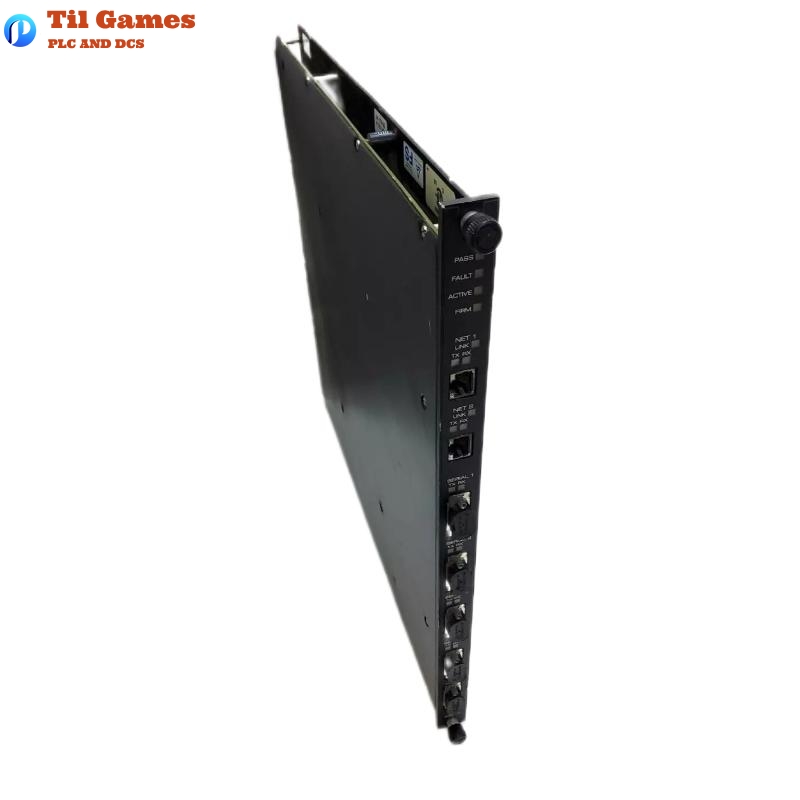

Triconex 3381 Pulse Input Module FAQ
Q1: What types of sensors are compatible with the 3381 Pulse Input Module?
A1: The 3381 Pulse Input Module is compatible with magnetic, active, and open collector sensors.
Q2: What is the input frequency range for the 3381 Pulse Input Module?
A2: The input frequency range is from 0.5 Hz to 32 kHz.
Q3: What is the resolution of the 3381 Pulse Input Module?
A3: The resolution is 24 bits.
Q4: How many input channels does the 3381 Pulse Input Module have?
A4: The 3381 Pulse Input Module has 6 input channels.
Q5: What is the maximum operating voltage of the 3381 Pulse Input Module?
A5: The maximum operating voltage is ±33 V DC.
Q6: Can the 3381 Pulse Input Module handle high-frequency signals?
A6: Yes, the module is designed for high-frequency operation with a maximum continuous slew rate of 4,000 Hz/sec.
Q7: What is the diagnostic feature of the 3381 Pulse Input Module?
A7: The module has a precision reference test and performs diagnostics to detect faults in the input channels, ensuring continuous monitoring.
Q8: What is the maximum number of gear teeth the 3381 Pulse Input Module can handle?
A8: The module can handle up to 255 gear teeth.
