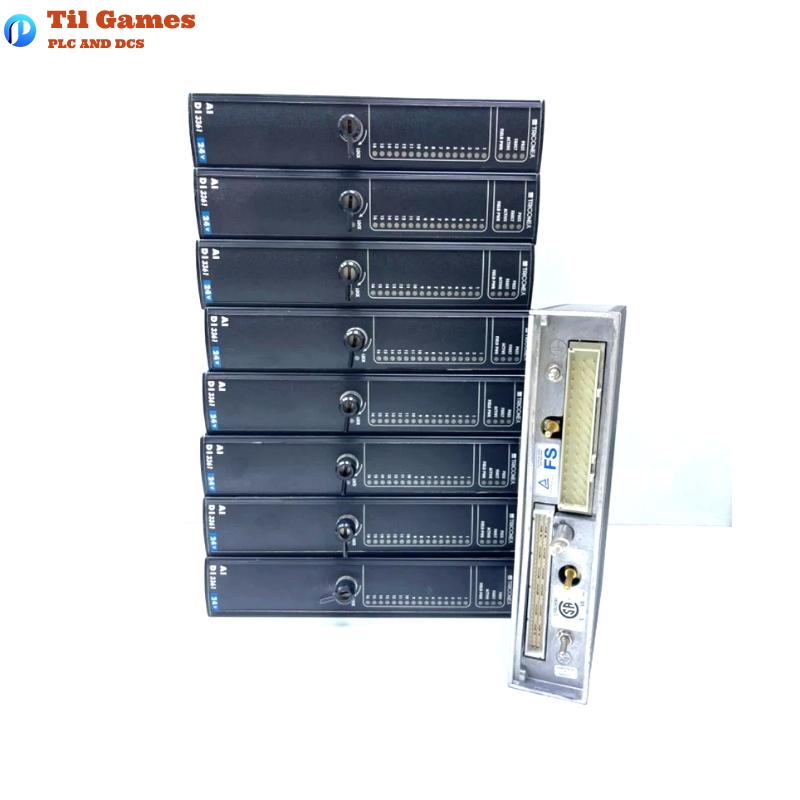

Technical Specifications – Triconex 3361 AI/DI Module
| Parameter | Specification |
|---|---|
| Module Type | Analog Input / Digital Input (AI/DI) |
| Total Input Channels | 32 (16 Digital Input: Points 1–16; 16 Analog Input: Points 17–32) |
| Channel Architecture | Triple Modular Redundant (TMR), 3 isolated channels per module |
| Digital Input Voltage (Nominal) | 0–24 VDC |
| Digital Input Operational Range | 15–30 VDC |
| Digital Input Absolute Max Voltage | 33 VDC |
| Digital Input Reverse Voltage | –0.6 VDC |
| Digital Input Impedance | >100 kΩ without baseplate; ~3 kΩ with baseplate |
| Digital Input Power Consumption | 0.2 W/point @ 24 VDC, 0.5 W/point @ 33 VDC |
| Digital Input Thresholds | 0–5 VDC = Off, 6–14 VDC = Transition, 15–30 VDC = On |
| Digital Input Diagnostic | Force-to-Value Diagnostic (FVD), <2 ms per test |
| Max Toggle Rate (DI) | <20 transitions/sec |
| Analog Input Nominal Signal | 4–20 mA DC |
| Analog Input Operational Range | 2–22 mA DC |
| Analog Input Absolute Max Voltage | 33 VDC |
| Analog Input Reverse Voltage | –0.6 VDC |
| Analog Input Impedance (with baseplate) | 250 Ω |
| Input Bandwidth (–3 dB) | 16 Hz |
| Resolution (AI) | 12 bits |
| Absolute Error (AI) | ±0.15% of full scale |
| Scan Time (AI/DI) | <1 ms for all 32 points |
| Isolation (Functional–Protective Earth) | 500 VDC minimum |
| Isolation (Functional–Logic Ground) | 800 VDC minimum |
| Diagnostic Capability | Continuous channel diagnostics with fault indication |
| Hot-Swap Support | Yes, hot-spare module supported |
| Dimensions (H x W x D) | 220 mm x 44 mm x 169 mm |
| Weight | 1.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many channels does the Triconex 3361 AI/DI module support?
A1: It supports 32 channels in total – 16 Digital Inputs (points 1–16) and 16 Analog Inputs (points 17–32).
Q2: What is the analog input range supported by this module?
A2: The analog input range is 4–20 mA nominal, with an operational range of 2–22 mA DC.
Q3: Can this module be hot-swapped during operation?
A3: Yes, the 3361 AI/DI Module supports hot-spare functionality, allowing online replacement without system interruption.
Q4: What diagnostic features are integrated in the module?
A4: It uses Force-to-Value Diagnostics (FVD) for both analog and digital channels. Faults are detected at the channel level, not the entire module.
Q5: What is the input impedance for analog inputs?
A5: The input impedance is 250 ohms when used with the appropriate baseplate.
Q6: What is the resolution and accuracy of analog input readings?
A6: The resolution is 12 bits, and the absolute error is ±0.15% of full scale (20 mA).
Q7: Is the module safe for use in high-reliability environments?
A7: Yes, it features Triple Modular Redundancy (TMR) with complete diagnostics, ensuring continued operation even in the presence of single or some multiple faults.
Q8: What are the module’s dimensions and weight?
A8: The module dimensions are 220 mm (H) × 44 mm (W) × 169 mm (D) and it weighs 1.5 kg.
