Technical Specifications
| Parameter | Specification |
|---|---|

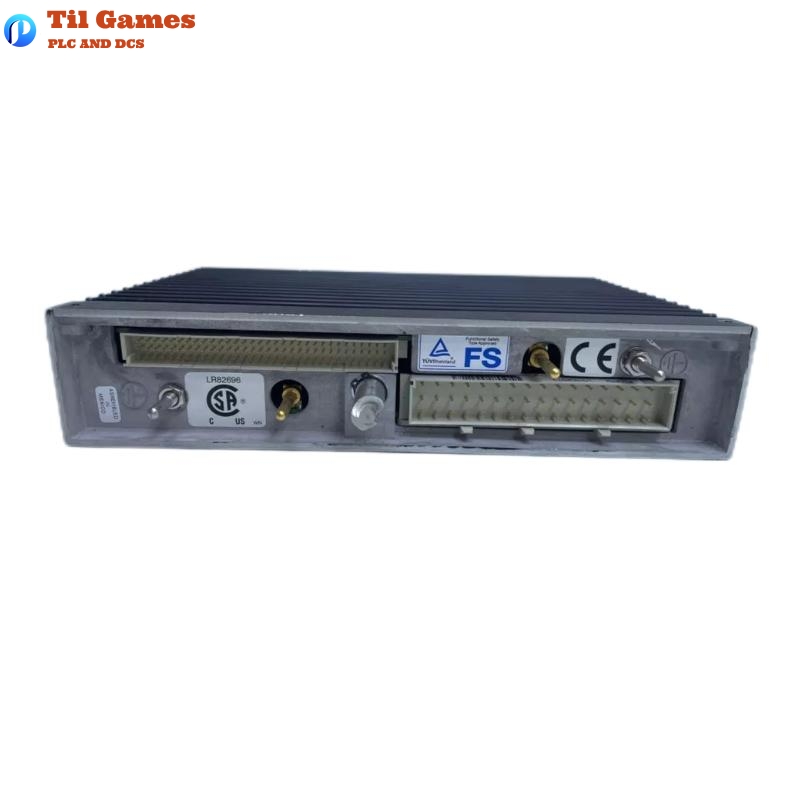

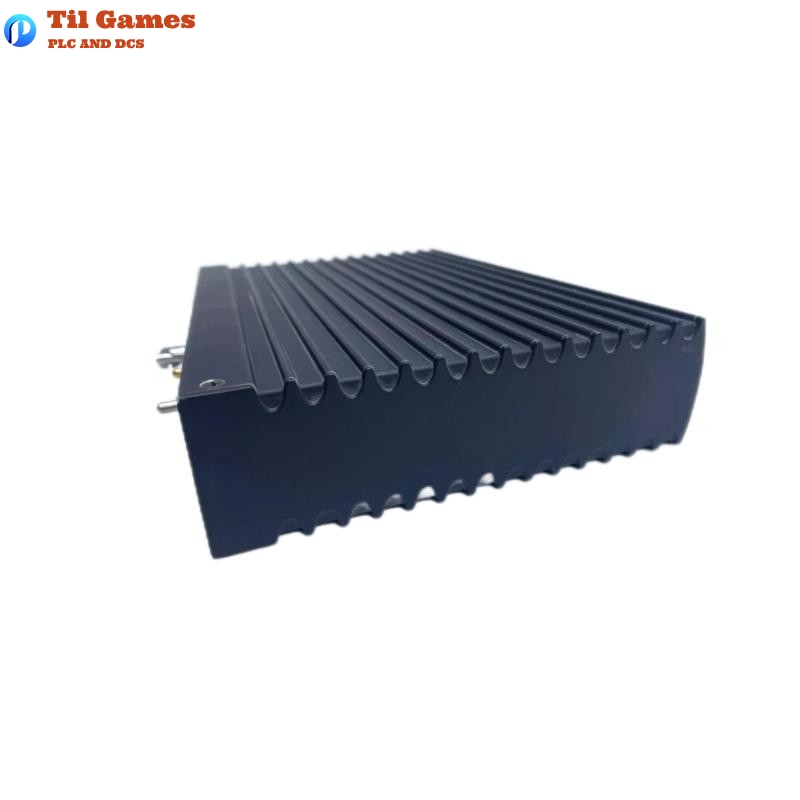

| Model | 3351S2 |
| Input Type | Analog Current (4–20 mA) |
| Input Channels | 32 channels (commoned inputs) |
| Input Range | 4–20 mA (supports 6% over-range) |
| Calibration | Factory-calibrated for life; no manual calibration required |
| Self-Diagnostics | Integrated; detects stuck-at faults in < 500 ms (typical) |
| Voting Method (TMR) | Mid-value selection used in TMR mode |
| Voting Method (Duplex) | Average value used in Duplex mode |
| Redundancy | Supports hot-spare configuration |
| Bus Interface | Triplicated RS-485 I/O bus (2 Mbps HDLC) |
| Power Supply | Redundant 24 VDC sources |
| Mounting | Installed on Model 2351 Baseplate |
| LED Indicators | PASS, FAULT, ACTIVE, FIELD POWER |
| Operating Temperature | 0°C to 60°C (extended -20°C to +70°C) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10% to 95% non-condensing |
| Dimensions (W x H x D) | 166.7 x 247.9 x 62.4 mm |
| Weight | 1.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the 3351S2 module accept?
A1: The module accepts 4–20 mA analog current signals on all 32 input channels.
Q2: Is manual calibration required for the 3351S2?
A2: No. The module is factory-calibrated and guaranteed to remain in calibration for the life of the product.
Q3: Can the 3351S2 operate with a hot-spare module?
A3: Yes. It fully supports a hot-spare configuration, allowing automatic failover in the event of a module fault.
Q4: What diagnostic features are included in the 3351S2?
A4: It includes built-in self-test circuitry that detects stuck-at and accuracy faults typically in less than 500 milliseconds.
Q5: How does the Trident system handle input signal discrepancies in TMR mode?
A5: The system uses a mid-value voting algorithm across the three channels to ensure reliability and safety.
Q6: What is the input bus type used by the 3351S2?
A6: It uses a triplicated RS-485 I/O bus operating at 2 Mbps with HDLC protocol for data integrity.
Q7: Does the module have any visual fault indicators?
A7: Yes. The front panel includes LED indicators for PASS, FAULT, ACTIVE, and FIELD POWER conditions.
Q8: What is the operating temperature range for the 3351S2?
A8: The standard operating range is 0°C to 60°C, with extended support from -20°C to +70°C.
