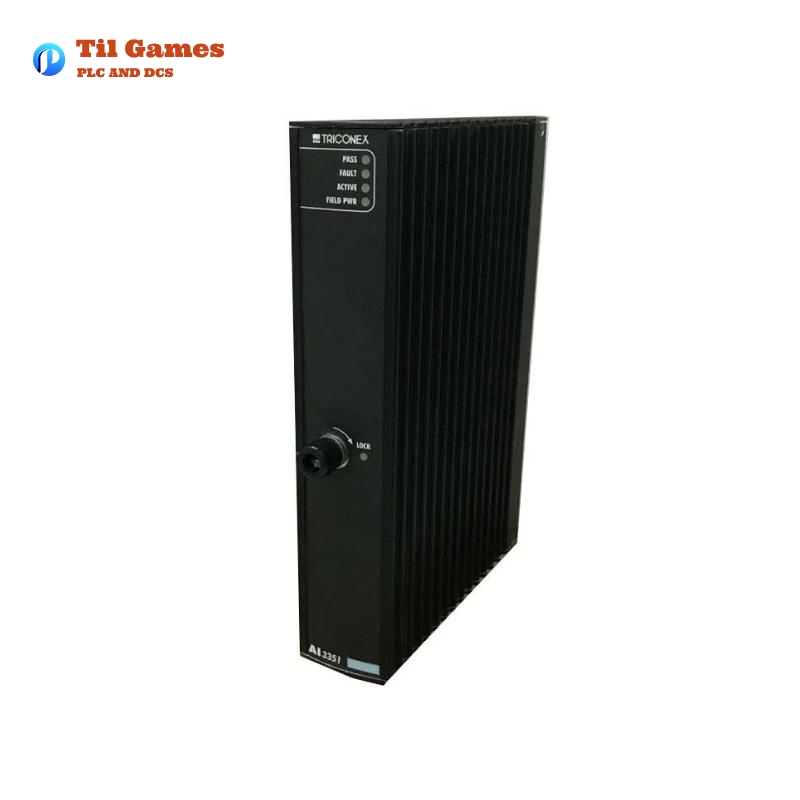

Product Introduction:
The Triconex 3351 Analog Input Module is a high-performance module designed for industrial automation and safety systems. It features three independent input channels that convert variable voltage signals into digital values. These values are transmitted to the system’s three MPs (Microprocessor Units) as needed, with a mid-value selection algorithm ensuring that data integrity is maintained. This module is equipped with fault detection for each input channel and is capable of continuous operation even if one or more channels fail, making it ideal for critical applications requiring high availability and reliability. Hot sparing support allows for online replacement of faulty modules, ensuring uninterrupted operation.
Applications:
- Process control systems
- Safety critical applications
- Industrial automation systems
- Oil & Gas, Chemical, Power, and Petrochemical industries
- Systems requiring high availability and fault tolerance
Product Advantages:
- Reliability: Continuous diagnostics ensure fault detection on each channel. The module continues to operate normally despite faults, providing high system availability.
- Fault Tolerance: The system allows operation with single or multiple faults without compromising functionality.
- Hot Sparing: Facilitates easy and uninterrupted replacement of faulty modules without shutting down the system.
- Scalable: Multiple modules can be deployed in the system to accommodate more inputs as required.
- Error Detection: Fault indicators point to specific channel failures, enabling precise troubleshooting.
- Mechanical Keying: Prevents improper installation by ensuring the module can only be installed in the correct baseplate.
Product Specifications:
| Parameter | Value |
|---|---|
| Points | 32, commoned |
| Nominal Input Current | 4–20 mA DC |
| Operational Current Range | 2–22 mA DC |
| Absolute Maximum Field Voltage | 33 V DC |
| Absolute Maximum Reverse Voltage | –0.6 V DC |
| Absolute Maximum Input Current | 50 mA DC |
| Input Bandwidth (3dB) | 16 Hz |
| Source Impedance | 180 Ω |
| Input Impedance | 250 Ω (with baseplate) |
| I to V Resistor | 100 Ω, ±0.01% |
| Resolution | 12 bits |
| Absolute Error | 0.15% of full scale (20 mA) |
| Diagnostic Type | Force-to-value diagnostic (FVD) |
| Scan Time | <1 ms for all 32 points |
| Functional-to-Protective-Earth Isolation | 500 V DC, minimum |
| Functional-to-Functional-Earth Isolation (Logic) | 800 V DC, minimum |
| Module Dimensions | 166.7 x 247.9 x 62.4 mm |
| Module Weight | 1.4 kg |
Related Models (Triconex 3351 Series or Similar):
| Model | Key Features | Applications | Nominal Input Current | Weight |
|---|---|---|---|---|
| Triconex 3351 | Analog Input, 32 points, fault tolerance | Process control, automation | 4–20 mA DC | 1.4 kg |
| Triconex 3311 | Digital Input, 32 points, high-speed processing | Safety systems, automation | N/A | 1.3 kg |
| Triconex 3301 | Digital Input Module, 16 points, redundant | Process safety, alarms, shutdowns | N/A | 1.2 kg |
| Triconex 3201 | Communication Module, network interface | System connectivity, remote monitoring | N/A | 1.6 kg |
| Triconex 3801 | Analog Output, 8 points, precise control | Control systems, precision devices | 4–20 mA DC | 1.5 kg |
| Triconex 3101 | Digital Output, 16 points, fail-safe operation | Safety shutdown systems | N/A | 1.2 kg |
| Triconex 3401 | Relay Output Module, robust design | Industrial control, safety measures | N/A | 1.4 kg |
| Triconex 3361 | High-performance AI, 16 channels, fast response | Industrial automation, process control | 4–20 mA DC | 1.4 kg |
| Triconex 3051 | Safety Input Module, 32 points, high reliability | Critical system monitoring | 4–20 mA DC | 1.5 kg |
| Triconex 3363 | Mixed Signal Input, 8 channels, highly precise | Advanced control systems | 4–20 mA DC | 1.6 kg |
Popular Triconex Models:
| Model | Key Features | Applications | Nominal Input Current | Weight |
|---|---|---|---|---|
| Triconex 3008 | Safety system input, robust diagnostics | Safety-critical control | 4–20 mA DC | 1.4 kg |
| Triconex 3200 | Communication hub for Triconex systems | Network, system communication | N/A | 1.5 kg |
| Triconex 3400 | Digital relay, fast processing | Industrial automation | N/A | 1.3 kg |
| Triconex 3111 | Input module, safety-rated | Emergency shutdown systems | 4–20 mA DC | 1.2 kg |
| Triconex 3521 | Dual Analog Input, dual channel redundancy | Safety systems, backup | 4–20 mA DC | 1.6 kg |
| Triconex 3300 | Power output module, high-current capacity | Industrial machinery, process control | N/A | 1.7 kg |
| Triconex 3050 | Multi-functional input-output, high versatility | Power plant, chemical plants | 4–20 mA DC | 1.4 kg |
| Triconex 3600 | Mixed signal, universal input-output | Process control, monitoring systems | 4–20 mA DC | 1.6 kg |
| Triconex 3210 | I/O module for large-scale applications | Complex systems control | N/A | 1.5 kg |
| Triconex 3112 | Fail-safe I/O module, comprehensive diagnostics | Safety, critical alarms | 4–20 mA DC | 1.4 kg |
FAQ
Frequently Asked Questions (FAQ):
Q1: What is the typical application of the Triconex 3351 AI Module?
A1: The Triconex 3351 AI Module is used primarily in process control systems and safety-critical applications, such as oil & gas, chemical, and power generation industries.
Q2: Can the module function with a single channel failure?
A2: Yes, the module can continue to operate normally even with a single channel failure, making it highly reliable for critical applications.
Q3: How does the diagnostic system work in the AI Module?
A3: Each channel of the AI Module is continuously monitored for faults. If any issues are detected, a fault indicator is activated, pointing directly to the affected channel.
Q4: What is the input current range for the AI Module?
A4: The operational current range for the Triconex 3351 is between 2–22 mA DC, with a nominal input of 4–20 mA DC.
Q5: How fast is the scan time for this module?
A5: The scan time for the Triconex 3351 is less than 1 ms for all 32 input points, ensuring fast and accurate data processing.
Q6: Can the Triconex 3351 be hot swapped?
A6: Yes, the module supports hot sparing, which allows for the replacement of a faulty module without interrupting the system operation.
Q7: What is the diagnostic force-to-value diagnostic (FVD)?
A7: FVD is a diagnostic method where the module forces specific values to inputs to test for faults in the system and confirm operational integrity.
Q8: How does the mechanical keying feature work?
A8: The mechanical keying ensures that the module can only be installed in the correct baseplate, preventing improper installation.
Q9: What is the fault tolerance of the Triconex 3351 module?
A9: The module is designed to continue functioning properly with one or more faulty channels, ensuring that the system can still operate safely.
Q10: What are the isolation capabilities of the Triconex 3351?
A10: The module provides 500 V DC minimum isolation between functional and protective earth, and 800 V DC isolation between functional earth and logic earth.
