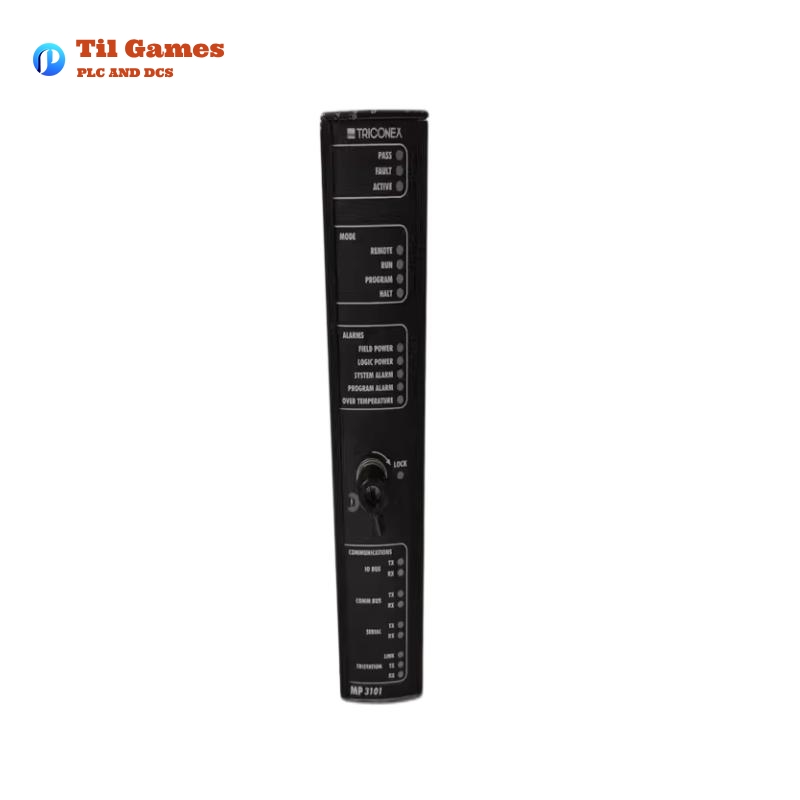

Triconex 3101 Main Processor Module

Triconex 3101 Main Processor Module

Manufacturer:Triconex

Product Number:3101

Product Type:Main Processor Module

Origin:USA

Dimensions:228 x 248.7 x 31.3 mm

Weight:1.5 kg

Views:23

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/3101.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Triconex-3101-3-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Triconex-3101-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/Triconex-3101-2.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The Triconex 3101 Main Processor Module is a core component of the Trident controller system, designed for high-integrity industrial automation and safety-critical applications. It employs Triple Modular Redundant (TMR) architecture to ensure fault tolerance, continuous operation, and seamless error correction. This module executes control applications, manages I/O communications, and performs real-time diagnostics to maintain system reliability in harsh environments.


Key Parameters

Parameter Specification
Processor Motorola MPC860, 32-bit, 50 MHz (Application & I/O Processors)
Memory 16 MB DRAM, 6 MB Flash PROM, 8 KB NVRAM
Communication Ports 1x 10BaseT Ethernet (TriStation), 1x Modbus RS-232/485, 1x Debug Port (RJ-12)
Power Supply 24 V DC (±15%/+20%), 8 W max logic power
Operating Temperature 0°C to 60°C (32°F to 140°F)
Dimensions 228 x 248.7 x 31.3 mm
Weight 3.4 lbs (1.5 kg)
Alarm Contacts 2 redundant pairs, 0.5 A max @ 30 V DC
Certifications CSA, FM, CE Mark, TÜV Rheinland SIL 3, SEMI S2

Product Applications

  • Industrial Safety Systems: Emergency shutdown (ESD), fire and gas detection.
  • Process Control: Continuous monitoring in oil & gas refineries, chemical plants.
  • Power Generation: Turbine control, grid stability management.
  • Manufacturing: High-availability automation in semiconductor production.
  • Transportation: Railway signaling, critical infrastructure protection.

Product Advantages

  • Fault Tolerance: TMR architecture eliminates single-point failures through triplicated channels.
  • Online Maintenance: Hot-swappable modules enable repairs without process interruption.
  • Robust Diagnostics: Real-time health monitoring via LEDs and TriStation software.
  • Redundant Power: Dual 24 V DC inputs ensure uninterrupted operation.
  • Compliance: Meets global safety standards (SIL 3, ATEX, IEC 61508).

Latest News Headlines

  1. “Triconex 3101 Enhances Offshore Oil Rig Safety with SIL 3 Certification”
  2. “Industry Leaders Adopt Triconex TMR Technology for Smart Grid Resilience”
  3. “New Firmware Update Extends 3101 Module Lifespan to 15 Years”
  4. “Triconex Partners with Siemens for Integrated Industrial IoT Solutions”

Recommended Related Models

Model Type Key Parameters
3201 Communication Module 3x RS-232/485 ports, 2x Ethernet, 8 W logic power
3351 Analog Input Module 32 points, 4–20 mA, 3 W logic power
3401 Digital Output Module 16 points, 24 V DC, 3 W logic power
3381 Pulse Input Module 6 points, 0.5 Hz–32 kHz, 3 W logic power
3481 Analog Output Module 4 points, 4–20 mA, 3 W logic power
3451 Relay Output Module 32 points, 24 V DC, 3 W logic power
2101 MP Baseplate DIN-rail mount, 2.7 lbs (1.2 kg)
2201 CM Baseplate Supports dual CMs, 2.8 lbs (1.3 kg)
2291 I/O Extender Kit Includes terminators, 0.4 lbs (0.2 kg)
9764-310 RTD/TC Termination Panel 16 points, 24 V DC, 2.1 lbs (1.0 kg)

Top 10 Popular Triconex Models

Model Type Key Parameters
Tricon V11 Safety Controller TMR architecture, 100+ I/O, 19″ rack mount
3503E Digital Input Module 32 points, 24 V DC, 3 W logic power
3700A Analog Input Module 16 points, 4–20 mA, HART protocol
4351B Safety Manager SIL 3 certified, 10/100 Ethernet
3625T Thermocouple Module 16 points, Type J/K/T, 3 W logic power
3805E Communication Module Modbus TCP, OPC UA, 8 W logic power
3101 Main Processor MPC860, 16 MB DRAM, 3.4 lbs (1.5 kg)
3301 Digital Input Module 32 points, 24 V DC, 3 W logic power
4200 Power Supply 24 V DC redundant, 125 W max
9012 System Cabinet 19″ rack, 50 lbs (22.7 kg), IP54 rated
FAQ

FAQ (Q&A)

Q1: How do I replace a faulty 3101 module without shutting down the system?
A1: Use the hot-spare slot. Insert the replacement module, wait for diagnostics (5 mins), then remove the faulty unit.

Q2: What is the maximum cable length for the Modbus RS-485 port?
A2: 1.2 km (4,000 ft) with 24 AWG twisted-pair cable; termination resistors required beyond 6 meters.

Q3: Can the 3101 operate in extreme temperatures?
A3: Yes, it supports -20°C to +70°C (-4°F to +158°F) with extended temperature firmware.

Q4: How do I troubleshoot a blinking Fault LED?
A4: Check TriStation Diagnostic Panel for error codes. Common issues include power fluctuations or I/O bus faults.

Q5: Is the 3101 compatible with legacy Tricon systems?
A5: Yes, via Triconex Peer-to-Peer protocol using Communication Modules (e.g., 3201).

Q6: What is the lifespan of the onboard battery?
A6: 15 years under normal conditions (retains NVRAM during power loss).

Q7: How do I configure OVD for Digital Output Modules?
A7: Use TriStation 1131 to enable/disable Output Voter Diagnostics per point.

Q8: Can I daisy-chain multiple I/O columns?
A8: Yes, using I/O Extender Kits (e.g., 2291) with a maximum bus length of 200 meters.

Q9: What certifications does the 3101 hold for hazardous areas?
A9: FM Class I Div 2, ATEX Zone 2, and IECEx for explosive environments.

Q10: How do I update firmware on the 3101?
A10: Download the firmware file via TriStation and use the Debug Port (RJ-12) for installation.
