Technical Specifications
| Parameter | Description |
|---|---|

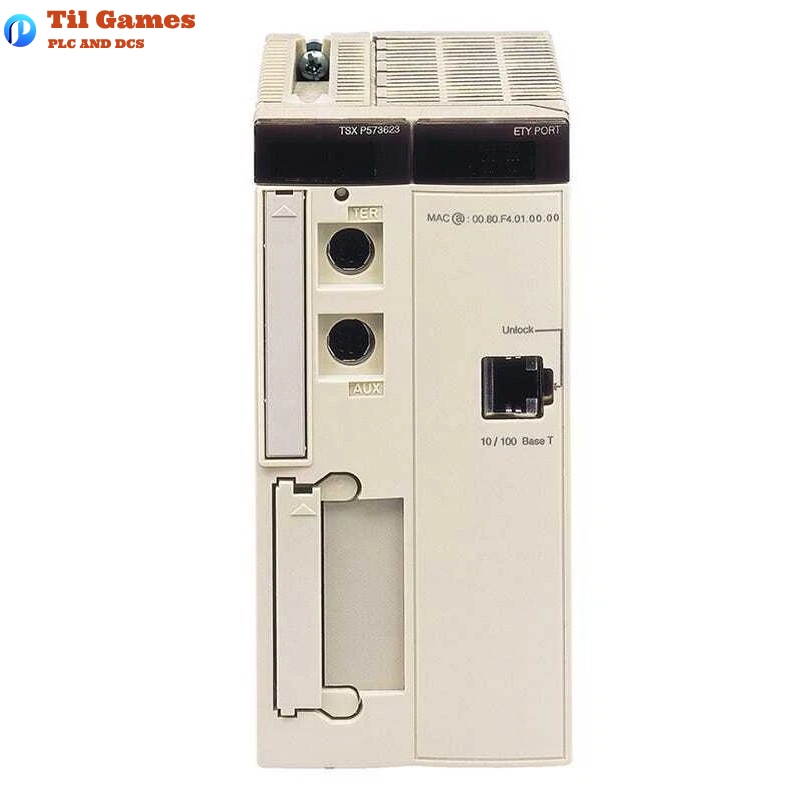

| Range of Product | Modicon Premium Automation platform |
| Product Type | Double-format PL7 Processor |
| Software Designation | PL7 Junior / Pro |
| Concept | Transparent Ready |
| Number of Racks Supported | 16 (4/6/8 slots), 8 (12 slots) |
| Total Number of Slots | 64, 96, 128 |
| Discrete I/O Processor Capacity | 1024 I/O |
| Analogue I/O Processor Capacity | 128 I/O |
| Application Specific Channels | 32 |
| Process Control Channels | 15 to 45 simple loops |
| Integrated Communication | Ethernet TCP/IP RJ45 (10/100 Mbps), Non-isolated serial link (2x mini DIN) |
| Communication Module Support | 1 fieldbus module (1 if CANopen used), 8 AS-Interface bus modules |
| 2 fieldbus modules, 2 network modules | |
| Memory – Internal RAM (no PCMCIA) | 64 Kwords program and data |
| Memory – Internal RAM (w/ PCMCIA) | 80 Kwords data |
| PCMCIA Card Support | 384 Kwords program, 2688 Kwords additional data |
| Max Size of Object Areas | 16384 %Mi (internal bits), 30.5 %MWi (internal words), 32 %KWi (constant words) |
| Application Task Structure | 1 master task, 1 fast task, 64 event tasks |
| Execution Time per Instruction | Boolean: 0.12 µs (no card), 0.17 µs (with card) |
| Word/fixed-point: 0.17 µs (no card), 0.33 µs (with card) | |
| Floating-point: 2.5 µs (no card), 2.6 µs (with card) | |
| Instructions per ms | 6.57 Kinst/ms (100% Boolean, no card) |
| 4.7 Kinst/ms (65% Boolean, 35% fixed, no card) | |
| 4.49 Kinst/ms (100% Boolean, with card) | |
| 3.08 Kinst/ms (65% Boolean, 35% fixed, with card) | |
| System Overhead | 1.15 ms master task, 0.29 ms fast task |
| Local Signaling LEDs | RUN (green), ERR (red), I/O (red), COL (red), STS (yellow), TER (yellow), |
| RX (yellow), TX (yellow) | |
| Current Consumption | 1360 mA at 5 V DC |
| Module Format | Double format |
| Product Net Weight | 0.76 kg (1.68 lb) |
| Package Dimensions | 95 x 180 x 260 mm |
| Standards | IEC 61131-2, UL 508, CSA C22.2 No. 142 / No. 213 Class I Div 2 (Groups A–D), |
| 73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC | |
| Certifications | RINA, BV, ABS, DNV, RMRS, GL, LR |
| Protection Degree | IP20 |
| Pollution Degree | 2 |
| Ambient Operating Temperature | 0…60 °C (32…140 °F) |
| Ambient Storage Temperature | -25…70 °C (-13…158 °F) |
| Relative Humidity for Operation | 10…95% non-condensing |
| Relative Humidity for Storage | 5…95% non-condensing |
| Operating Altitude | 0…2000 m (0…6561.68 ft) |
| Protective Treatment | TC |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of memory expansion is available for the TSXP573623 processor?
A1: The processor supports PCMCIA memory expansion with up to 384 Kwords for programs and 2688 Kwords for additional data storage.
Q2: How many discrete and analog I/O points does the TSXP573623 support?
A2: It supports up to 1024 discrete I/O points and 128 analog I/O points.
Q3: What communication interfaces are integrated into the TSXP573623?
A3: It includes Ethernet TCP/IP via RJ45 (10/100 Mbps) and two non-isolated serial mini-DIN ports (19.2–115 kbps).
Q4: What is the maximum number of slots and racks supported?
A4: The processor can handle up to 128 slots across multiple racks (up to 16 racks with 4/6/8 slots and 8 racks with 12 slots).
Q5: What is the Boolean execution time without and with the PCMCIA card?
A5: Without the card, Boolean instructions execute in 0.12 µs; with the card, execution time is 0.17 µs.
Q6: Does this model support event-based task execution?
A6: Yes, the TSXP573623 supports up to 64 event tasks in addition to 1 master task and 1 fast task.
Q7: What is the operating temperature range for the TSXP573623 processor?
A7: The processor operates within a temperature range of 0 to 60 °C (32 to 140 °F).
Q8: What are the key certifications for marine or industrial use?
A8: The unit is certified by ABS, BV, DNV, GL, LR, RINA, and RMRS, making it suitable for marine and industrial applications.
