Technical Specifications
| Parameter | Description |
|---|---|

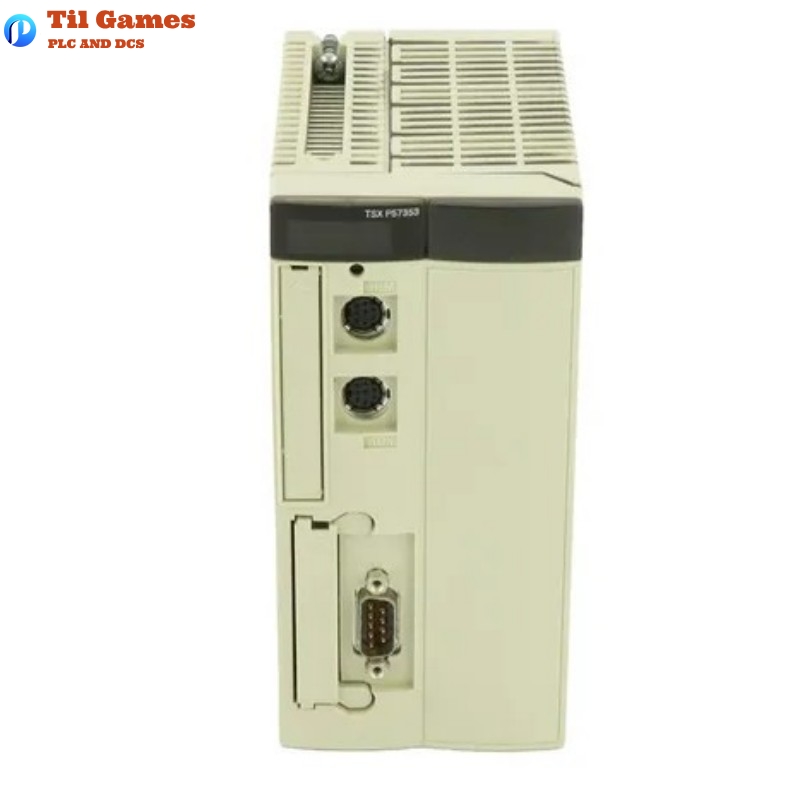

| Product Model | TSXP57353M |
| Product Family | Modicon TSX Premium PLC |
| Processor Type | Double Format CPU |
| Programming Software | PL7 |
| Memory Capacity (User Program) | 384 Kbytes |
| Internal RAM | 384 Kbytes |
| Backplane Compatibility | TSX Premium Rack System |
| Number of Racks Supported | Up to 4 racks |
| Communication Ports | 1 x RS232 (TER), 1 x RS485 (AUX), 1 x Ethernet (Integrated) |
| Ethernet Protocols Supported | Modbus TCP/IP, ISO on TCP, UNI-TE |
| Cycle Time | 0.15 ms per Kinst |
| Instruction Set | Compact, full-featured instruction set |
| Real-Time Clock | Integrated |
| Battery Backup | Yes (for RAM and clock) |
| LED Indicators | Yes (for CPU status, I/O activity, etc.) |
| Power Supply Voltage | 5 V DC (via rack backplane) |
| Mounting Type | Rack-mounted |
| Package Dimensions (L x W x H) | 95 x 180 x 260 mm |
| Package Weight | 0.56 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum memory capacity supported by the TSXP57353M processor?
A1: The TSXP57353M supports a maximum user program memory of 384 Kbytes.
Q2: Which programming environment is compatible with the TSXP57353M?
A2: The processor is compatible with Schneider Electric’s PL7 programming software.
Q3: Does the TSXP57353M include integrated Ethernet communication?
A3: Yes, it includes an integrated Ethernet port supporting Modbus TCP/IP and other protocols.
Q4: Can the TSXP57353M operate across multiple racks?
A4: Yes, it supports up to four racks within a TSX Premium PLC configuration.
Q5: What type of communication ports are available on the TSXP57353M?
A5: The module provides RS232 (TER), RS485 (AUX), and Ethernet ports for communication.
Q6: Is there a battery backup for RAM and clock functions?
A6: Yes, the TSXP57353M includes a battery to maintain RAM and real-time clock data during power loss.
Q7: What is the instruction execution speed of this processor?
A7: The execution speed is approximately 0.15 milliseconds per Kinst.
Q8: How is the TSXP57353M processor mounted in a system?
A8: The processor is designed for rack-mounted installation within the TSX Premium backplane.
