Technical Specifications
| Parameter | Specification |
|---|---|

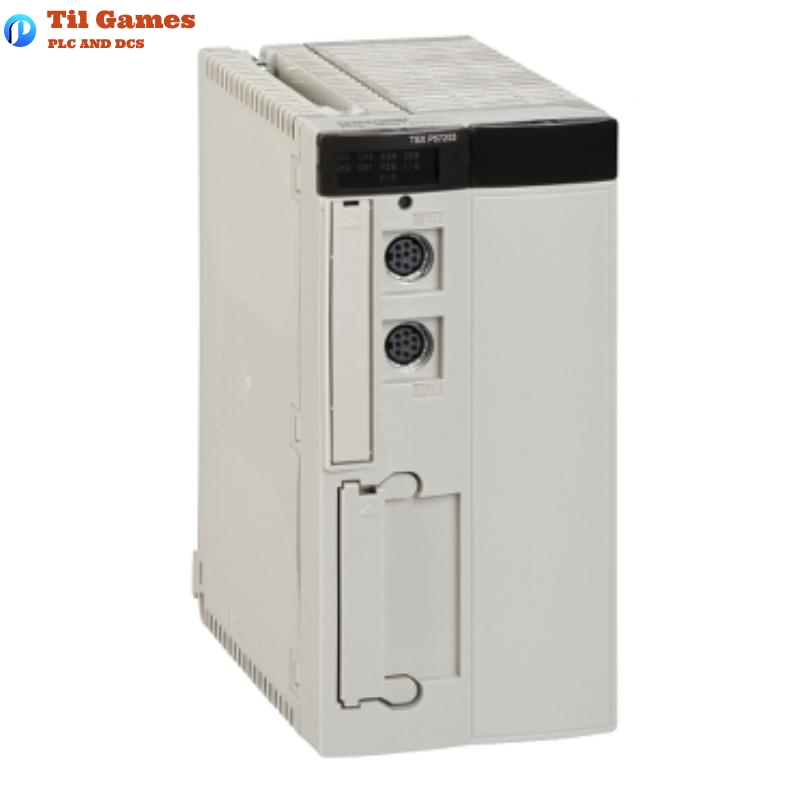

| Range of Product | Modicon Premium Automation Platform |
| Product Type | Double-format PL7 Processor |
| Software Compatibility | PL7 Junior / PL7 Pro |
| Number of Racks Supported | 16 (4/6/8-slot racks), 8 (12-slot racks) |
| Maximum Number of Slots | 96 / 64 / 128 |
| Discrete I/O Capacity | 1024 I/O |
| Analog I/O Capacity | 128 I/O |
| Application Specific Channels | 32 |
| Process Control Channels | 15 up to 45 simple loops |
| Integrated Connection Types | Fipio manager (127 agents), SUB-D 9 connector |
| Non-isolated serial link (2 female mini DIN connectors, 19.2/115 kbit/s) | |
| Fieldbus Communication Capacity | 2 fieldbus modules (1 if CANopen used), 8 AS-Interface bus modules, 1 CANopen |
| Network Modules Supported | 3 network modules |
| Memory – Internal RAM (with PCMCIA) | 96 Kwords data |
| Memory – Internal RAM (w/o PCMCIA) | 80 Kwords program and data |
| Memory – PCMCIA Card | 384 Kwords program, 2688 Kwords additional data storage |
| Maximum Internal Bits (%Mi) | 16384 |
| Maximum Internal Words (%MWi) | 30.5 |
| Maximum Constant Words (%KWi) | 32 |
| Application Task Structure | 1 master task, 1 fast task, 64 event tasks |
| Execution Time (Boolean – No PCMCIA) | 0.12 µs |
| Execution Time (Boolean – PCMCIA) | 0.17 µs |
| Execution Time (Fixed Point – No PCMCIA) | 0.17 µs |
| Execution Time (Fixed Point – PCMCIA) | 0.33 µs |
| Execution Time (Floating Point – PCMCIA) | 2.6 µs |
| Execution Time (Floating Point – No PCMCIA) | 2.5 µs |
| Instruction Rate – Mixed (PCMCIA) | 3.08 Kinst/ms (65% Boolean + 35% Fixed Point) |
| Instruction Rate – Boolean (PCMCIA) | 4.49 Kinst/ms |
| Instruction Rate – Mixed (No PCMCIA) | 4.7 Kinst/ms (65% Boolean + 35% Fixed Point) |
| Instruction Rate – Boolean (No PCMCIA) | 6.57 Kinst/ms |
| System Overhead – Fast Task | 0.29 ms |
| System Overhead – Master Task | 1.15 ms |
| Local Signaling LEDs | RUN (green), FIP (red), I/O fault (red), ERR (red), Terminal activity (yellow) |
| Current Consumption | 1060 mA at 5 V DC |
| Module Format | Double Format |
| Net Weight | 0.56 kg |
| Package Dimensions | 95 x 180 x 260 mm |
| Protection Rating | IP20 |
| Pollution Degree | 2 |
| Protective Treatment | TC |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -25 to 70 °C |
| Relative Humidity (Operating) | 10% to 95% (non-condensing) |
| Relative Humidity (Storage) | 5% to 95% (non-condensing) |
| Operating Altitude | 0 to 2000 m |
| Conformance Standards | IEC 61131-2, UL 508, CSA C22.2 No 142, 73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC |
| Hazardous Location Approvals | CSA C22.2 No 213 Class I Div 2 Groups A, B, C, D |
| Certifications | CE, DNV, LR, BV, GL, RMRS, ABS, RINA |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the main difference between using the processor with and without a PCMCIA card?
A1: Using a PCMCIA card provides additional program and data memory, improving floating-point instruction execution times and increasing total storage capacity.
Q2: How many I/O points can the TSXP57353AM processor handle?
A2: It can handle up to 1024 discrete I/O points and 128 analog I/O points.
Q3: What types of fieldbus communication modules are supported?
A3: The processor supports 2 fieldbus modules (1 if CANopen is used), 8 AS-Interface bus modules, and 1 CANopen module.
Q4: Does the TSXP57353AM support event-driven tasks?
A4: Yes, it supports up to 64 event tasks in addition to 1 master and 1 fast task.
Q5: What are the system overhead values for fast and master tasks?
A5: The system overhead is 0.29 ms for the fast task and 1.15 ms for the master task.
Q6: What are the maximum object areas for internal and constant data?
A6: The processor supports 16384 internal bits (%Mi), 30.5 internal words (%MWi), and 32 constant words (%KWi).
Q7: What kind of environment is this processor rated for?
A7: It operates from 0 to 60 °C with 10–95% relative humidity (non-condensing) and up to 2000 m altitude. It’s also rated for IP20 protection with pollution degree 2.
Q8: Is the TSXP57353AM certified for marine or hazardous location applications?
A8: Yes, it holds certifications from DNV, LR, BV, GL, RMRS, ABS, and RINA, and complies with CSA Class I Division 2 hazardous location standards.
