Technical Specifications
| Parameter | Details |
|---|---|

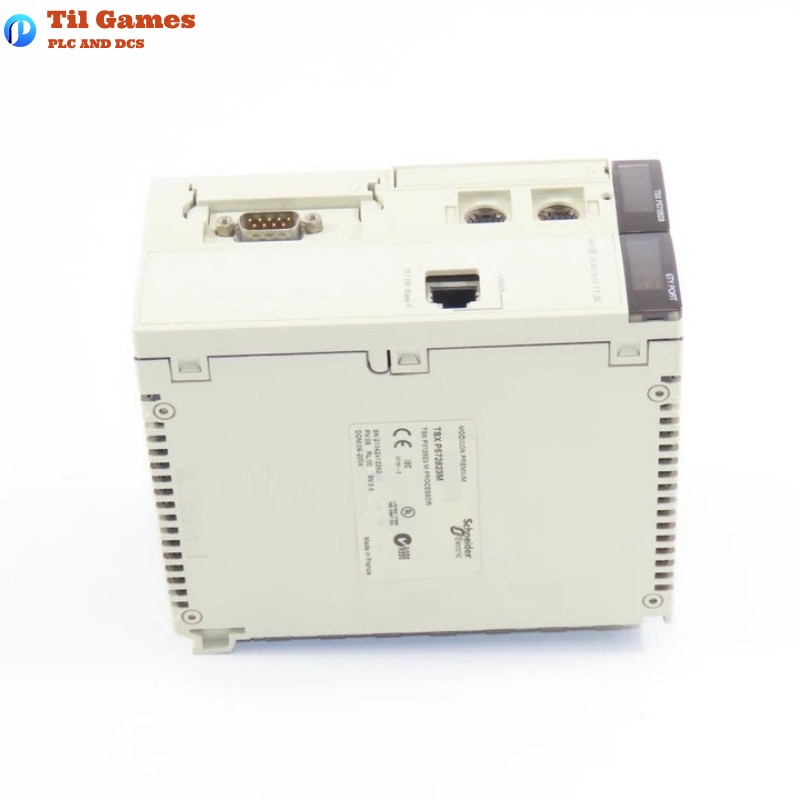

| Product Name | TSXP572823M |
| Product Range | Modicon Premium Automation Platform |
| Product Type | Double-format PL7 Processor |
| Software Compatibility | PL7 Junior / PL7 Pro |
| System Concept | Transparent Ready |
| Number of Racks Supported | 16 (4/6/8-slot racks) or 8 (12-slot racks) |
| Maximum Number of Slots | 64 / 96 / 128 |
| Discrete I/O Capacity | 1024 I/O |
| Analog I/O Capacity | 80 I/O |
| Application-Specific Channels | 24 |
| Process Control Channels | 10 to 30 simple loops |
| Integrated Communication Ports | – Non-isolated Serial Link (2 mini-DIN, 19.2 kbps) |
| – Fipio Manager (SUB-D 9, supports 127 agents) | |
| – Ethernet TCP/IP (RJ45, 10/100 Mbps) | |
| Fieldbus Communication Support | – 1 Fieldbus Module (not used with CANopen) |
| – 4 AS-Interface Bus Modules | |
| – 1 CANopen | |
| Memory (Internal/PCMCIA) | – 64 Kwords internal RAM (with or without card) |
| – 160 Kwords program on PCMCIA | |
| – 2688 Kwords additional data on PCMCIA | |
| Object Area Size Limits | – 30.5% MWi internal words |
| – 32% KWi constant words | |
| – 8132% Mi internal bits | |
| Application Task Structure | – 64 event tasks |
| – 1 fast task | |
| – 1 master task | |
| Instruction Execution Time | – 0.19 µs Boolean (no card) |
| – 0.21 µs Boolean (with card) | |
| – 0.25 µs word/fixed-point (no card) | |
| – 0.42 µs word/fixed-point (with card) | |
| – 2.6 µs floating point (with or without card) | |
| Instruction Rate | – 2.5 Kinst/ms (65% Boolean, 35% fixed-point, with card) |
| – 3.57 Kinst/ms (65% Boolean, 35% fixed-point, no card) | |
| – 3.7 Kinst/ms (100% Boolean, with card) | |
| – 4.76 Kinst/ms (100% Boolean, no card) | |
| System Overhead | – 0.35 ms (fast task) |
| – 1.2 ms (master task) | |
| Local Status Indicators (LEDs) | – RUN (green) |
| – FIP (red) | |
| – COL (red) | |
| – ERR (red) | |
| – I/O (red) | |
| – TER (yellow) | |
| – STS (yellow) | |
| – RX (yellow) | |
| – TX (yellow) | |
| Current Consumption | 1180 mA at 5 V DC |
| Module Format | Double |
| Net Weight | 0.78 kg (1.72 lb) |
| Package Dimensions | 95 x 180 x 260 mm |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -25 to 70 °C (-13 to 158 °F) |
| Relative Humidity (Operation) | 10% to 95% (non-condensing) |
| Relative Humidity (Storage) | 5% to 95% (non-condensing) |
| Maximum Operating Altitude | 0 to 2000 m (0 to 6561.68 ft) |
| Protective Treatment | TC |
| IP Rating | IP20 |
| Pollution Degree | 2 |
| Compliance Standards | IEC 61131-2, UL 508, CSA C22.2 No 142, CSA C22.2 No 213 Class I Div 2 Groups A-D |
| 73/23/EEC, 92/31/EEC, 93/68/EEC, 89/336/EEC | |
| Certifications | CE, BV, RINA, DNV, RMRS, LR, GL, ABS |
FAQ
Frequently Asked Questions (FAQ)
Q1: What software is compatible with the TSXP572823M processor?
A1: The processor is compatible with PL7 Junior and PL7 Pro software for programming and configuration.
Q2: How much memory does the TSXP572823M support?
A2: It includes 64 Kwords internal RAM and supports up to 2688 Kwords additional data storage via PCMCIA card.
Q3: How many I/O channels can this processor handle?
A3: It can handle up to 1024 discrete I/O and 80 analog I/O channels.
Q4: Is Ethernet TCP/IP communication supported?
A4: Yes, it has an integrated RJ45 port supporting 10/100 Mbps Ethernet TCP/IP communication.
Q5: What are the dimensions and weight of the processor module?
A5: The module has dimensions of 95 x 180 x 260 mm and weighs 0.78 kg.
Q6: What are the environmental operating limits?
A6: The processor operates between 0 and 60 °C, and at altitudes up to 2000 meters. It supports 10–95% relative humidity without condensation.
Q7: Can this processor be used with CANopen?
A7: Yes, but note that if a CANopen module is used, no additional fieldbus module can be installed.
Q8: What types of tasks does the processor support?
A8: It supports 64 event tasks, 1 fast task, and 1 master task for advanced process control applications.
