Technical Specifications
| Parameter | Details |
|---|---|

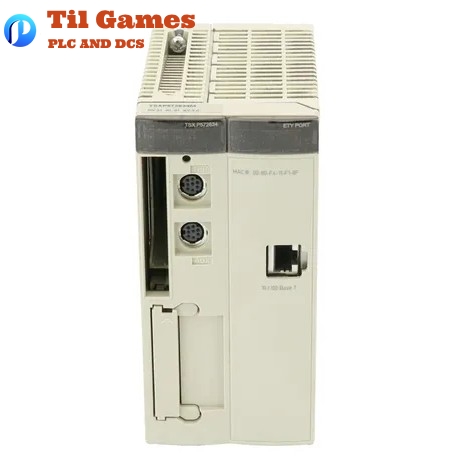

| Product Range | Modicon Premium Automation Platform |
| Product Type | Unity Processor |
| Software Compatibility | Unity Pro |
| System Platform | Modicon Premium |
| Concept Support | Transparent Ready |
| Number of Racks Supported | 16 (configurable with 4/6/8 or 8/12 slot racks) |
| Total Slot Capacity | Up to 128 slots |
| Discrete I/O Capacity | 1024 I/O |
| Analog I/O Capacity | 80 I/O |
| Application Specific Channels | 24 |
| Process Control Channels | 10 to 30 simple control loops |
| Integrated Communication | RS485 (2 female mini DIN, non-isolated, 19.2 kbit/s) |
| Ethernet TCP/IP (RJ45, 10BASE-T/100BASE-TX) | |
| Communication Module Capacity | 4 or 1 (dependent on configuration) |
| Internal Memory (w/o PCMCIA) | 160 kB program and data |
| Internal Memory (with PCMCIA) | 160 kB data + 768 kB program |
| External Memory | 16,384 kB PCMCIA card for data storage |
| Max Object Area | 64 %KWi (constant words), 64 %MWi (internal words), 8132 %Mi (internal bits) |
| 64 kB (DFB/EFB), 64 kB (elementary/derived data) | |
| Task Handling | 1 Master Task, 1 Fast Task, 64 Event Tasks |
| Execution Time (Boolean) | 0.19 µs (w/o PCMCIA), 0.21 µs (with PCMCIA) |
| Execution Time (Word/Fixed-Point) | 0.25 µs (w/o PCMCIA), 0.42 µs (with PCMCIA) |
| Execution Time (Floating Point) | 1.75…2.6 µs (with or without PCMCIA) |
| Instruction Execution Rate | 3.7 Kinst/ms (100% Boolean with PCMCIA) |
| 2.53 Kinst/ms (65% Boolean / 35% Arithmetic with PCMCIA) | |
| 4.76 Kinst/ms (100% Boolean w/o PCMCIA) | |
| 3.71 Kinst/ms (65% Boolean / 35% Arithmetic w/o PCMCIA) | |
| System Overhead Time | 1 ms Master Task, 0.3 ms Fast Task |
| Status Indicators (LEDs) | RUN (Green), ERR (Red), I/O Fault (Red), COL (Red), RX/TX (Yellow), |
| STS (Yellow), TER Activity (Yellow), Ethernet Ready (Green) | |
| Current Consumption | 1650 mA @ 5 V DC |
| Module Format | Double |
| Net Weight | 0.042 kg (0.093 lb) |
| Package Dimensions | 95 x 180 x 260 mm |
| Standards Compliance | IEC 61131-2, UL 508, CSA C22.2, CE, 73/23/EEC, 93/68/EEC, 89/336/EEC |
| Certifications | DNV, ABS, GL, BV, LR, RINA, RMRS |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -25…70 °C (-13…158 °F) |
| Relative Humidity (Operation) | 10…95% (non-condensing) |
| Relative Humidity (Storage) | 5…95% (non-condensing) |
| Maximum Altitude for Operation | 0…2000 m (0…6561.68 ft) |
| Environmental Protection | Protective Coating: TC, Pollution Degree: 2, IP Rating: IP20 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of slots supported by the TSXP572634M processor?
A1: The TSXP572634M can support up to 128 slots across multiple racks, depending on system configuration.
Q2: What types of communication ports are integrated into this processor?
A2: It includes non-isolated RS485 serial links via mini DIN connectors and Ethernet TCP/IP ports via RJ45.
Q3: Can this processor support floating-point operations?
A3: Yes, it supports floating-point instructions with execution times ranging from 1.75 to 2.6 µs.
Q4: How much internal memory is available without using a PCMCIA card?
A4: Without a PCMCIA card, the processor offers 160 kB shared for both program and data.
Q5: What is the rated current consumption of the TSXP572634M processor?
A5: The processor consumes 1650 mA at 5 V DC.
Q6: What is the function of the LED indicators on the module?
A6: LEDs indicate status such as RUN, ERR, I/O fault, RX/TX activity, TER activity, Ethernet readiness, and collisions.
Q7: Is the TSXP572634M suitable for marine or industrial certification environments?
A7: Yes, it holds certifications from bodies such as DNV, ABS, GL, BV, LR, and RINA, making it suitable for marine and industrial use.
Q8: What are the environmental limits for operating temperature and altitude?
A8: The unit operates from 0 to 60 °C and up to 2000 meters (6561.68 ft) in altitude.
