Technical Specifications
| Parameter | Details |
|---|---|

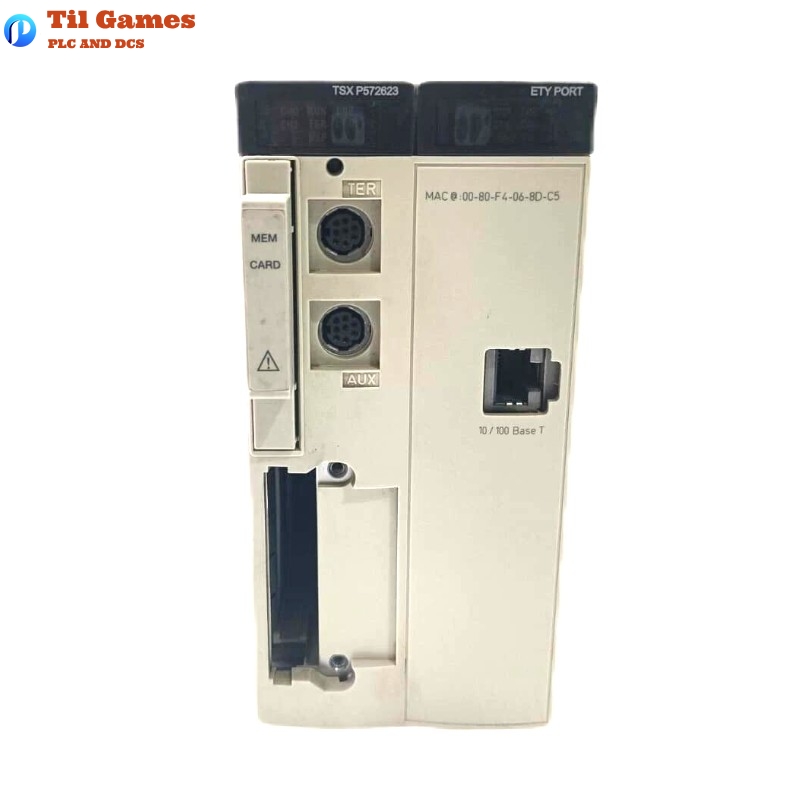

| Range of Product | Modicon Premium Automation Platform |
| Product Type | Unity Processor |
| Software Designation | Unity Pro |
| Module Format | Double |
| Number of Racks Supported | 16 (4/6/8 slots), 8 (12 slots) |
| Number of Slots | 64, 96, 128 |
| Discrete I/O Processor Capacity | 1024 I/O |
| Analog I/O Processor Capacity | 80 I/O |
| Number of Application Specific Channels | 24 |
| Number of Process Control Channels | 10 to 30 simple loops |
| Integrated Connection Types | – Non-isolated serial link (2 female mini DIN RS485, 19.2 kbit/s) |
| – Fipio manager (127 agents), SUB-D 9 connector | |
| Communication Module Processor Capacity | 1 or 4 modules |
| Memory Description | – 192 kB RAM (without PCMCIA card) for program and data |
| – 192 kB RAM (with PCMCIA card) for data | |
| – 768 kB RAM (with PCMCIA card) for program | |
| – 16,384 kB PCMCIA card for additional data storage | |
| Maximum Size of Object Areas | – 64 %KWi constant words (internal data) |
| – 64 %MWi internal words (internal data) | |
| – 64 kB DFB/EFB unlocated internal data | |
| – 64 kB elementary/derived data unlocated internal data | |
| – 8132 %Mi located internal bits | |
| Application Structure | – 1 master task |
| – 1 fast task | |
| – 64 event tasks | |
| Execution Time per Instruction | – 0.19 µs Boolean (without PCMCIA) |
| – 0.25 µs word/fixed-point arithmetic (without PCMCIA) | |
| – 1.75–2.6 µs floating-point (with/without PCMCIA) | |
| – 0.21 µs Boolean (with PCMCIA) | |
| – 0.42 µs word/fixed-point arithmetic (with PCMCIA) | |
| Instruction Throughput | – 3.7 Kinst/ms (100% Boolean with PCMCIA) |
| – 2.53 Kinst/ms (65% Boolean + 35% fixed arithmetic with PCMCIA) | |
| – 4.76 Kinst/ms (100% Boolean without PCMCIA) | |
| – 3.71 Kinst/ms (65% Boolean + 35% fixed arithmetic without PCMCIA) | |
| System Overhead Time | – 0.3 ms (fast task) |
| – 1 ms (master task) | |
| Local Signalling LEDs | – RUN (Green), FIP (Red), I/O (Red), ERR (Red), TER (Yellow) |
| Current Consumption | 930 mA at 5 V DC |
| Marking | CE |
| Certifications | GL, ABS, BV, LR, RINA, RMRS, DNV |
| Standards | UL 508, CSA C22.2 No 142/213, IEC 61131-2, 73/23/EEC, 89/336/EEC, 93/68/EEC |
| IP Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Protective Treatment | TC |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -25 to 70 °C (-13 to 158 °F) |
| Relative Humidity (Operation) | 10–95% (non-condensing) |
| Relative Humidity (Storage) | 5–95% (non-condensing) |
| Operating Altitude | 0 to 2000 m (0 to 6561.68 ft) |
| Net Weight | 0.628 kg (1.385 lb) |
| Package Dimensions (L x W x H) | 95 x 180 x 260 mm |
| Package Weight | 0.76 kg |
FAQ
Frequently Asked Questions (FAQs)
Q1: What software is used for programming the TSXP572623M processor?
A1: The processor is programmed using Unity Pro software.
Q2: How much internal memory is available without using a PCMCIA card?
A2: Without a PCMCIA card, the processor has 192 kB RAM for both program and data.
Q3: What is the processor’s capability for discrete and analog I/O?
A3: The processor supports up to 1024 discrete I/O and 80 analog I/O points.
Q4: What are the available communication options on the processor?
A4: It includes a non-isolated RS485 serial link and a Fipio manager port supporting 127 agents.
Q5: Can the TSXP572623M handle floating-point operations, and what is the execution time?
A5: Yes, it supports floating-point operations with execution times ranging from 1.75 to 2.6 µs.
Q6: What are the LED indicators on the module used for?
A6: LED indicators show processor run status, Fipio activity, I/O fault, system fault, and terminal port activity.
Q7: How many racks and slots are supported in the system architecture?
A7: The system can handle up to 16 racks with 4/6/8 slots, or 8 racks with 12 slots, totaling up to 128 slots.
Q8: What certifications and standards does this processor comply with?
A8: It complies with international standards including UL, CSA, IEC 61131-2, and certifications such as GL, ABS, DNV, and more.
