Technical Specifications
| Parameter | Details |
|---|---|

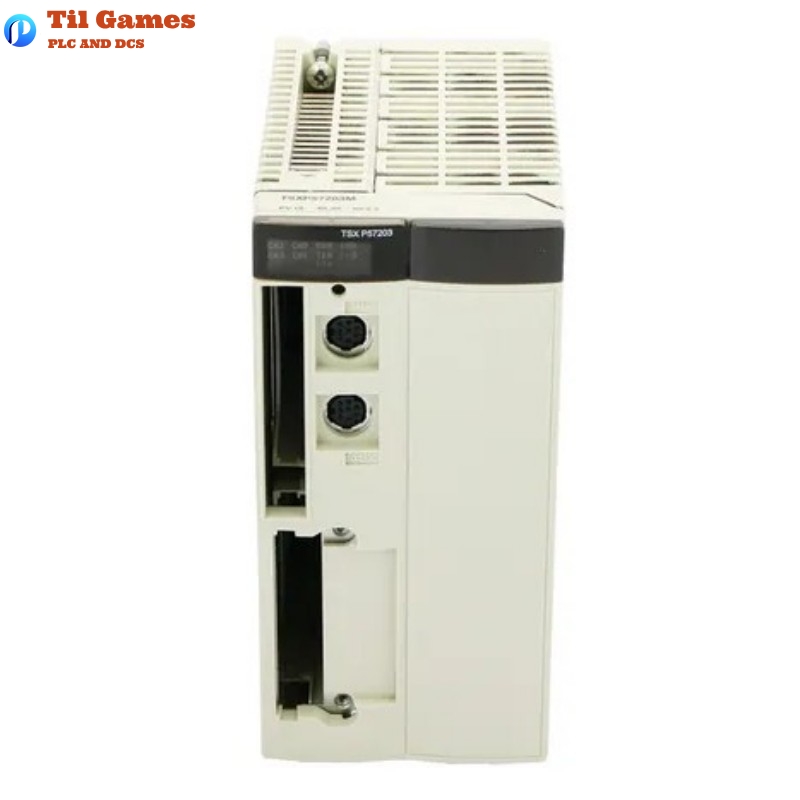

| Product Type | Double-format PL7 Processor |
| Product Range | Modicon Premium Automation Platform |
| Software Compatibility | PL7 Junior / PL7 Pro |
| Rack Capacity | Up to 16 racks (4/6/8-slot) or 8 racks (12-slot) |
| Slot Capacity | 96 / 64 / 128 slots (depending on rack configuration) |
| Discrete I/O Capacity | 1024 I/O |
| Analog I/O Capacity | 80 I/O |
| Application Specific Channels | 24 channels |
| Process Control Channels | 10 to 30 simple loops |
| Integrated Connection Ports | 2 x 8-way female mini-DIN connectors (non-isolated serial link, 19.2 kbps) |
| Communication Module Support | 1 fieldbus module (not if CANopen used), 1 network module, 4 AS-Interface bus modules, 1 CANopen |
| PCMCIA Slots | 2 slots: 1 for memory extension card, 1 for communication card or 4 MB SRAM |
| Internal RAM (w/ PCMCIA) | 48 Kwords data |
| Internal RAM (w/o PCMCIA) | 48 Kwords program and data |
| PCMCIA Program Memory | 160 Kwords |
| PCMCIA Additional Data Storage | 2688 Kwords |
| Object Area Size (Max) | 30.5 %MWi internal words, 32 %KWi constant words, 8132 %Mi internal bits |
| Task Configuration | 1 fast task, 1 master task, 64 event tasks |
| Execution Time (Boolean Instruction) | 0.19 µs (w/o PCMCIA), 0.21 µs (w/ PCMCIA) |
| Execution Time (Fixed-Point Arithmetic) | 0.25 µs (w/o PCMCIA), 0.42 µs (w/ PCMCIA) |
| Execution Time (Floating Point) | 2.6 µs (w/ or w/o PCMCIA) |
| Instruction Processing Speed | 2.5 Kinst/ms (65% Boolean + 35% fixed, w/ PCMCIA) |
| 3.57 Kinst/ms (65% Boolean + 35% fixed, w/o PCMCIA) | |
| 3.7 Kinst/ms (100% Boolean, w/ PCMCIA) | |
| 4.76 Kinst/ms (100% Boolean, w/o PCMCIA) | |
| System Overhead Time | 0.35 ms (fast task), 1 ms (master task) |
| Status Indicators | RUN (green), I/O fault (red), System fault (red), Terminal port activity (yellow) |
| Reset Button | Yes, cold start initiation |
| Current Consumption | 750 mA at 5 V DC |
| Module Format | Double-format |
| Dimensions (Package) | 95 x 180 x 260 mm |
| Weight (Net) | 0.52 kg (1.15 lb) |
| IP Protection Rating | IP20 |
| Pollution Degree | 2 |
| Protective Treatment | TC |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -25 to 70 °C (-13 to 158 °F) |
| Operating Altitude | 0 to 2000 m (0 to 6561.68 ft) |
| Relative Humidity (Operation) | 10 to 95% non-condensing |
| Relative Humidity (Storage) | 5 to 95% non-condensing |
| Certifications | CE, UL 508, CSA C22.2 No. 142 / 213 (Class I Div. 2, Groups A–D), DNV, LR, GL, RINA, BV, ABS |
| Standards | IEC 61131-2, 89/336/EEC, 73/23/EEC, 92/31/EEC, 93/68/EEC |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the TSXP57203M processor module?
A1: The TSXP57203M is primarily used in large-scale industrial automation systems for managing I/O, executing logic control, and communicating with distributed field devices through multiple communication interfaces.
Q2: Can I use both PCMCIA slots simultaneously for memory and communication?
A2: Yes, one slot is intended for memory extension and the other for either a communication card or an SRAM memory card, allowing for flexible configuration.
Q3: What is the maximum number of discrete and analog I/O this processor can handle?
A3: The processor supports up to 1024 discrete I/O and 80 analog I/O channels.
Q4: What are the key differences in execution performance with and without a PCMCIA card?
A4: Without the PCMCIA card, Boolean execution is faster (0.19 µs vs 0.21 µs), and the instruction throughput increases (up to 4.76 Kinst/ms for 100% Boolean instructions).
Q5: Does the processor include built-in communication interfaces?
A5: Yes, it includes two non-isolated serial ports (female mini-DIN) and supports additional communication via PCMCIA slots and modules like CANopen and AS-Interface.
Q6: Is the TSXP57203M certified for use in hazardous environments?
A6: Yes, it complies with CSA C22.2 No 213 for Class I, Division 2, Groups A to D, making it suitable for hazardous locations.
Q7: What kind of diagnostic indicators are provided on the front panel?
A7: The processor includes LEDs for RUN (green), I/O fault (red), processor/system fault (red), and terminal port activity (yellow) for quick diagnostics.
Q8: What environmental conditions must be met for operation and storage?
A8: The operating temperature must be between 0–60 °C, and storage temperature between -25–70 °C. Relative humidity must not exceed 95% non-condensing.
