Technical Specifications
| Parameter | Details |
|---|---|
| Product Range | Modicon Premium Automation Platform |
| Product Type | Single-format PL7 Processor |
| Software Compatibility | PL7 Junior / PL7 Pro |
| Rack Configuration | – 2 racks (12 slots) – 4 racks (4/6/8 slots) |
| Total Number of Slots | – 16 slots – 24 slots – 32 slots |
| Discrete I/O Capacity | 512 I/O |
| Analog I/O Capacity | 24 I/O |
| Application-Specific Channels | 8 channels |
| Integrated Connection Type | – Non-isolated serial link, 2 female mini DIN (19.2 kbit/s) – Fipio manager (63 agents), SUB-D 9 |
| Communication Module Capacity | – 1 network module – 2 AS-Interface bus modules |
| Memory (Internal and External) | – Internal RAM: 32 Kwords program/data (no card) – Internal RAM: 32 Kwords data (with PCMCIA) – PCMCIA Card: 64 Kwords program – PCMCIA Card: 128 Kwords data |
| Object Area Capacity | – 30.5 %MWi internal words – 32 %KWi constant words – 4096 %Mi bits |
| Application Structure | – 1 fast task – 1 master task – 32 event tasks |
| Instruction Execution Time | – 0.5 µs Boolean (without PCMCIA) – 0.6 µs Boolean (with PCMCIA) – 0.62 µs word/fixed-point arithmetic (no card) – 0.87 µs word/fixed-point arithmetic (with card) – 44 µs floating-point (with or without card) |
| Instruction Throughput | – 1.52 Kinst/ms (100% Boolean, no card) – 1.18 Kinst/ms (100% Boolean, with card) – 1.05 Kinst/ms (65% Boolean + 35% fixed, no card) – 0.85 Kinst/ms (65% Boolean + 35% fixed, with card) |
| System Overhead | – 0.8 ms fast task – 3.1 ms master task |
| Local Signalling LEDs | – RUN (green) – FIP (red) – I/O (red) – ERR (red) – TER (yellow) |
| Current Consumption | 8530 mA at 5 V DC |
| Module Format | Standard |
| Net Weight | 0.42 kg (0.93 lb) |
| Package Dimensions (W x H x D) | 55 x 180 x 260 mm |
| IP Rating | IP20 |
| Pollution Degree | 2 |
| Protective Treatment | TC |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -25 to 70 °C (-13 to 158 °F) |
| Relative Humidity (Operating) | 10% to 95%, non-condensing |
| Relative Humidity (Storage) | 5% to 95%, non-condensing |
| Operating Altitude | 0 to 2000 m (0 to 6561.68 ft) |
| Standards Compliance | IEC 61131-2, UL 508, CSA C22.2 No 142, CSA C22.2 No 213 (Class I Div 2 Groups A-D), 73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC |
| Certifications | CE, ABS, DNV, LR, RINA, GL, RMRS, BV |
FAQ
Frequently Asked Questions (FAQ)
Q1: What software is compatible with the TSXP57153M processor?
A1: The TSXP57153M processor is compatible with PL7 Junior and PL7 Pro software packages.
Q2: How many I/O points can this processor handle?
A2: It can manage up to 512 discrete I/O points and 24 analog I/O points.
Q3: Is a PCMCIA card necessary for operation?
A3: No, the processor operates without a PCMCIA card, but using one expands memory capacity for both program and data storage.

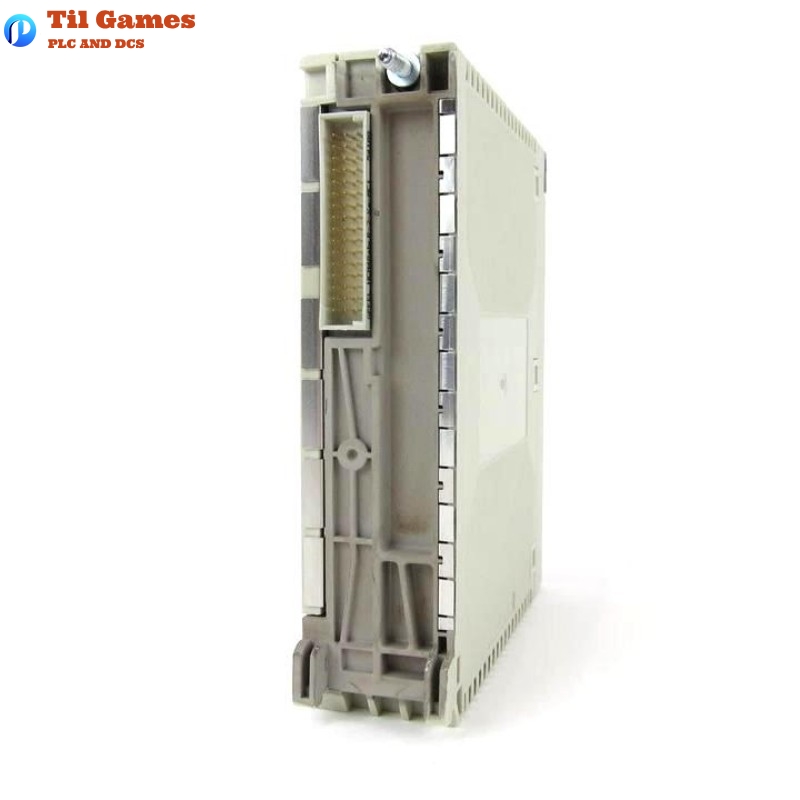

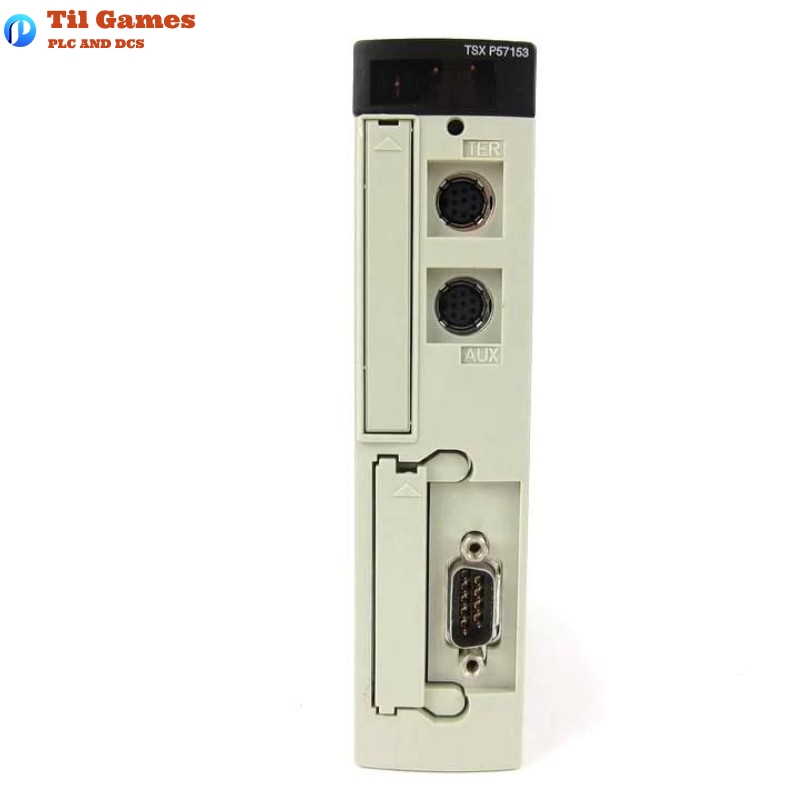

Q4: What communication interfaces are integrated in the module?
A4: It includes a non-isolated serial link (2 mini DIN connectors) and a Fipio manager interface for up to 63 agents.
Q5: What is the execution time for Boolean and arithmetic instructions?
A5: Boolean instructions take 0.5 to 0.6 µs, while arithmetic instructions range from 0.62 to 0.87 µs, depending on PCMCIA usage.
Q6: What are the LED indicators used for?
A6: LEDs indicate processor status, Fipio bus activity, I/O faults, system errors, and terminal port activity.
Q7: Can this processor support event-driven applications?
A7: Yes, it supports 32 event tasks along with a fast task and a master task.
Q8: What are the environmental limits for this processor?
A8: It can operate in temperatures from 0 to 60 °C and altitudes up to 2000 m, with humidity tolerance up to 95% without condensation.
