Technical Specifications

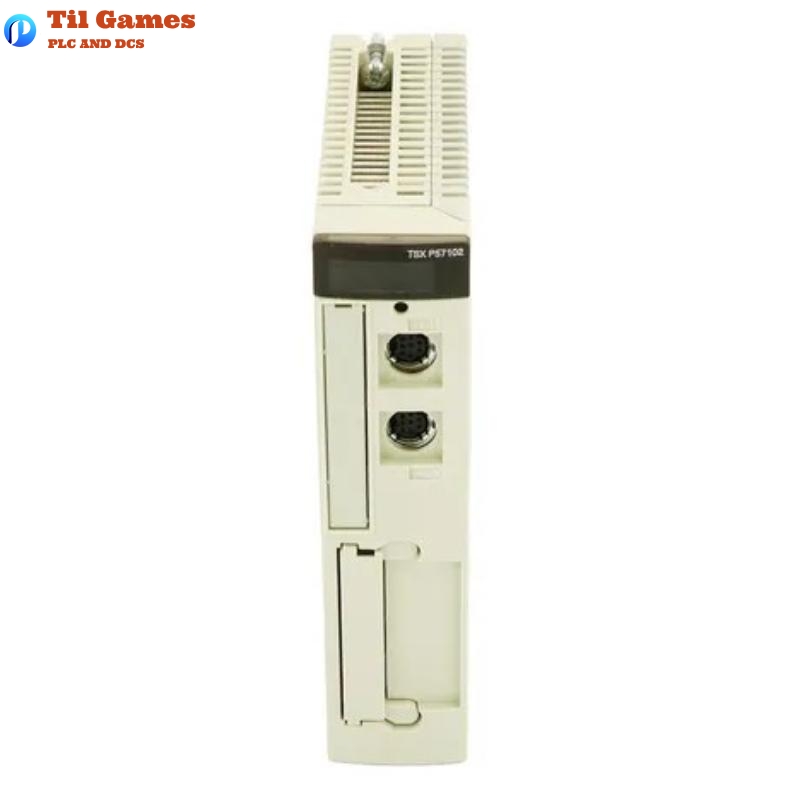

| Parameter | Details |
|---|---|
| Product Name | Schneider TSXP57103M |
| Product Type | Single-format PL7 Processor |
| Automation Platform | Modicon Premium |
| Software Compatibility | PL7 Junior / PL7 Pro |
| Number of Racks Supported | – 2 racks with 12 slots each – 4 racks with 4/6/8 slots |
| Total Number of Slots | 16, 24, or 32 |
| Discrete I/O Processor Capacity | 512 I/O |
| Analog I/O Processor Capacity | 24 I/O |
| Application Specific Channels | 8 channels |
| Integrated Communication Type | Non-isolated serial link (2 female mini DIN, 19.2 kbit/s) |
| Communication Module Capacity | – 1 network module – 2 AS-Interface bus modules – 1 CANopen module |
| Memory – Internal RAM (without PCMCIA) | 32 Kwords (program and data) |
| Memory – Internal RAM (with PCMCIA) | 32 Kwords (data only) |
| Memory – PCMCIA Card | – 64 Kwords program – 128 Kwords data |
| Max Object Area Allocation | – 30.5 %MWi internal words – 32 %KWi constants – 4096 %Mi internal bits |
| Application Task Structure | – 1 master task – 1 fast task – 32 event tasks |
| Execution Time per Instruction | – 0.5 µs Boolean (no PCMCIA) – 0.6 µs Boolean (with PCMCIA) – 0.62 µs word/fixed-point (no PCMCIA) – 0.87 µs word/fixed-point (with PCMCIA) – 44 µs floating point (with or without PCMCIA) |
| Instructions per Millisecond | – 1.52 Kinst/ms (100% Boolean, no PCMCIA) – 1.18 Kinst/ms (100% Boolean, with PCMCIA) – 1.05 Kinst/ms (65% Boolean + 35% fixed arithmetic, no PCMCIA) – 0.85 Kinst/ms (65% Boolean + 35% fixed arithmetic, with PCMCIA) |
| System Overhead Time | – 0.8 ms (fast task) – 1.5 ms (master task) |
| Local Signaling LEDs | – RUN: 1 green LED – I/O fault: 1 red LED – ERR: 1 red LED – TER (Terminal activity): 1 yellow LED |
| Current Consumption | 440 mA at 5 V DC |
| Module Format | Standard |
| Net Weight | 0.38 kg (0.84 lb) |
| Package Dimensions (L x H x D) | 55 x 180 x 260 mm |
| Protection Rating | IP20 |
| Pollution Degree | 2 |
| Certifications | CE, UL 508, CSA C22.2 No 142, CSA C22.2 No 213 (Class I, Div 2, Groups A-D), DNV, GL, RMRS, BV, ABS, LR, RINA |
| Standards Compliance | IEC 61131-2, 89/336/EEC, 73/23/EEC, 92/31/EEC, 93/68/EEC |
| Ambient Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Ambient Storage Temperature | -25 to 70 °C (-13 to 158 °F) |
| Relative Humidity (Operation) | 10 to 95% (non-condensing) |
| Relative Humidity (Storage) | 5 to 95% (non-condensing) |
| Operating Altitude | 0 to 2000 m (0 to 6561.68 ft) |
| Protective Treatment | TC (tropical coating) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What software is compatible with the TSXP57103M processor?
A1: The TSXP57103M is compatible with PL7 Junior and PL7 Pro programming environments.
Q2: What is the maximum number of I/O points supported by this processor?
A2: The processor supports up to 512 discrete I/O points and 24 analog I/O points.
Q3: Can this processor support a CANopen communication module?
A3: Yes, the TSXP57103M can accommodate one CANopen communication module.
Q4: What are the memory capabilities when using a PCMCIA card?
A4: With a PCMCIA card, the processor offers 64 Kwords for program and 128 Kwords for additional data storage.
Q5: What is the execution time for Boolean instructions?
A5: The execution time for Boolean instructions is 0.5 µs without a PCMCIA card and 0.6 µs with a PCMCIA card.
Q6: What is the IP protection rating of this processor?
A6: The processor has an IP20 degree of protection.
Q7: What is the total number of tasks supported by the processor?
A7: It supports 1 master task, 1 fast task, and up to 32 event tasks.
Q8: What is the operating temperature range for the TSXP57103M?
A8: The processor operates within a temperature range of 0 to 60 °C (32 to 140 °F).
