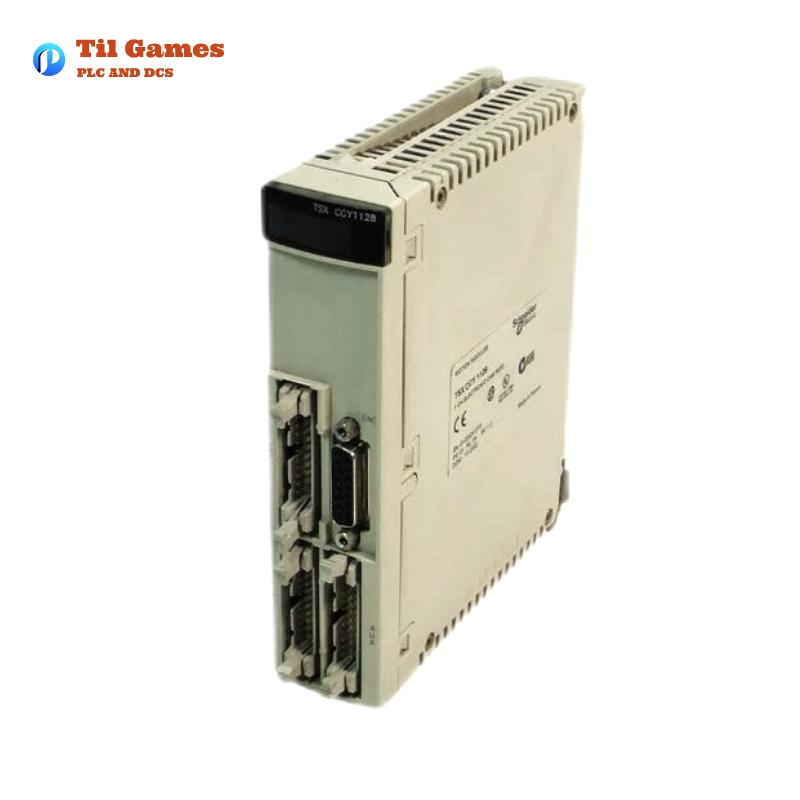

Product Description – Schneider TSXCCY1128 Electronic Cam Module
The Schneider TSXCCY1128 is an advanced Electronic Cam Module from the Modicon Premium Automation Platform. Designed for precision motion control and high-speed cam-switching operations, this module offers robust functionality for applications requiring precise synchronization between motion axes and digital output events. It supports up to 128 cams and 32 tracks, enabling intricate control sequences with optimal accuracy. Equipped to handle incremental and absolute encoders, the TSXCCY1128 ensures seamless integration into high-performance automation systems. Its intelligent design incorporates feedforward switching, event generation, axis backlash compensation, and modular I/O for single-axis control.
This module adheres to EN/IEC 61131 standards, offering flexibility in encoder types (RS422, 10–30 V positive/negative, SSI) and providing comprehensive diagnostics and monitoring through onboard LEDs. With its rapid output refresh cycles and broad compatibility, the TSXCCY1128 is ideal for high-speed packaging, labeling, or precision manufacturing tasks where exact timing and motion tracking are paramount.
Technical Specifications – Schneider TSXCCY1128
| Parameter | Specification |
|---|---|
| Product Type | Electronic Cam Module |
| Automation Platform | Modicon Premium |
| Number of Cams | 128 |
| Number of Tracks | 32 |
| Functionality | Position, Monostable, Brake, Feedforward, Counter, Backlash elimination |
| Axis Support | 1 axis |
| Clock Frequency (SSI Encoder) | 200 kHz |
| Incremental Encoder Frequency (x1) | 500 kHz |
| Incremental Encoder Frequency (x4) | 250 kHz |
| Power Dissipation | 7 W |
| Output Refresh Cycle | 50 µs (16), 100 µs (32), 200 µs (128) |
| Input Voltage | 24 V DC |
| Input Compatibility | ABE7CPA11, SSI, RS422, Totem Pole |
| Input Voltage Limits | 19–30 V |
| Current Consumption (5 V / 24 V) | 660 mA / 15 mA |
| Output Voltage | 24 V DC |
| Nominal Output Current | 0.5 A |
| Rated Current | ≤ 12 A/module, ≤ 6 A/connector, ≤ 0.6 A/output |
| Output Protection | Thermal breaker, Current limiter, Zener diode, Reverse diode |
| Switching Frequency | < 0.6/LI² inductive |
| Output Compatibility | DC positive logic inputs (≤ 15 kOhm) |
| Preactuator Fault Threshold | < 14 V (fault), > 18 V (OK) |
| Response Time (Auxiliary Input) | < 100 µs |
| Input Impedance | 1500 Ω (encoder), 3000 Ω (auxiliary) |
| Local Diagnostics LEDs | CH0 (green), RUN (green), I/O Fault (red), ERR (red) |
| Connectors | 3x HE-10 20-pin, 1x SUB-D 15-pin |
| Module Format | Standard |
| Dimensions (W x H x D) | 95 x 180 x 260 mm |
| Net Weight | 0.48 kg (1.06 lb) |
| Ambient Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -25…70 °C (-13…158 °F) |
| Relative Humidity (Operation) | 10–95% (non-condensing) |
| Relative Humidity (Storage) | 5–95% (non-condensing) |
| Operating Altitude | 0–2000 m (0–6561.68 ft) |
| Protective Treatment | TC |
Key Features
-
High-speed cam switching with 128 configurable cams and 32 track outputs
-
Synchronization with incremental and absolute encoders
-
Position feedback with SSI, RS422, and 10–30 V encoders
-
Position recalibration and elimination of mechanical backlash
-
Event generation and parts counting functions
-
Modular design supporting 1 axis per module
-
Fast output refresh times down to 50 µs
-
Overload, short-circuit, and overvoltage protection
-
Real-time fault diagnostics with status LEDs
Advantages
-
Precision Control: Offers high-speed response and exact positioning with advanced encoder compatibility
-
Modular and Scalable: Easily scalable for various industrial applications through modular design
-
Reliability: Built-in diagnostics and protection mechanisms ensure reliable operation
-
Flexibility: Wide support for different encoder types and control functions
-
Industrial Standards: Fully compliant with EN/IEC 61131, ensuring robust integration
-
Enhanced Safety: Advanced input/output protections and power monitoring features
Typical Applications
-
High-speed packaging machinery
-
Labeling and printing systems
-
Assembly line automation
-
Robotics synchronization
-
Motion-driven conveyor systems
-
Rotary and linear cam timing systems
-
CNC machine synchronization
Latest Industry Reports Featuring This Product
-
“Advancements in Cam Module Integration for High-Speed Manufacturing” – Automation Today, March 2025
-
“Modicon Premium Series in Modern Packaging Lines” – Industrial Motion Journal, January 2025
-
“Encoder Synchronization Trends in PLC-Based Systems” – Control Systems Engineering Review, February 2025
Related Models in the Same Series or Functional Category
| Model | Function | Number of Axes | Key Features |
|---|---|---|---|
| TSXCCY1129 | Electronic Cam Module | 1 | Higher encoder compatibility |
| TSXCCY1112 | Compact Cam Module | 1 | Lower cam/track count for compact systems |
| TSXCCY1120 | Advanced Cam Control Module | 2 | Dual-axis support |
| TSXCTY2C | Fast Counter/Encoder Module | 1 | Counter with encoder synchronization |
| TSXDSY32T2K | Digital Output Module | N/A | Supports high-speed outputs |
| TSXAEY1600 | Analog Input Module | N/A | Analog signal processing |
Popular Schneider Models
| Model | Type | Dimensions (mm) | Weight (kg) | Function |
|---|---|---|---|---|
| BMXP342020 | Processor Module | 100 x 120 x 135 | 0.6 | CPU for Modicon M340 |
| BMXAMO0410 | Analog Output Module | 95 x 180 x 260 | 0.5 | High-resolution analog output |
| BMXDDI3202K | Digital Input Module | 110 x 130 x 150 | 0.45 | 32-channel discrete input |
| TSXPSY2600 | Power Supply Module | 125 x 175 x 150 | 1.1 | 24 VDC power supply for Premium PLC |
| TSXETY5103 | Ethernet Communication Module | 125 x 180 x 140 | 0.55 | Ethernet networking for Modicon Premium |
| TSXDMZ28DR | Compact PLC with Integrated I/O | 150 x 180 x 200 | 0.85 | Integrated discrete & analog I/O control |
FAQ
Frequently Asked Questions – Schneider TSXCCY1128
Q1: What type of encoders are compatible with the TSXCCY1128 module?
A1: It supports incremental encoders (RS422, 10–30 V), and absolute encoders with SSI or parallel output (e.g., ABE7CPA11).
Q2: What is the maximum number of cams and tracks this module can handle?
A2: The TSXCCY1128 supports up to 128 cams and 32 tracks.
Q3: Can this module detect encoder faults or errors?
A3: Yes, the module includes diagnostic LEDs and monitoring functions to detect encoder faults and power issues.
Q4: What is the minimum output refresh time achievable?
A4: The minimum output refresh time is 50 microseconds for configurations with 16 outputs.
Q5: Is it possible to connect both incremental and absolute encoders simultaneously?
A5: No, the module supports either incremental or absolute encoders per configuration but not both simultaneously.
Q6: What protective features are integrated into the output circuitry?
A6: Outputs are protected with thermal circuit breakers, current limiters, Zener diodes for overvoltage, and reverse polarity protection.
Q7: Can the TSXCCY1128 be used for rotary cam applications?
A7: Yes, it is ideally suited for rotary and linear cam-based timing applications.
Q8: What is the recommended ambient operating temperature range?
A8: The module operates within a temperature range of 0 to 60 °C (32 to 140 °F).
