Product Description

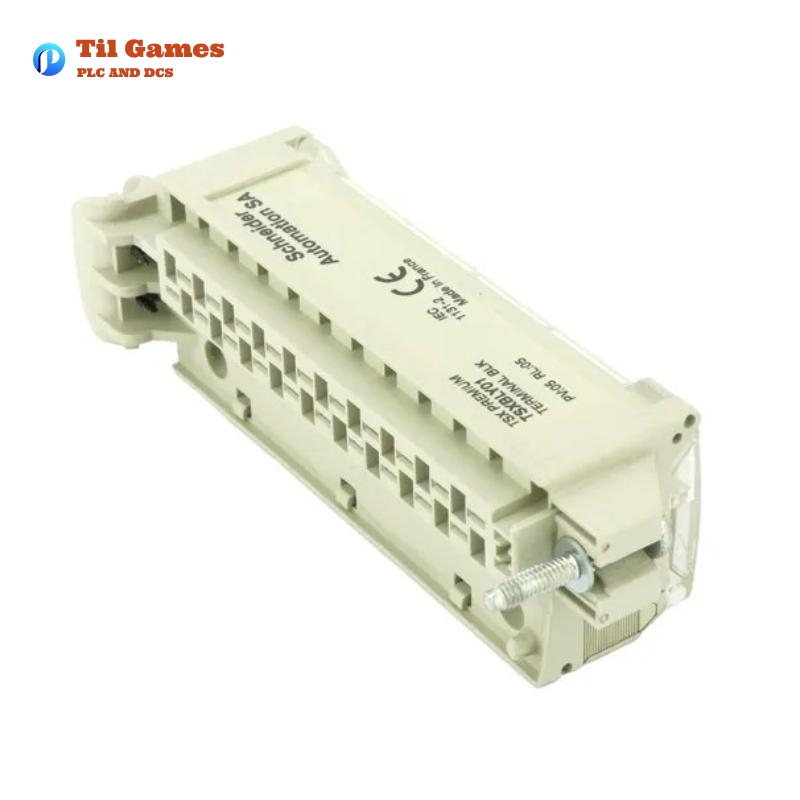

The Schneider TSXBLY01 is a 20-way screw connection terminal block specifically designed for use with analog and discrete I/O modules in the Modicon Premium Automation Platform. It is an essential connection accessory that facilitates the secure wiring of field devices to Schneider Electric analog input/output modules such as TSXAEY414 and TSXASY410. Designed for high reliability and ease of maintenance, the TSXBLY01 is ideal for industrial automation environments.
This terminal block is part of the connection accessory family and supports straightforward, tool-based installation using captive screws and wire-end ferrules. It is engineered for both safety and serviceability with coding features to prevent incorrect mounting.
Product Parameters
| Parameter | Value |
|---|---|
| Product Type | Terminal Block |
| Part Number | TSXBLY01 |
| Product Range | Modicon Premium Automation Platform |
| Accessory Category | Connection Accessories |
| Compatible Modules | TSXAEY414, TSXASY410 |
| Connection Type | Screw connection |
| Number of Ways | 20 |
| Installation Method | Pull-out screw terminal block with encoder |
| Minimum Wire Size | 0.2 mm² (AWG 24) |
| Maximum Wire Size | 2 mm² (AWG 14) without ferrule |
| Max Terminal Capacity | 16 x 1 mm² + 4 x 1.5 mm² wires |
| Max Tightening Torque | 0.8 Nm |
| Terminal Screw Type | Pozidriv No.1 / 5 mm flat screwdriver |
| Dimensions (H x W x D) | 44 x 40 x 130 mm |
| Net Weight | 0.1 kg |
| Certifications | IEC1131, IEC801, IEC68, UL508, UL94 |
| Material | Flame-retardant molded housing |
Product Features
-
Quick Pull-out Design: Enables tool-free and fast maintenance or replacement.
-
High Connection Density: Accommodates up to 20 screw terminals, suitable for 4- and 8-channel modules.
-
Indexor-Based Coding: Prevents incorrect terminal block installation across incompatible module types.
-
Dual Labeling: Internal and external labeling options support easy channel identification and documentation.
-
Secure Connections: Captive screws and molded guides for screwdriver types improve reliability during wiring.
Product Advantages
-
High Compatibility: Designed to seamlessly connect with multiple Premium analog/discrete I/O modules.
-
Error-proof Installation: Coding prevents connection errors, enhancing safety and module longevity.
-
Rugged Construction: Built to endure industrial environments with flame-retardant materials.
-
Time-saving Maintenance: Fast module or wiring replacement thanks to its plug-in screw terminal design.
-
Supports Diagnostic Monitoring: Enables secure sensor/pre-actuator connection for precise diagnostics.
Applications
-
Industrial Automation Systems
-
Process Control Panels
-
PLC-Based Analog/Discrete I/O Systems
-
Energy and Utility Automation
-
Manufacturing and Production Line Instrumentation
-
Building Management Systems
Latest Documented Title on TSXBLY01
-
“Premium and Atrium using EcoStruxure™ Control Expert – Analog Input/Output Modules User Manual” (Document Reference: 35010447, Release Date: 12/2018)
Related Models in the Same Series
| Model | Description | No. of Channels | Connection Type | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| TSXAEY414 | Analog Input Module | 4 | TSXBLY01 Screw Block | 0.34 | 44 x 40 x 130 |
| TSXAEY420 | Analog Input Module | 4 | 25-pin Sub-D Connector | 0.38 | 44 x 40 x 130 |
| TSXAEY800 | Analog Input Module | 8 | Sub-D | 0.42 | 44 x 40 x 130 |
| TSXAEY1614 | High-Density Analog Input | 16 | Dual Sub-D | 0.46 | 44 x 40 x 130 |
| TSXASY410 | Analog Output Module | 4 | TSXBLY01 Screw Block | 0.41 | 44 x 40 x 130 |
| TSXASY800 | Analog Output Module | 8 | Sub-D / External 24V | 0.47 | 44 x 40 x 130 |
Popular Schneider Models (Recommended)
| Model | Function | Type | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|
| BMXP342020 | Modicon Premium CPU | Processor Module | 0.75 | 60 x 40 x 130 |
| BMXAMO0410 | Analog Output Module | Analog Output | 0.40 | 44 x 40 x 130 |
| BMXDDI1602 | 16-Channel Discrete Input Module | Digital Input | 0.36 | 44 x 40 x 130 |
| BMXDAO1605 | 16-Channel Discrete Output Module | Digital Output | 0.42 | 44 x 40 x 130 |
| TSXP573623M | Modicon Premium Processor | CPU | 0.83 | 60 x 40 x 130 |
| BMXCPS3020 | 24VDC Power Supply | Power Module | 0.50 | 44 x 40 x 130 |
FAQ
FAQ – Schneider TSXBLY01 Terminal Block
Q1: What modules are compatible with TSXBLY01?
A1: TSXBLY01 is compatible with TSXAEY414 and TSXASY410 analog modules.
Q2: Can TSXBLY01 be installed while the rack is powered on?
A2: No, both the terminal block and module must be disconnected during installation to prevent damage.
Q3: What is the recommended wire size for terminal connections?
A3: Use 0.2 mm² to 2 mm² wires; ferrules are supported for up to 1.5 mm².
Q4: Does the TSXBLY01 support hot-swapping?
A4: No, it does not support hot-swapping; safe handling procedures must be followed.
Q5: What tool is used for wiring the TSXBLY01?
A5: Pozidriv No.1 or 5 mm flat screwdrivers are suitable for terminal screws.
Q6: How is the terminal block secured to the module?
A6: It uses a top screw and encoder alignment to ensure secure mounting.
Q7: Can this terminal block be reused on different module types?
A7: No, indexor contacts restrict usage to only the module it was initially coded for.
Q8: What is the typical installation use-case for TSXBLY01?
A8: It is used for sensor/pre-actuator signal wiring in analog I/O applications in Modicon Premium PLC systems.
