Product Description

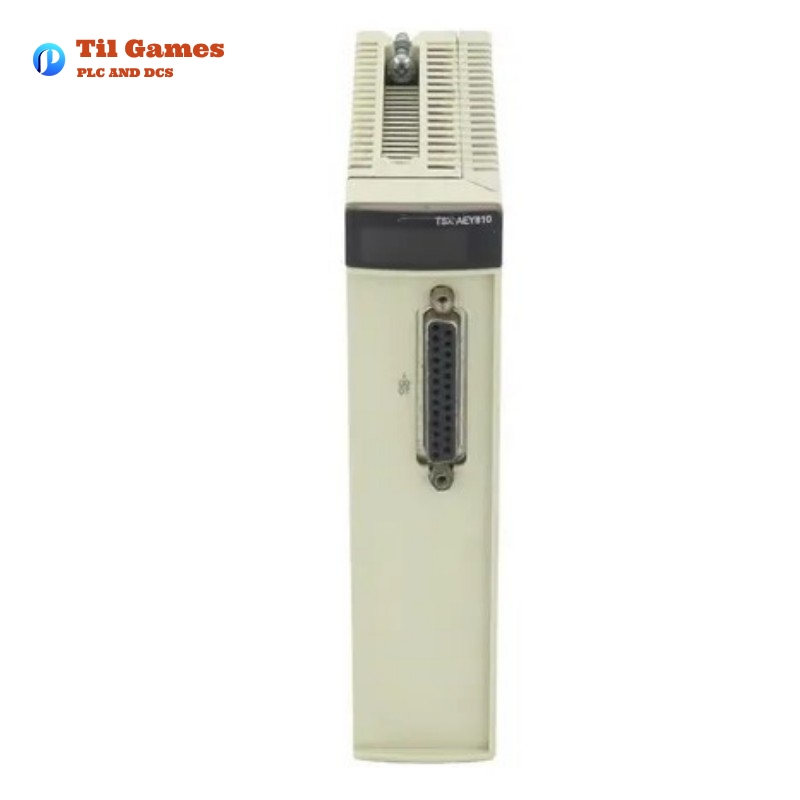

The Schneider TSXAEY810 is a versatile analog input module from the Modicon Premium automation platform. It is engineered to handle a variety of low-level analog input signals with high accuracy and speed, supporting a wide array of industrial automation applications. The module features 8 input channels that can handle both current and voltage signals with high resolution, and it offers superior signal isolation and fault diagnostics.
Its robust design, precise measurement capabilities, and seamless integration with Schneider’s EcoStruxure™ Control Expert environment make the TSXAEY810 an ideal choice for high-performance control systems requiring accurate analog input acquisition.
Technical Specifications
| Parameter | Details |
|---|---|
| Range of Product | Modicon Premium Automation Platform |
| Product Type | Analog Input Module |
| Input Signal Types | Voltage: ±10 V, 0–10 V, 0–5 V, 1–5 V |
| Current: 0–20 mA, 4–20 mA | |
| Number of Input Channels | 8 |
| Analog to Digital Conversion | 16-bit |
| Nominal Read Cycle Time | 29.7 ms |
| Fast Read Cycle Time | 3.3 ms + 3.3 ms × number of channels used |
| Measurement Error (Typical @ 25°C) | ±0.13% to ±0.305% FS depending on range & temp. |
| Isolation (Channel/Bus & Channel/Ground) | 1000 Vrms |
| Isolation Between Channels | ±200 V |
| Common Mode Voltage | ±200 V |
| Input Overvoltage Protection | Up to ±30 V @ 250 Ohm |
| Overcurrent Protection | Up to ±30 mA @ 250 kOhm |
| Electrical Connection | 1 x SUB-D 25-pin Connector |
| Current Consumption | 475 mA @ 5 V DC |
| Module Format | Standard Rack-Mount |
| Dimensions (W x H x D) | 55 × 180 × 260 mm |
| Net Weight | 0.31 kg |
| Degree of Protection | IP20 |
| Operating Temperature Range | 0 to 60 °C |
| Storage Temperature Range | -25 to 70 °C |
| Relative Humidity | 10–95% (operation), 5–95% (storage) |
| Operating Altitude | 0 to 2000 m |
| Standards and Certifications | CE, ABS, RINA, LR, BV, DNV, GL, RMRS, IEC 1131 |
| Pollution Degree | 2 |
| Protective Treatment | TC (Tropicalized Coating) |
Product Features
-
Multi-range analog input capability supporting various voltage and current formats.
-
High-resolution 16-bit analog-to-digital conversion ensures precise measurements.
-
Quick scan cycle times ideal for time-sensitive industrial processes.
-
Excellent electrical isolation for enhanced protection and signal integrity.
-
Compact standard format for convenient installation in Premium racks.
-
Diagnostics LEDs (RUN, ERR, I/O) for quick fault identification.
Advantages
-
Accuracy and Stability: Low measurement error across temperature ranges and signal types.
-
Versatility: Compatible with a wide range of analog signals, allowing deployment across diverse applications.
-
Reliability: Designed with comprehensive fault diagnostics and signal isolation.
-
Integration: Fully compatible with EcoStruxure™ Control Expert for easy configuration and monitoring.
-
Compact Footprint: Occupies a single rack slot with robust mechanical design.
-
Certified: Complies with global certifications for marine and industrial applications.
Applications
-
Process Control Systems (e.g., temperature, pressure, flow measurement)
-
Building Automation
-
Water and Wastewater Treatment Plants
-
Energy Management Systems
-
Manufacturing and Assembly Lines
-
Marine and Offshore Automation
Latest Reports or Documentation Title
“Premium and Atrium using EcoStruxure™ Control Expert – Analog Input/Output Modules – User Manual – 12/2018”
Related Models from the Same Series
| Model | Input Type | Channels | Resolution | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TSXAEY800 | Voltage/Current | 8 | 16-bit | 55 × 180 × 260 | 0.33 |
| TSXAEY420 | Voltage/Current | 4 | 16-bit | 55 × 180 × 260 | 0.33 |
| TSXAEY1600 | Voltage/Current | 16 | 16-bit | 55 × 180 × 260 | 0.35 |
| TSXAEY1614 | Thermocouple, Low Voltage | 4 | 16-bit | 55 × 180 × 260 | 0.35 |
| TSXAEY414 | Thermocouple/Thermoprobe/Ohmic | 4 | 16-bit | 55 × 180 × 260 | 0.33 |
| TSXASY800 (Output) | Voltage/Current Output Module | 8 | 14-bit/13-bit | 55 × 180 × 260 | 0.34 |
Popular Schneider Models
| Model | Type | Application | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| BMXAMI0810 | Analog Input Module | General Automation | 8 | 32 × 100 × 80 | 0.25 |
| BMXAMO0410 | Analog Output Module | Process Control | 4 | 32 × 100 × 80 | 0.22 |
| BMXP342020 | Processor Module | CPU for Modicon M340 | – | 59 × 100 × 95 | 0.33 |
| TSXPSY2600 | Power Supply Module | TSX Premium Rack | – | 55 × 180 × 130 | 0.45 |
| TSXP572634M | CPU Module | Premium Automation Controller | – | 55 × 180 × 260 | 0.40 |
| TSXDMZ64DTK | Digital I/O Module | High-density Discrete Control | 64 | 55 × 180 × 260 | 0.34 |
FAQ
Frequently Asked Questions (FAQs)
Q1: What types of signals can the TSXAEY810 handle?
A1: It supports voltage signals (±10 V, 0–10 V, 0–5 V, 1–5 V) and current signals (0–20 mA, 4–20 mA).
Q2: How many input channels are available on the TSXAEY810 module?
A2: The module provides 8 analog input channels.
Q3: What is the resolution of the analog-to-digital conversion?
A3: The module offers 16-bit resolution, enabling high-precision signal processing.
Q4: What is the operating temperature range for this module?
A4: It operates reliably within a temperature range of 0 to 60 °C.
Q5: Can the TSXAEY810 be used in marine environments?
A5: Yes, it holds certifications such as ABS, RINA, DNV, and others suitable for marine applications.
Q6: What isolation is provided between channels and the bus?
A6: Isolation is rated at 1000 Vrms between channels and the system bus, and between channels and ground.
Q7: Does the module support overvoltage and overcurrent protection?
A7: Yes, it provides overvoltage protection up to ±30 V and overcurrent protection up to ±30 mA.
Q8: Is the module compatible with EcoStruxure™ Control Expert software?
A8: Yes, full compatibility with EcoStruxure™ Control Expert ensures easy configuration and diagnostics.
