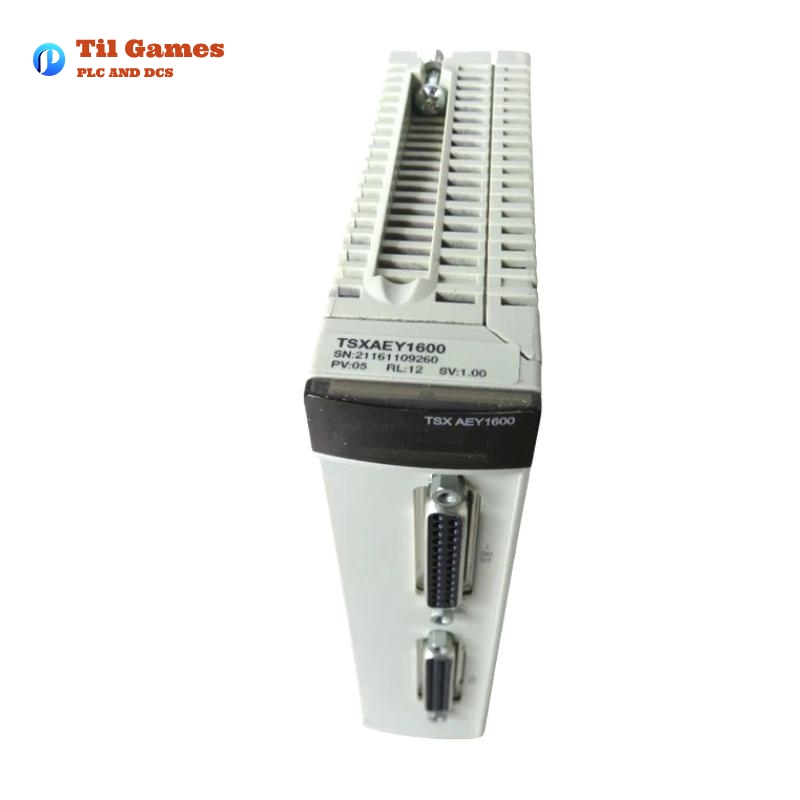

Product Overview: Schneider TSXAEY1600 Modicon Premium Analog Input Module
The Schneider TSXAEY1600 is a high-performance analog input module within the Modicon Premium automation platform. Designed to provide accurate high-level voltage and current signal acquisition, it supports multiple analog input types and ensures robust, reliable operation in industrial automation systems. The TSXAEY1600 features 16 configurable channels and high-resolution 12-bit analog-to-digital conversion, making it suitable for a wide variety of signal processing applications.
Product Features
-
16 configurable analog input channels
-
Supports multiple voltage and current ranges: ±10 V, 0–10 V, 0–5 V, 1–5 V, 0–20 mA, 4–20 mA
-
Fast read cycle time: as low as 3 ms per channel
-
Input overvoltage protection and isolation
-
High accuracy and stability over a wide temperature range
-
Integration with TELEFAST 2 wiring accessories
-
Dual 25-pin SUB-D connectors for easy field wiring
-
Compact, rack-mountable standard format
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Range | Modicon Premium Automation Platform |
| Module Type | Analog Input Module |
| Input Channels | 16 channels |
| Input Signal Types | Voltage: ±10 V, 0–10 V, 0–5 V, 1–5 V |
| Current: 0–20 mA, 4–20 mA | |
| Analog/Digital Conversion | 12-bit resolution |
| Nominal Read Cycle Time | 51 ms |
| Fast Read Cycle Time | 3 ms + 3 ms × number of channels used |
| Measurement Accuracy (25°C) | ±0.1% of FS for voltage, ±0.16% of FS for current |
| Measurement Accuracy (0–60°C) | ±0.13% of FS for voltage, ±0.32% of FS for current |
| Input Impedance | 250 kΩ (state-dependent) |
| Overvoltage Protection | ±15 V (state 0), ±30 V (state 1) |
| Overcurrent Protection | ±30 mA at 250 kΩ |
| Isolation Channel–Bus | 1000 Vrms |
| Isolation Channel–Ground | 1000 Vrms |
| Channel–Channel Isolation | Common point |
| Common Mode Rejection | None between channels |
| Electrical Connection | 2 × 25-pin SUB-D connectors |
| Current Consumption | 270 mA at 5 VDC |
| Module Format | Standard |
| Markings & Certifications | CE, BV, GL, LR, DNV, RINA, ABS, RMRS |
| Standards Compliance | IEC 1131 |
| Protective Treatment | TC |
| Enclosure Protection Rating | IP20 |
| Pollution Degree | 2 |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -25 to 70°C |
| Relative Humidity (Operation) | 10 to 95% non-condensing |
| Relative Humidity (Storage) | 5 to 95% non-condensing |
| Operating Altitude | 0 to 2000 m |
| Dimensions (H × D × W) | 55 × 180 × 260 mm |
| Net Weight | 0.34 kg |
Product Advantages
-
High Channel Density: Supports 16 analog inputs in a single-slot module.
-
Flexible Signal Types: Accepts both current and voltage signals, adaptable to varied sensor outputs.
-
Compact and Efficient: Occupies minimal rack space while providing comprehensive analog acquisition.
-
Enhanced Protection: Includes electrical isolation and overvoltage protection, improving system robustness.
-
Precision Engineering: Offers excellent accuracy and stability over wide operating conditions.
-
Easy Integration: Compatible with TELEFAST 2 wiring systems and uses standard Sub-D connectors.
Typical Applications
-
Process control and monitoring in manufacturing plants
-
Analog signal acquisition for temperature, pressure, and flow sensors
-
Power generation and distribution systems
-
Industrial automation and PLC-based control systems
-
Water treatment and wastewater management
-
Oil and gas monitoring solutions
Recent Technical Bulletin Headlines (Illustrative)
-
“Enhanced Diagnostics and Isolation in TSXAEY1600 Boosts Field Reliability”
-
“Schneider Modicon Premium Platform Sets Benchmark in Analog Signal Acquisition”
-
“Integrating TSXAEY1600 with TELEFAST 2 for Streamlined Field Wiring”
-
“High-Precision Analog Acquisition with Schneider’s 12-bit TSXAEY1600”
-
“Standardized Signal Ranges Simplify Sensor Calibration for TSXAEY1600 Users”
Recommended Related Models (Same Series)
| Model | Channels | Input Type | Resolution | Connector Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|---|
| TSXAEY1614 | 16 | Thermocouple ±80 mV | 16-bit | 2 × 25-pin SUB-D | 55 × 180 × 260 | 0.35 kg |
| TSXAEY414 | 4 | Multi-range incl. RTD | 16-bit | Screw Terminal | 55 × 180 × 260 | 0.33 kg |
| TSXAEY420 | 4 | High-Level Voltage/Current | 12-bit | 1 × 25-pin SUB-D | 55 × 180 × 260 | 0.32 kg |
| TSXAEY800 | 8 | Voltage/Current | 12-bit | 1 × 25-pin SUB-D | 55 × 180 × 260 | 0.34 kg |
| TSXAEY810 | 8 | Voltage/Current | 12-bit | 1 × 25-pin SUB-D | 55 × 180 × 260 | 0.34 kg |
| TSXASY410 | 4 (Output) | Analog Output Voltage/Current | 14-bit | Screw Terminal | 55 × 180 × 260 | 0.32 kg |
Popular Schneider Models
| Model | Type | Channels | Key Feature | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| BMXART0814 | Analog Input Module | 8 | Low-level analog input | 100 × 110 × 70 | 0.29 kg |
| BMXAMI0810 | Analog Input Module | 8 | High-level input, 16-bit resolution | 100 × 110 × 70 | 0.30 kg |
| BMXAMM0600 | Analog Mixed Module | 6 in / 2 out | Combined I/O for analog signals | 100 × 110 × 70 | 0.31 kg |
| BMXAMO0210 | Analog Output Module | 2 | High precision analog output | 100 × 110 × 70 | 0.28 kg |
| BMXCPS3500H | Power Supply Module | — | Redundant hot swap, 24 V DC | 110 × 126 × 103 | 0.65 kg |
| TSX3708056DR1 | Modular Base Controller | — | Integrated 56 I/O channels | 140 × 300 × 190 | 1.20 kg |
FAQ
Frequently Asked Questions (FAQs)
Q1: What types of analog signals can the TSXAEY1600 accept?
A1: It accepts both voltage (±10 V, 0–10 V, 0–5 V, 1–5 V) and current (0–20 mA, 4–20 mA) inputs.
Q2: What is the analog-to-digital resolution of the TSXAEY1600?
A2: It provides 12-bit resolution across all input channels.
Q3: Can the TSXAEY1600 operate in high-temperature environments?
A3: Yes, it supports an operating temperature range of 0°C to 60°C.
Q4: Is the TSXAEY1600 electrically isolated?
A4: Yes, it offers 1000 Vrms isolation between channels and both bus and ground.
Q5: What connectors are used for field wiring?
A5: It uses two 25-pin Sub-D connectors for input wiring.
Q6: Is the module protected against input overvoltage and overcurrent?
A6: Yes, it includes protection up to ±30 V and ±30 mA depending on the state.
Q7: What is the read cycle time for fast applications?
A7: The fast read cycle time is calculated as 3 ms plus 3 ms per channel used.
Q8: Can the TSXAEY1600 be used with TELEFAST accessories?
A8: Yes, it is compatible with TELEFAST 2 accessories such as ABE-7CPA02 and ABE-7CPA03.
