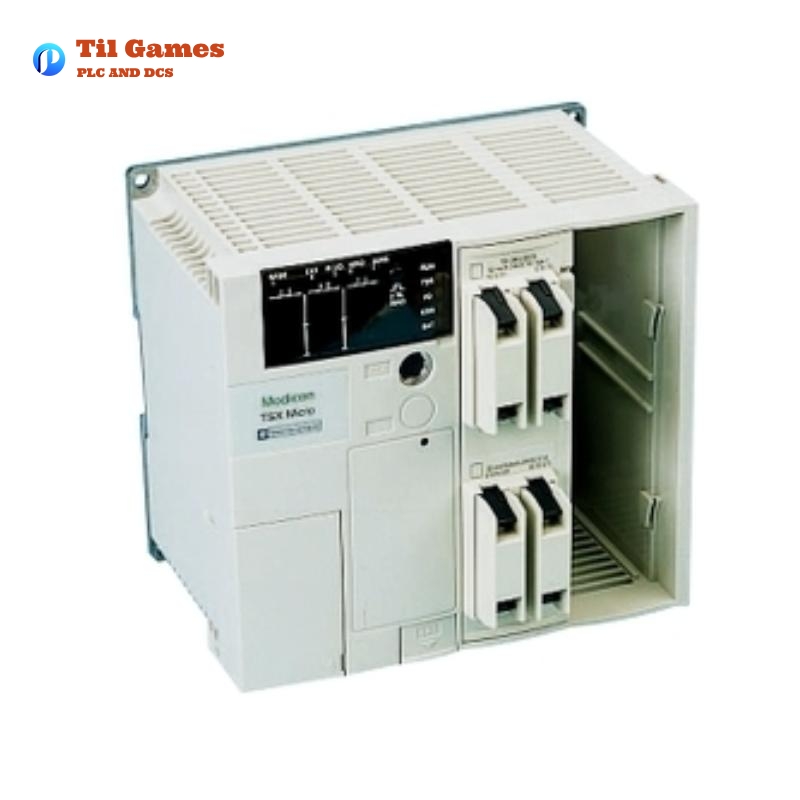

Schneider TSX3710028DR1 Modular Base Controller
– Product Overview –
The Schneider TSX3710028DR1 is a modular base controller from the Modicon TSX Micro automation platform, designed for compact industrial automation solutions. It integrates high-speed processing, built-in I/O capabilities, serial communications, and memory to deliver robust control functions for small to medium-scale applications.
Its versatility, reliability, and compatibility with Uni-Telway and Modbus protocols make it suitable for a wide range of industrial sectors including manufacturing, material handling, infrastructure, and OEM machinery.
– Product Technical Parameters –
| Parameter | Value |
|---|---|
| Range of Product | Modicon TSX Micro |
| Product Type | Modular Base Controller |
| Model Number | TSX3710028DR1 |
| Input Voltage Range | 100…240 V AC (operating: 90…264 V AC) |
| Input Current | 2 mA – 60 A |
| Discrete Inputs | 16 channels at 24 V AC |
| Discrete Outputs | 12 relay outputs |
| Output Current | 0.5 A per output |
| Number of Slots | 2 slots |
| I/O Module Type | Screw terminal discrete I/O modules |
| Communication Ports | 1 x Uni-Telway Serial (19.2 kbps), 1 x Modbus RTU (19.2 kbps) |
| Integrated Real-Time Clock | Yes |
| Memory | Internal RAM: 14 Kwords Flash: 15 Kwords |
| Max Object Area Sizes | 256 %Mi, 1 %MWi (internal), 128 %KWi (constant words) |
| Execution Time per Instruction | 0.25 µs Boolean, 4.81 µs Real Arithmetic (no PCMCIA card) |
| Execution Time for 1K Instructions | 3.03 ms (Boolean), 0.25 ms (mixed Boolean/Numerical) |
| Application Structure | 1 master task, 8 event tasks, 1 fast task |
| System Overhead | 1.9 ms for master task |
| Protection Type | Short-circuit, overload protection |
| Immunity to Microbreaks | 20 ms |
| EMC Compliance | IEC 1000-4-2/3/4/5/12, IEC 61131-2 |
| Network Frequency | 50/60 Hz |
| Power Consumption | 24 W |
| Operating Temperature | 0…60°C |
| Storage Temperature | -25…70°C |
| Humidity Tolerance | 10–95% RH (operation), 5–95% RH (storage) |
| Max Operating Altitude | 2000 m |
| Dimensions (W x H x D) | 282.7 mm x 151 mm x 152 mm |
| Weight | 1.91 kg |
– Key Features –
-
Modular architecture with 2-slot capacity
-
Integrated 16 inputs and 12 relay outputs
-
Built-in Uni-Telway and Modbus communication ports
-
Real-time clock and application task scheduling
-
Flash and RAM memory with redundancy options
-
Robust design compliant with industrial EMC standards
-
Easy integration into SCADA, HMI, and distributed control systems
– Advantages –
-
Compact footprint: Optimized for space-constrained control panels.
-
Flexible I/O configuration: Supports various discrete modules.
-
High processing speed: Up to 0.25 μs per Boolean instruction.
-
Reliable communication: Dual protocol support for Uni-Telway and Modbus.
-
Integrated diagnostics: Enhanced fault tracking and system monitoring.
-
Long lifecycle: Designed for demanding industrial environments with elevated MTBF.
-
Energy-efficient: Low power usage with wide input voltage range.
– Applications –
-
Packaging and Bottling Machines
-
Material Conveying Systems
-
HVAC and Building Management
-
OEM Machine Manufacturing
-
Water Treatment and Pumping Stations
-
Textile and Printing Machinery
-
Small-scale Process Automation
– Latest Industry Report Title (Example) –
“Compact PLCs in Modern Automation – Schneider TSX Micro Series Revolutionizing OEM Integration”
Published in: Industrial Control Systems Journal, March 2025 Edition
– Related Models from the Same TSX Micro Series –
| Model | Description | Input Voltage | I/O Capacity | Communication |
|---|---|---|---|---|
| TSX3705001 | Basic Compact PLC | 100–240 V AC | 16I/12O | Uni-Telway |
| TSX3708056DR1 | Extended I/O Modular Base | 100–240 V AC | 32I/24O | Modbus, Uni-Telway |
| TSX3710001 | Base Controller without Integrated I/O | 24 V DC | 2 modular slots | Uni-Telway |
| TSX3721001 | Modular Controller with Expansion Option | 100–240 V AC | Up to 192 I/O | Modbus, PCMCIA |
| TSX3722001 | Advanced Model with Analog & Counting | 100–240 V AC | Up to 192 I/O | Modbus, Uni-Telway |
| TSX3708001 | Entry-Level Base with 1 Slot | 100–240 V AC | 16I/12O | Uni-Telway |
– Popular Schneider Models (Across Product Lines) –
| Model | Product Type | Key Features |
|---|---|---|
| BMXP342020 | Modicon M340 PLC | Ethernet, 512 KB RAM, SD card slot |
| TM241CE40T | Modicon M241 Logic Controller | Embedded Ethernet, USB, CAN, and serial ports |
| ATV320U07M2C | Altivar Machine Drive | Variable speed drive, 0.75 kW, integrated Modbus |
| HMISTU855 | HMI Touchscreen | 5.7” display, USB/RS232/RS485, IP65 front panel |
| TSXPSY2600 | Power Supply Module | 24 V DC, 5 A output for TSX Premium PLCs |
| TSXP573634M | TSX Premium PLC CPU | 64 KB memory, 6 slots, integrated communication |
FAQ
– Frequently Asked Questions (FAQs) – QA Format
Q1: What type of I/O modules are compatible with TSX3710028DR1?
A1: The controller supports discrete I/O modules with screw terminals, both standard and half-size formats.
Q2: Does the TSX3710028DR1 support real-time applications?
A2: Yes, it includes a built-in real-time clock and supports master tasks, event tasks, and fast tasks.
Q3: How much memory is available for applications?
A3: It provides 14 Kwords of RAM and 15 Kwords of Flash memory for user applications.
Q4: Can the TSX3710028DR1 communicate using Modbus protocol?
A4: Yes, it supports Modbus RTU communication at 19.2 kbps over a serial port.
Q5: What is the maximum altitude for operating this controller?
A5: The device can operate up to an altitude of 2000 meters without performance degradation.
Q6: How is this unit protected against power disturbances?
A6: It offers immunity to microbreaks (20 ms) and complies with EMC standards such as IEC 1000-4-2 through 4-5.
Q7: Is the TSX3710028DR1 suitable for high-speed counting applications?
A7: While it supports standard Boolean operations at 0.25 µs, advanced counting should use the TSX3722 series with built-in 10 kHz channels.
Q8: What is the product’s physical footprint?
A8: The dimensions are 282.7 x 151 x 152 mm, and the unit weighs 1.91 kg.
