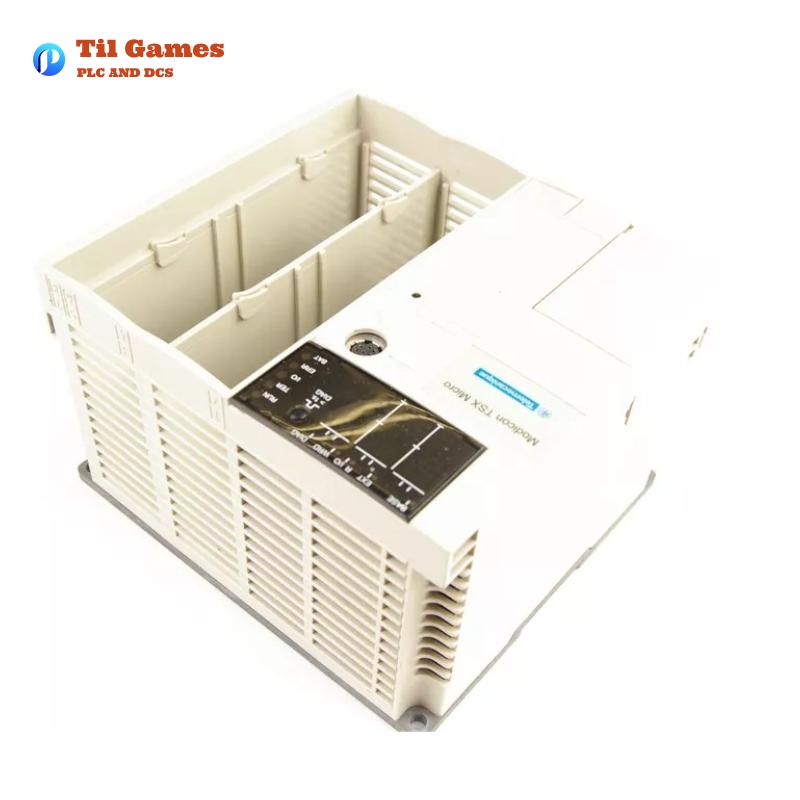

Schneider TSX3705001 TSX Micro PLC
Product Description
The Schneider Electric TSX3705001 is a member of the TSX Micro series of programmable logic controllers, specifically the TSX 37-05 model. It is a compact, modular PLC designed for discrete automation tasks, featuring a built-in 28-point I/O module and support for expansion. It integrates a processor, memory, power supply, and I/O modules into a single unit, offering both flexibility and scalability in industrial automation.
This PLC is suited for small to medium automation systems in machinery, packaging, manufacturing, and utility environments, where reliable logic control and modular expandability are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | TSX3705001 |
| Product Series | TSX Micro Series |
| Processor | Integrated CPU with real-time processing |
| Memory | 11 Kwords RAM + Flash EPROM backup |
| Built-in I/O | 28 I/O (16 Digital Inputs + 12 Relay Outputs) |
| Input Voltage | 100–240 V AC |
| Output Type | Relay |
| Backup Memory | Flash EPROM |
| Expansion Capability | 1 standard module or 2 half-format modules |
| Max Digital I/O | 92 points |
| Communication Ports | RS232/RS485 (UNI-TELWAY, Modbus support) |
| Programming Software | PL7 Micro |
| Mounting | DIN rail or panel mounting |
| Cooling | Natural or optional forced ventilation |
| Operating Temperature Range | 0°C to 60°C |
| Dimensions (W x H x D) | 170.3 x 151 x 152 mm |
| Weight | 1.4 kg |
Product Features
-
Integrated I/O: 16 digital inputs + 12 relay outputs in one compact unit.
-
Modular Expansion: Supports 1 full-size or 2 half-size I/O modules.
-
Reliable Memory: 11 Kwords RAM with Flash EPROM backup.
-
Versatile Communication: Supports Modbus, UNI-TELWAY, and character mode.
-
DIN Rail Mounting: Quick installation and maintenance.
-
Compatible with a wide variety of discrete, analog, and counter modules.
-
Rugged Construction: Industrial-grade durability with wide temperature tolerance.
Product Advantages
-
Compact Design: Saves space in control cabinets.
-
Modular Expansion: Easy to scale as system grows.
-
Built-in I/O: Eliminates need for additional modules in many applications.
-
Easy Programming: Supports Schneider’s PL7 Micro software.
-
Cost-Effective: Ideal for budget-sensitive automation applications.
-
Remote I/O Capability: Works with remote modules like TSX STZ10 and AS-i.
Applications
-
Packaging Machinery
-
Material Handling Systems
-
HVAC Control Panels
-
Water and Wastewater Plants
-
Textile Machines
-
Conveyor and Sorting Systems
-
Utility Infrastructure Monitoring
-
Small Process Automation
Recent Reports / News Headlines
-
“Schneider TSX Micro Series Gains New Life in Retrofit Applications with TSX 3705 Reliability”
-
“Industrial Users Opt for TSX3705001 in Compact Machine Control Designs”
-
“PLCs Still in the Game: Why Schneider’s TSX3705 Remains Popular Among OEMs”
Recommended Related Models (Same Series)
| Model Number | Description | Built-in I/O | Expansion Slots |
|---|---|---|---|
| TSX3708056DR1 | TSX 37-08 PLC, 2×28 I/O modules | 32 Inputs, 24 Outputs | 1 standard or 2 half |
| TSX3710001 | TSX 37-10 PLC, Real-Time Clock | Varies | Supports mini extension |
| TSX3721001 | TSX 37-21 Modular PLC, no integrated I/O | None | Modular + Communication |
| TSX3722001 | TSX 37-22 Modular PLC + Analog + Counting | None | Modular + Advanced I/O |
| TSX3705002 | Variant of TSX 37-05 with DC power input | 16I / 12O | 1 standard or 2 half |
| TSX3705101 | TSX 37-05 with integrated communication option | 16I / 12O | Communication-enabled |
Recommended Popular Schneider PLC Models
| Model Number | Description | I/O Capacity | Communication | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| M221CE24T | Modicon M221 Logic Controller | 24 I/O | Ethernet/USB | 110 x 90 x 85 | 0.6 kg |
| TM221C40T | Modicon M221 with 40 I/O | 24DI / 16DO | USB, Ethernet | 142.5 x 90 x 85 | 0.8 kg |
| TM241CE40T | Modicon M241 Performance PLC | 40 I/O | CANopen, Ethernet | 152.2 x 100 x 91.5 | 0.9 kg |
| TM258LF42DR | Modicon TM258 Logic Controller | 42 I/O | Ethernet, CAN | 214.5 x 100 x 91.5 | 1.2 kg |
| TSX3722001 | Modular TSX 37-22 with analog/counting | Modular | Modbus, UNI-TELWAY | 170.3 x 151 x 152 | 1.4 kg |
| TM172DCL30R | HVAC Controller with Display | 30 I/O | Modbus, HMI | 132 x 100 x 54 | 0.5 kg |
FAQ
FAQ – Frequently Asked Questions
Q1: What is the built-in I/O configuration of the TSX3705001?
A1: It features 16 digital inputs and 12 relay outputs.
Q2: Can I expand the TSX3705001 with analog modules?
A2: Yes, it supports analog I/O in half-format modules in the available slot.
Q3: What is the maximum digital I/O capacity?
A3: The maximum is 92 discrete I/O when expanded with a 64-channel module.
Q4: What programming software is compatible with this PLC?
A4: Schneider PL7 Micro software is used for programming the TSX3705001.
Q5: What types of communication protocols are supported?
A5: UNI-TELWAY, Modbus (Master/Slave), and character string mode.
Q6: Does the TSX3705001 include memory backup?
A6: Yes, it includes Flash EPROM for application backup.
Q7: How is the PLC mounted?
A7: It can be mounted on a DIN rail or directly onto a panel.
Q8: Is the TSX3705001 suitable for harsh industrial environments?
A8: Yes, it operates in temperatures up to 60°C and supports optional ventilation.
