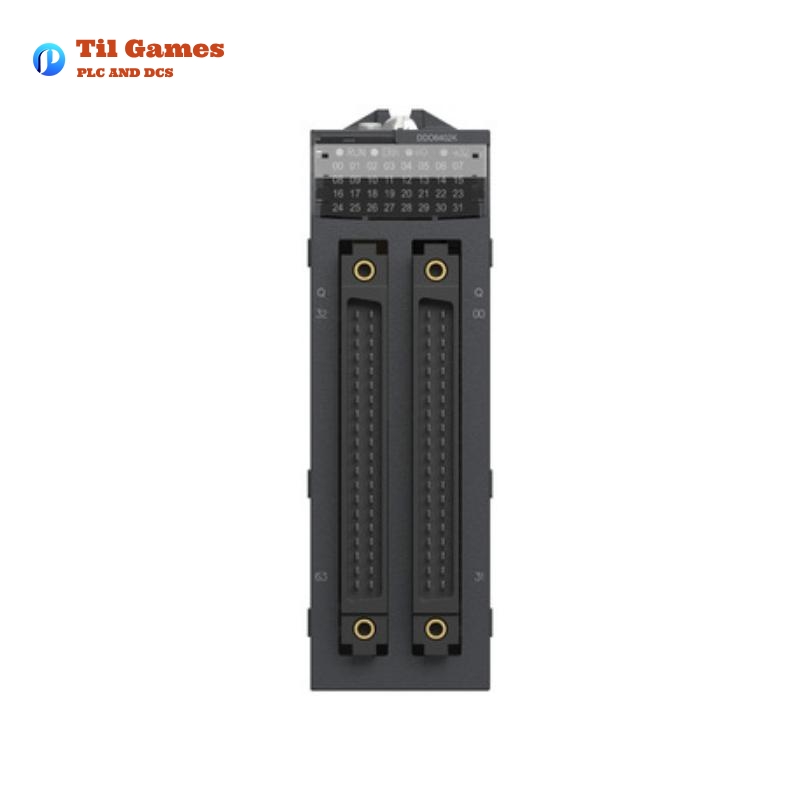

Schneider BMXDO6402K Discrete Output Module

Schneider BMXDO6402K Discrete Output Module

Manufacturer:Schneider

Product Number:BMXDO6402K

Product Type:Discrete Output Module

Origin:France

Dimensions:160 x 100 x 35 mm

Weight:0.15 kg

Views:6

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/BMXDO6402K-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXDO6402K-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXDO6402K-4-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXDO6402K.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Schneider BMXDO6402K Discrete Output Module

Product Description:

The Schneider BMXDO6402K is part of the Modicon X80 series, designed for use with Modicon M580 and M340 Programmable Automation Controllers (PACs). It is a discrete output module that features 64 outputs with sink (positive) logic, ideal for medium to large process applications. This module operates with a voltage range of 19V DC to 30V DC, providing high-quality, reliable performance with protection features like reverse polarity protection, external short-circuit protection, overload protection, and overvoltage protection. Additionally, it offers a Mean Time Between Failures (MTBF) of 159,924 hours, ensuring durability and long-term reliability in industrial environments.

Key Features:

  • Voltage Range: 19V DC to 30V DC

  • Current Consumption: 160 mA at 3.3V DC (typical)

  • Current Per Output: 0.125 A

  • Maximum Current Per Module: 6.4 A

  • Protection Types: Reverse polarity, short-circuit, overload, and overvoltage protection

  • MTBF: 159,924 hours

  • Operating Temperature: 0°C to 60°C (32°F to 140°F)

  • IP Rating: IP20

  • Vibration Resistance: 3 gn

  • Shock Resistance: 30 gn

  • Weight: 0.15 kg (0.33 lb)

Technical Specifications Table

Parameter Specification
Discrete Outputs 64
Output Logic Positive
Output Voltage Range 19V DC to 30V DC
Output Current (per channel) 0.125 A
Maximum Current (module) 6.4 A
Typical Current Consumption 160 mA at 3.3V DC
Power Dissipation 6.85 W
Response Time (Output) 1.2 ms
Paralleling of Outputs Yes, 3 outputs maximum
Insulation Resistance > 10 MΩ at 500V DC
Voltage Detection Threshold < 14V DC (pre-actuator fault), > 18V DC (state 0)
Overload Protection Electronic circuit breaker (0.125 A to 0.185 A)
Overvoltage Protection Transil Diode
Dimensions (W x H x D) 160 mm x 100 mm x 35 mm
Weight 0.15 kg
Environmental Conditions Humidity: 5% to 95% (non-condensing), Operating altitude: 0-2000 m
Certifications EAC, CSA, UL, CE, RCM
Compliant Standards EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
Vibration Resistance 3 gn
Shock Resistance 30 gn

Advantages:

  • High Reliability: With an MTBF of 159,924 hours, the BMXDO6402K is built for long-term durability in harsh industrial environments.

  • Comprehensive Protection: Equipped with reverse polarity, short-circuit, overload, and overvoltage protections, ensuring safe operation even under adverse conditions.

  • Flexible and Scalable: Offers 64 outputs with positive logic and can be expanded to meet the needs of medium to large applications, while enabling paralleling of outputs for added flexibility.

  • Ease of Integration: Its compatibility with Modicon M580 and M340 PACs allows easy integration into existing automation systems, reducing maintenance and training costs.

  • Compact Design: Its compact size of 160 mm x 100 mm x 35 mm makes it easy to install in tight spaces.

Applications:

  • Industrial Automation: The BMXDO6402K is suitable for a variety of process control and automation applications, especially in medium to large-scale industries such as manufacturing, automotive, and energy.

  • Control Systems: Perfect for controlling actuators, sensors, and other devices that require discrete output signals.

  • Process Monitoring: Can be used for real-time monitoring and control in processes that demand high reliability.

Related Models (Modicon X80 Series)

Model Description Outputs Voltage Range Current Per Output Maximum Current MTBF
BMXDO6401K 64-Channel Discrete Output Module 64 19V to 30V DC 0.1 A 6.4 A 150,000 H
BMXDO6410K 10-Channel Discrete Output Module 10 19V to 30V DC 0.125 A 1.25 A 155,000 H
BMXDO6424K 24-Channel Discrete Output Module 24 19V to 30V DC 0.1 A 2.4 A 148,000 H
BMXDO6432K 32-Channel Discrete Output Module 32 19V to 30V DC 0.125 A 4.0 A 160,000 H
BMXDO6448K 48-Channel Discrete Output Module 48 19V to 30V DC 0.125 A 6.0 A 150,000 H
BMXDO6456K 56-Channel Discrete Output Module 56 19V to 30V DC 0.125 A 7.0 A 155,000 H

Popular Schneider Models

Model Description Outputs Voltage Range Current Per Output Maximum Current MTBF
BMXAMI0810 Analog Input Module 8 0 to 10V DC 4-20 mA 0.125 A 150,000 H
BMXAMM0600 High-Level Analog Input Module 6 0 to 20 mA 4-20 mA 0.1 A 160,000 H
BMXAMO0210 Analog Output Module 2 0 to 10V DC 0.1 A 0.2 A 155,000 H
BMXART0414 Low-Level Analog Input Module 4 0 to 10V DC 4-20 mA 0.15 A 160,000 H
BMXART0814 Low-Level Analog Input Module 8 0 to 10V DC 4-20 mA 0.2 A 160,000 H
BMXCPS3500H Power Supply Module 24V DC 150,000 H
FAQ

FAQ

Q1: What is the typical application for the BMXDO6402K?

  • The BMXDO6402K is typically used in industrial automation systems, especially in medium to large-scale processes requiring discrete outputs, such as controlling actuators and sensors.

Q2: Can the outputs be paralleled?

  • Yes, the module supports output paralleling, with a maximum of 3 outputs.

Q3: What is the protection type for the BMXDO6402K?

  • The BMXDO6402K offers reverse polarity protection, external short-circuit protection, overload protection, and overvoltage protection.

Q4: What is the operating temperature range for the BMXDO6402K?

  • The module operates within a temperature range of 0°C to 60°C (32°F to 140°F).

Q5: How is the BMXDO6402K mounted?

  • The module is designed for easy installation on a DIN rail, which is common in industrial settings.

Q6: What certifications does the BMXDO6402K have?

  • The module is certified by EAC, CSA, UL, CE, and RCM.

Q7: What is the response time of the BMXDO6402K on output?

  • The response time for output is 1.2 milliseconds.

Q8: What is the MTBF of the BMXDO6402K?

  • The MTBF (Mean Time Between Failures) of the module is 159,924 hours.
