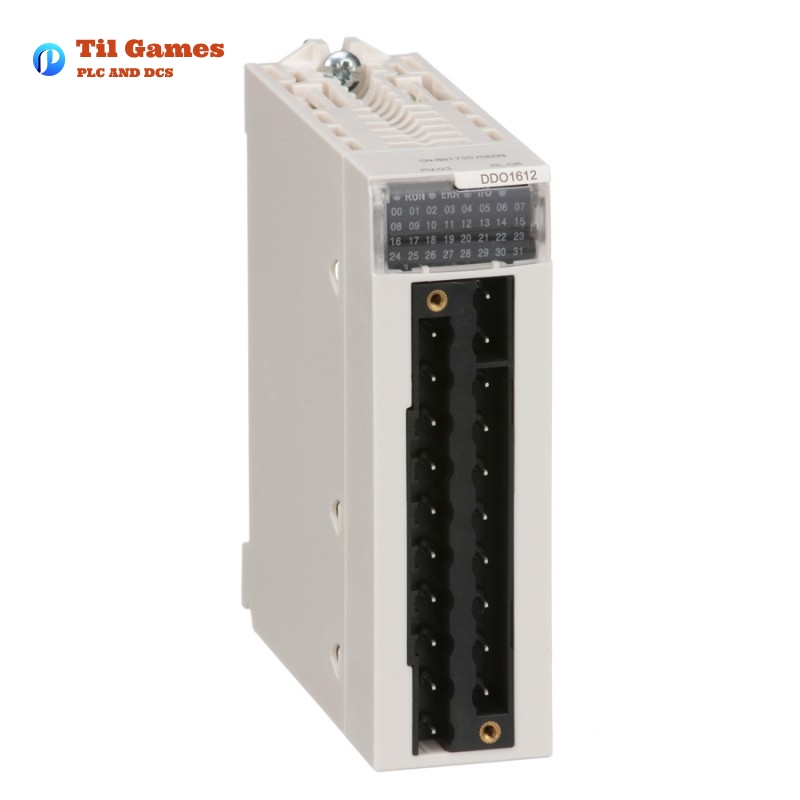

Schneider BMXDDO1612 Discrete Output Module

Schneider BMXDDO1612 Discrete Output Module

Manufacturer:Schneider

Product Number:BMXDDO1612

Product Type:Discrete Output Module

Origin:France

Dimensions:160 x 100 x 35 mm

Weight:0.12 kg

Views:4

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/BMXDDO1612-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXDDO1612-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXDDO1612-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXDDO1612-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Schneider BMXDDO1612 Discrete Output Module

The Schneider Electric BMXDDO1612 Discrete Output Module is part of the Modicon X80 range, which is designed for use with the Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module is engineered for industrial applications, offering 16 solid-state outputs with a negative logic. It operates with a 24V DC output voltage, ranging from 19V to 30V DC. The module is built for high-performance applications, ensuring robust and reliable operation across a variety of conditions.

The BMXDDO1612 offers an impressive array of protection features, including reverse polarity, external short-circuit, overload, and overvoltage protections. Additionally, it is equipped with a comprehensive diagnostic system that allows for easy monitoring of the module’s performance. With its IP20 protection rating, it is suitable for medium to large process applications, ensuring safety and durability even in harsh environments. The module weighs 0.12 kg, making it lightweight for its robust capabilities.

Product Parameters

Parameter Value
Product Type Discrete Output Module
Discrete Output Number 16
Discrete Output Type Solid State
Discrete Output Logic Negative
Discrete Output Voltage 24V DC (19V to 30V DC)
Discrete Output Current 0.5 A per channel
Current per Channel 0.625 A
Maximum Current per Module 10 A
Maximum Leakage Current 0.5 mA at state 0
Maximum Voltage Drop < 1.2 V at state 1
Insulation Resistance > 10 MΩ at 500V DC
Power Dissipation 2.26 W
Response Time on Output 1.2 ms
Paralleling of Outputs Yes, 3 maximum
Typical Current Consumption 79 mA at 3.3 V DC
MTBF Reliability 490,000 hours
Protection Type Reverse polarity, External short-circuit, Overload, Overvoltage
Maximum Tungsten Load 6 W
Switching Frequency 0.5/LI² Hz
Load Impedance (Ohmic) ≥ 48 Ohms
Status LED 1 Green LED (Module Operating)
Net Weight 0.12 kg (0.26 lb)
Dimensions 160 x 100 x 35 mm
IP Degree of Protection IP20
Vibration Resistance 3 gn
Shock Resistance 30 gn
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative Humidity 5%…95%, 131 °F (55 °C) without condensation
Operating Altitude 0…6561.68 ft (0…2000 m)
Dielectric Strength 1500 V AC 50/60 Hz 1 min, Output/Ground

Product Features

  • High Performance: Features 16 solid-state outputs with a maximum current of 0.5 A per channel, and a maximum current per module of 10 A.

  • Comprehensive Protection: Includes reverse polarity, external short-circuit, overload, and overvoltage protection mechanisms for enhanced safety.

  • Diagnostic System: Each channel has an LED indicator for operational status, ensuring ease of maintenance and troubleshooting.

  • Versatile Applications: Designed for medium to large process applications, ensuring compatibility with various industrial control systems.

  • Certification: Certified by EAC, Merchant Navy, CSA, RCM, CE, and UL, ensuring compliance with global standards.

  • Reliable Performance: With an MTBF of 490,000 hours, the module offers long-lasting reliability.

Product Advantages

  • Robust and Reliable: The module is built to withstand tough industrial conditions, ensuring stable performance even in demanding environments.

  • Reduced Maintenance Costs: The Modicon X80 series platform reduces training and spare parts inventory costs, ensuring long-term cost efficiency.

  • Simple Integration: Easily integrates with Modicon M580 and M340 PACs, providing a flexible and scalable solution for industrial control applications.

  • Compliant with Global Standards: Meets multiple international standards, making it suitable for a wide range of applications across industries.

  • High Durability: Designed to handle both vibration and shock, with a robust IP20 rating ensuring protection from environmental factors.

Applications

  • Industrial Automation Systems: Perfect for medium to large control systems that require reliable and safe output control.

  • Process Control: Used extensively in industries such as manufacturing, chemical, and energy, where precise and reliable control of outputs is essential.

  • Control Systems for Conveyors, Motors, and Actuators: Ideal for controlling machinery or systems where discrete outputs are needed.

  • Building Automation: Effective for controlling HVAC systems, lighting, and other critical systems in commercial or industrial buildings.

Related Schneider Models

Model Type Discrete Output Number Current Per Channel Power Dissipation IP Protection Dimensions
BMXDDO1612 Discrete Output Module 16 0.625 A 2.26 W IP20 160 x 100 x 35 mm
BMXDDO1616 Discrete Output Module 16 0.625 A 2.28 W IP20 160 x 100 x 35 mm
BMXDDO0808 Discrete Output Module 8 0.625 A 2.26 W IP20 160 x 100 x 35 mm
BMXDOO0808 Discrete Output Module 8 0.5 A 2.10 W IP20 160 x 100 x 35 mm
BMXDDO1624 Discrete Output Module 24 0.625 A 2.50 W IP20 160 x 100 x 35 mm
BMXDDO3232 Discrete Output Module 32 0.625 A 2.60 W IP20 160 x 100 x 35 mm

Popular Schneider Models

Model Type Discrete Output Number Current Per Channel Power Dissipation IP Protection Dimensions
BMXAMI0810 Analog Input Module 8 3.0 W IP20 160 x 100 x 35 mm
BMXAMM0600 Analog High-Level I/O Module 6 3.0 W IP20 160 x 100 x 35 mm
BMXAMO0210 Analog High-Level Output 2 2.8 W IP20 160 x 100 x 35 mm
BMXART0414 Analog Low-Level Input 4 2.6 W IP20 160 x 100 x 35 mm
BMXART0814 Analog Low-Level Input 8 3.0 W IP20 160 x 100 x 35 mm
BMXCPS3500H Power Supply Module 5.0 W IP20 160 x 100 x 35 mm
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the maximum current per channel for the BMXDDO1612 module?
A1: The maximum current per channel is 0.625 A.

Q2: What is the power dissipation of the BMXDDO1612 module?
A2: The power dissipation is 2.26 W.

Q3: What is the protection type included in the BMXDDO1612?
A3: The module includes reverse polarity protection, external short-circuit protection, overload protection, and overvoltage protection.

Q4: What is the ambient temperature range for operation?
A4: The ambient temperature range for operation is 0°C to 60°C (32°F to 140°F).

Q5: What is the IP protection rating of the BMXDDO1612?
A5: The module has an IP20 protection rating.

Q6: Can the outputs be paralleled?
A6: Yes, the outputs can be paralleled with a maximum of 3 outputs.

Q7: What is the response time on output?
A7: The response time on output is 1.2 ms.

Q8: What is the MTBF reliability of the BMXDDO1612?
A8: The module has a Mean Time Between Failure (MTBF) of 490,000 hours.
