Schneider BMXDAI1602 Discrete Input Module

Product Description

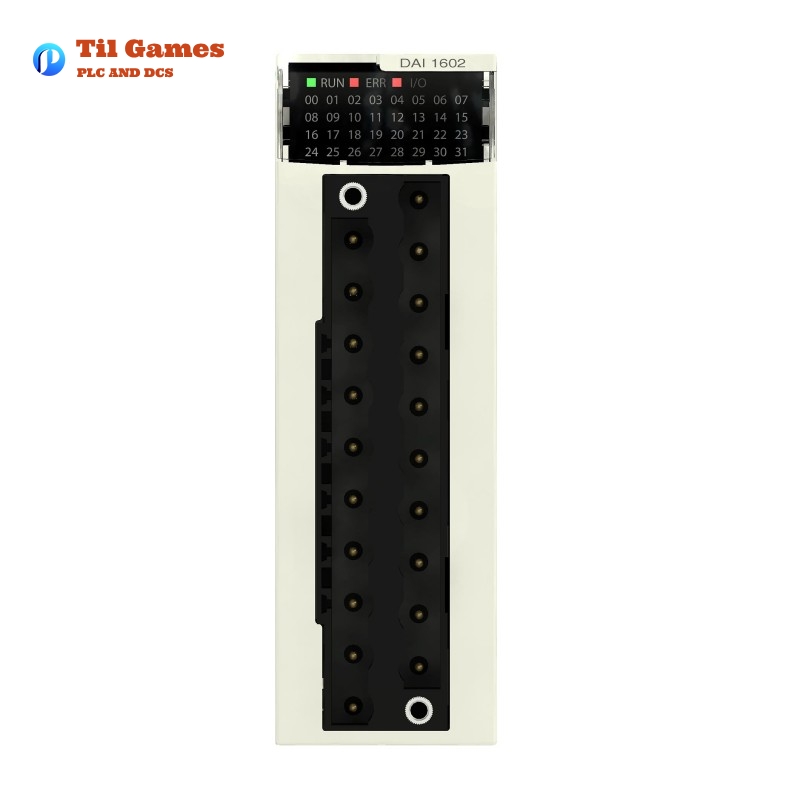

The Schneider BMXDAI1602 Discrete Input Module is a part of the Modicon X80 series, designed for industrial automation applications. This module offers 16 isolated discrete inputs, allowing reliable integration with a wide range of systems and devices. It is specifically designed to handle both AC and DC input voltages, providing flexibility in various operational environments. The module is housed in a compact form factor with IP20 protection, ensuring the electronics are shielded from dust and accidental contact.

The module is powered by a 24V AC supply and connects to the system through a 20-way removable terminal block. It occupies a single slot on the rack, making it an efficient choice for system integration in compact control panels.

Product Parameters

Parameter Specification
Product Type Discrete Input Module
Discrete Input Number 16
Input Type Isolated, Resistive
Input Voltage 24 V DC (positive or negative), 24 V AC
Input Current 3 mA (24 V AC), 3.9 mA (24 V DC)
Input Compatibility 2-wire/3-wire proximity sensors (IEC 60947-5-2, IEC 61131-2 Type 1)
Sensor Power Supply 20…26 V AC, 19…30 V DC
Current State 1 Guaranteed >= 2 mA AC, >= 2 mA DC
Current State 0 Guaranteed <= 1 mA AC, <= 0.5 mA DC
Input Impedance 6 kOhm
Insulation Resistance > 10 MOhm at 500 V DC
Power Dissipation 3 W
Response Time (AC Activation) 15 ms
Response Time (AC Deactivation) 20 ms
Paralleling of Inputs No
Typical Current Consumption 76 mA (3.3 V DC)
MTBF Reliability 1,125,000 hours
Protection Type 1 external fuse per group of channels (0.5 A fast blow)
Voltage Detection Threshold < 14 V AC/DC (sensor fault), > 18 V AC/DC (sensor OK)
Status LED 1 LED (Green) for module operating (RUN), 1 LED per channel (Green) for diagnostic, 1 LED (Red) for module error (ERR), 1 LED (Red) for I/O error
IP Protection IP20
Dimensions 160 x 100 x 35 mm
Net Weight 0.115 kg (0.254 lb)
Vibration Resistance 3 gn
Shock Resistance 30 gn
Ambient Temperature (Storage) -40 to 185 °F (-40 to 85 °C)
Ambient Temperature (Operation) 32 to 140 °F (0 to 60 °C)
Operating Altitude 0 to 6561.68 ft (0 to 2000 m) (2000 to 5000 m with derating factor)
Relative Humidity 5 to 95 % (131 °F / 55 °C without condensation)
Dielectric Strength 1500 V AC for 1 minute (primary/secondary)
Compliance 2014/35/EU (Low Voltage Directive), 2014/30/EU (Electromagnetic Compatibility)

Product Features

  • 16 isolated inputs: Provides greater flexibility for handling a variety of input signals, both AC and DC.

  • Wide input voltage range: Can handle both 24 V AC and 24 V DC inputs, providing compatibility with numerous industrial systems.

  • Compact design: The module fits into a single rack slot, saving space in your control system design.

  • IP20 protection: Offers reliable protection against dust and accidental contact, ensuring long-term durability.

  • Fast response times: Fast activation and deactivation response times (15 ms and 20 ms) ensure high-speed operation.

  • Flexible sensor compatibility: Compatible with 2-wire and 3-wire proximity sensors, allowing for easy integration in various industrial applications.

  • High reliability: MTBF of over 1.1 million hours ensures a high degree of system reliability.

Product Applications

  • Industrial control systems where discrete signals are used for controlling processes.

  • Factory automation where proximity sensors are required for object detection.

  • Process monitoring in environments requiring AC/DC input compatibility.

  • Machine control systems requiring discrete input from field devices like sensors and switches.

Product Advantages

  • Cost-effective integration: Enables integration with existing systems without the need for complex adaptations.

  • High reliability and durability: With a high MTBF and robust IP20 casing, the module is built to last, even in harsh industrial environments.

  • Ease of installation and maintenance: The removable terminal block and clear diagnostic LEDs simplify installation and troubleshooting.

Recommended Schneider Models

Model Input Type Number of Inputs Input Voltage Response Time Dimensions (mm) Weight (kg)
BMXDAI1602 Isolated 16 24 V AC/DC 15 ms 160 x 100 x 35 0.115
BMXDAI3201 Isolated 32 24 V AC/DC 15 ms 160 x 100 x 35 0.115
BMXDAI0401 Isolated 4 24 V AC/DC 15 ms 160 x 100 x 35 0.115
BMXDAI0801 Isolated 8 24 V AC/DC 15 ms 160 x 100 x 35 0.115
BMXAMI0810 Analog 8 0-10 V DC 20 ms 160 x 100 x 35 0.115
BMXART0414 Low-Level 4 4-20 mA 10 ms 160 x 100 x 35 0.115

Popular Schneider Models

Model Type Input Voltage Response Time Dimensions (mm) Weight (kg)
Modicon M241 CPU Module 24 V DC 20 ms 200 x 150 x 70 0.500
Modicon X80 Input/Output 24 V AC/DC 15 ms 160 x 100 x 35 0.115
Modicon M251 CPU Module 24 V DC 20 ms 200 x 150 x 70 0.500
Modicon X80 Analog I/O 24 V DC 20 ms 160 x 100 x 35 0.115
Modicon X80 Digital I/O 24 V DC 15 ms 160 x 100 x 35 0.115
Modicon TM3 Modular I/O 24 V DC 20 ms 140 x 90 x 35 0.200
FAQ

FAQ

Q1: What is the input voltage range of the BMXDAI1602?
A1: The BMXDAI1602 supports both 24 V DC (positive or negative) and 24 V AC input voltages.

Q2: How many inputs does the BMXDAI1602 module have?
A2: The module features 16 isolated inputs.

Q3: What is the power consumption of the BMXDAI1602 module?
A3: The typical current consumption is 76 mA at 3.3 V DC.

Q4: What type of sensors is the BMXDAI1602 compatible with?
A4: The module is compatible with 2-wire and 3-wire proximity sensors, both AC and DC.

Q5: What is the maximum response time for input activation and deactivation?
A5: The AC activation response time is 15 ms, and the AC deactivation response time is 20 ms.

Q6: What is the IP rating of the BMXDAI1602?
A6: The BMXDAI1602 has an IP20 protection rating.

Q7: What is the MTBF reliability of the BMXDAI1602 module?
A7: The module has an MTBF of 1,125,000 hours.

Q8: What is the temperature range for operation?
A8: The operating temperature range is between 0°C and 60°C (32°F to 140°F).
