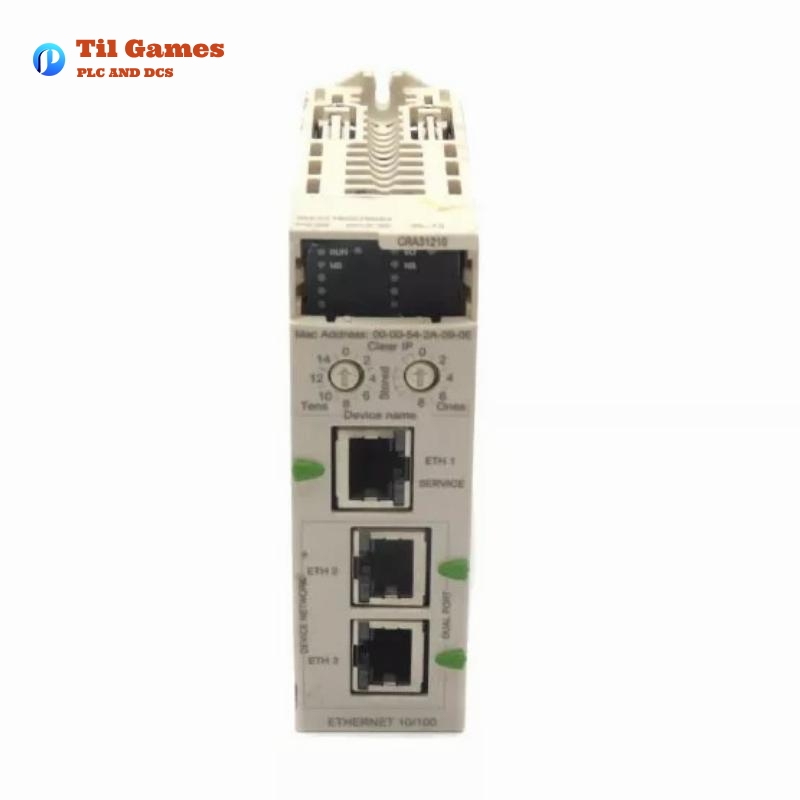

Schneider BMXCRA31210C Ethernet I/O Head Module

The Schneider BMXCRA31210C Ethernet I/O Head Module is part of the Modicon X80 range, designed for use with Modicon M580 and Modicon Quantum Programmable Automation Controllers (PAC). This module provides an efficient and reliable solution for medium to large-scale process applications, offering Ethernet-based communication and seamless integration with remote I/O modules.

Product Overview

The BMXCRA31210C serves as an Ethernet Remote Input-Output (RIO) drop adaptor, featuring 3 Ethernet ports arranged in a daisy chain loop topology. It integrates EtherNet/IP for device network communication and provides an EtherNet/IP service port for configuration and diagnostics. With a protective coating on its circuit board, this module is capable of operating in harsh industrial environments.

It supports a wide variety of I/O devices and modules, ensuring that data is collected from remote I/O head adaptors and is distributed to output modules as required. This Ethernet I/O head module is rated at IP20, making it suitable for a variety of industrial settings that require reliable communication and I/O capabilities.

Key Features and Advantages

  • Ethernet-Based Communication: Supports EtherNet/IP for high-speed communication and diagnostics, making it an ideal solution for real-time data transfer and control in industrial applications.

  • Harsh Environment Durability: The protective coating on the circuit board allows for use in industrial environments, providing durability and longer product life.

  • Modular Design: Compatible with multiple Schneider modules such as the BMXERT, BMXNOM, BMXEHC, among others, enabling flexibility in application.

  • Easy Integration: Supports multiple communication protocols including Modbus TCP and CIP Explicit messaging, enhancing system integration.

  • Diagnostic Capabilities: Provides real-time diagnostics for remote I/O devices, ensuring operational efficiency and quick troubleshooting.

  • Compact and Flexible: Standard module format and compact size make it easy to integrate into existing systems.

Applications

  • Remote I/O System Integration: Suitable for applications requiring distributed I/O across large facilities, where reliable communication and control of remote devices are essential.

  • Industrial Process Automation: Ideal for controlling and monitoring complex industrial processes such as manufacturing lines, power plants, and chemical processes.

  • Energy Management Systems: Used in energy distribution systems to collect and manage data from remote energy measurement devices.

  • Building Automation: Perfect for monitoring and controlling building systems such as HVAC, lighting, and security.

Product Specifications

Parameter Value
Module Format Standard
Dimensions 87.5 x 32 x 100 mm
Weight 0.225 kg (0.496 lb)
Current Consumption 1200 mA
Input Voltage 3.3 V DC
Number of Ports 3
Communication Network IPv4
Transmission Rate 10/100 Mbit/s
Connector Type 3 RJ45
Functionality CCOTF, data collection, diagnostics
Port Ethernet Type 10/100BASE-TX
Quality of Service (QoS) Modbus TCP server, SNMP agent
Port Mirroring Yes
Ring Topology Support Yes
Cybersecurity Features Enable/Disable communication ports, Syslog support
Mounting Mode Rack-mounted
Relative Humidity 95% without condensation

Compatibility

  • Compatible with: BMXERT, BMXNOM, BMXEHC, counter modules, analog channel modules (up to 256 channels), motion control modules, and more.

Recommended Related Models

Model Key Feature Compatible Modules Transmission Rate
BMXERT Multifunction Input Module Up to 1024 discrete channels 10/100 Mbit/s
BMXNOM Ethernet Module I/O devices, Ethernet-based communication 10/100 Mbit/s
BMXEHC Counter Module Frequency input, SSI encoder 10/100 Mbit/s
BMXEHC Time-Stamping Module I/O systems with time-stamps 10/100 Mbit/s
BMXIACS Analog I/O Module Up to 256 analog channels 10/100 Mbit/s
BMXCPS Power Supply Module Supports Modicon X80 series 10/100 Mbit/s

Schneider Popular Models

Model Key Feature Communication Network Transmission Rate
BMXAMI0810 Analog Input Module Modbus TCP, EtherNet/IP 10/100 Mbit/s
BMXART0414 Low Level Analog Input Module Modbus TCP, EtherNet/IP 10/100 Mbit/s
BMXAMM0600 Analog High Level I/O Module Modbus TCP, EtherNet/IP 10/100 Mbit/s
BMXAMO0210 Analog High Level Output Module Modbus TCP, EtherNet/IP 10/100 Mbit/s
BMXCRT0600 Digital I/O Module Modbus TCP, EtherNet/IP 10/100 Mbit/s
BMXCPS3500H Power Supply Module Ethernet 10/100 Mbit/s
FAQ

FAQs

  1. What is the maximum number of I/O channels supported by the BMXCRA31210C?

    • The module can support up to 1024 discrete channels and 256 analog channels.

  2. What are the primary applications for the BMXCRA31210C Ethernet I/O Head Module?

    • This module is ideal for remote I/O integration in industrial processes, energy management systems, and building automation.

  3. Can the BMXCRA31210C be used in harsh environments?

    • Yes, it is designed with a protective coating on the circuit board to operate effectively in harsh industrial environments.

  4. What communication protocols does the BMXCRA31210C support?

    • The module supports EtherNet/IP, Modbus TCP, and CIP Explicit messaging for efficient and flexible communication.

  5. How is the BMXCRA31210C mounted?

    • The module is rack-mounted and can be installed using screws for secure attachment.

  6. What is the power consumption of the BMXCRA31210C?

    • The module has a current consumption of 1200 mA and operates on a 3.3 V DC input voltage.

  7. What is the network communication status LED indication for the BMXCRA31210C?

    • The network communication status is indicated by a green/red LED, which shows the health of the Ethernet connection.

  8. How many Ethernet ports does the BMXCRA31210C have?

    • The module features 3 Ethernet ports, which support RSTP (Ring topology) and can be used for device network and service connections.
