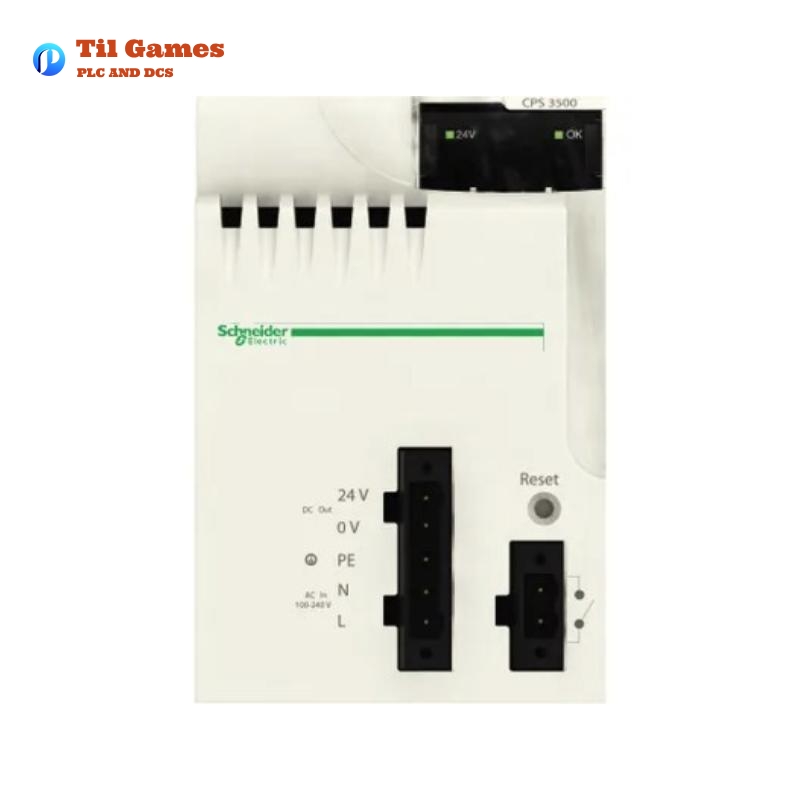

Schneider BMXCPS3500H Power Supply Module
The Schneider BMXCPS3500H Power Supply Module is designed as part of the Modicon X80 series, which is a versatile and robust platform for the Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module is engineered for use in harsh environments, making it an ideal choice for industrial and automation applications that require reliable performance under extreme conditions.
Product Description
The Schneider BMXCPS3500H power supply module operates with a primary voltage of 100V to 240V AC, making it adaptable to various industrial power sources. It delivers a secondary power of 31.2W at 24V DC, with a current output of 4.5A at 3.3V DC. The module is designed to withstand tough environmental conditions, including a wide operating temperature range of -25°C to +70°C. This product is particularly suited for medium to large process applications, ensuring high reliability in challenging industrial environments.
The BMXCPS3500H power supply module is equipped with key features such as alarm relays, protective earth, and sensor connections. It has a IP20 protection rating, which ensures it is dust-resistant and safe to use in moderate environments. Additionally, it is certified by multiple international standards, including ATEX, IEC-Ex, CE, RCM, CSA, UL, and others, confirming its safety and compliance with global regulations.
Product Features
-
Primary Voltage: 100V to 240V AC
-
Secondary Power: 31.2W at 24V DC
-
Current at Secondary Voltage: 4.5A at 3.3V DC
-
Power Dissipation: 8.5W
-
Temperature Range: -25°C to +70°C
-
Protection Type: Internal fuse, overload protection, short-circuit protection
-
Size: 99 x 68 x 104 mm
-
Weight: 0.36 kg
-
Certification: ATEX, IEC-Ex, CE, RCM, CSA, UL
-
IP Rating: IP20
Product Advantages
-
Wide Temperature Range: The module can operate in extreme temperatures, from -25°C to +70°C, making it suitable for use in harsh environments.
-
High Reliability: The BMXCPS3500H boasts a MTBF reliability of 4,300,000 hours, ensuring long-term operational stability.
-
Global Certification: Certified by ATEX, IEC-Ex, CE, RCM, CSA, and UL, the module complies with the latest international standards for safety and electromagnetic compatibility.
-
Compact and Robust Design: With a small footprint (99 x 68 x 104 mm) and a weight of only 0.36 kg, this module is both space-efficient and easy to install in industrial control systems.
-
Overload and Short-Circuit Protection: It provides built-in protections, reducing the risk of damage during operation.
Product Applications
The BMXCPS3500H Power Supply Module is well-suited for the following applications:
-
Industrial Automation: Ideal for powering Programmable Automation Controllers (PAC) in process control systems.
-
Harsh Environments: Can operate in tough environments such as factories, manufacturing facilities, and outdoor locations.
-
Energy Management: Its reliable performance makes it a key component in power management systems.
-
Medium to Large Scale Applications: Perfect for medium to large process applications, ensuring consistent performance and minimizing downtime.
