Schneider BMXART0414 Low Level Analog Input Module

Schneider BMXART0414 Low Level Analog Input Module

Manufacturer:Schneider

Product Number:BMXART0414

Product Type:Low Level Analog Input Module

Origin:France

Dimensions:98 x 33 x 104 mm

Weight:0.135 kg

Views:2

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/BMXART0414-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXART0414-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXART0414-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXART0414-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

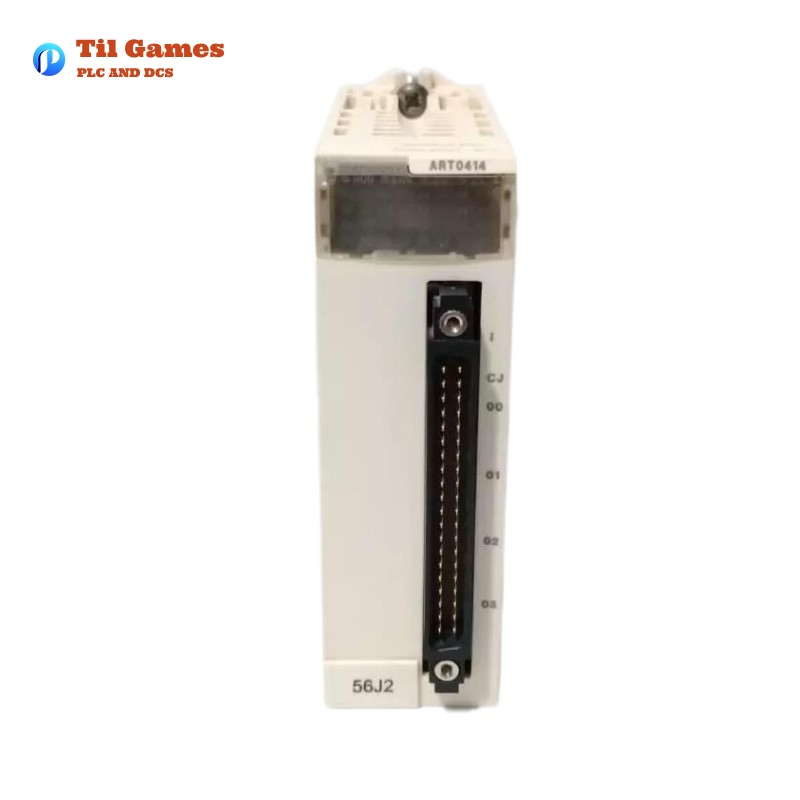

Schneider BMXART0414 Low Level Analog Input Module

Product Introduction:

The Schneider BMXART0414 is a low-level analog input module designed for use in the Modicon X80 series. This module is part of Schneider Electric’s comprehensive range of I/O modules, providing robust performance and high flexibility for various industrial automation applications. It supports a variety of input types, including voltage and resistance measurements, with a focus on providing reliable and precise data collection in industrial environments.

Product Parameters:

Parameter Specification
Product Type Analog Input Module
Model BMXART0414
Analog Input Number 4
Input Level Low Level
Input Types Voltage +/- 1.28 V, Voltage +/- 160 mV, Voltage +/- 320 mV, Voltage +/- 40 mV, Voltage +/- 640 mV, Voltage +/- 80 mV, Resistor 400 Ohm 2, 3, 4 wires, Temperature probes, Thermocouples
Input Isolation Isolated
Resolution 16 bits Sigma Delta
Common Mode Rejection 120 dB (50/60 Hz)
Differential Mode Rejection 60 dB (50/60 Hz)
Cold Junction Compensation External (Pt100 probe)
Measurement Accuracy +/- 0.1 to +/- 5 °C (varies by input type and temperature)
Measurement Resolution 0.1 °C
Conversion Type Sigma Delta, 16-bit
MTBF Reliability 1,400,000 hours
Temperature Drift 25 ppm/°C (varies by input type)
Nominal Read Cycle Time 400 ms with temperature probe, 200 ms with thermocouple
Status LED Indicators Green RUN LED, Red ERR LED, Channel Diagnostic LEDs
Dimensions 98 x 33 x 104 mm
Weight 0.135 kg
Current Consumption 150 mA at 3.3 V DC, 40 mA at 24 V DC
Operating Temperature 0 °C to 60 °C
Storage Temperature -40 °C to 85 °C
IP Protection Rating IP20
Certification UL, CE, EAC, CSA, RCM, Merchant Navy
Directives Compliance 2014/35/EU (Low Voltage Directive), 2014/30/EU (EMC)

Key Features:

  • High Precision: The BMXART0414 provides high-precision measurement, with a 16-bit Sigma Delta converter for accurate signal conversion.

  • Wide Range of Inputs: It supports multiple input types, including various voltage ranges, resistance, and multiple temperature probes and thermocouples.

  • Flexible Isolation: Isolated inputs provide enhanced protection against electrical interference.

  • Cold Junction Compensation: The external Pt100 probe ensures reliable temperature measurements for thermocouples.

  • Durable and Reliable: The module is designed to operate in harsh environments, with resistance to vibration and shock, and a high MTBF rating of 1.4 million hours.

Advantages:

  • Versatility: Supports a wide range of input types, making it suitable for diverse industrial applications, from temperature measurement to process control.

  • High Reliability: The module is built for long-lasting operation with a high level of durability and protection against electrical faults.

  • Accurate and Fast Measurements: The low-level input and high-resolution conversion offer precise data for critical processes.

  • Ease of Integration: Designed for seamless integration into the Modicon X80 series, it ensures ease of use in Schneider Electric systems.

Applications:

  • Industrial Automation: Suitable for industries such as manufacturing, chemical processing, and energy, where precise measurement of temperature and voltage is critical.

  • Process Control: Used in applications where temperature and voltage readings need to be monitored and controlled in real-time.

  • Energy Management: Helps in energy optimization by providing accurate readings of electrical parameters.

  • Environmental Monitoring: Ideal for applications involving temperature and environmental data collection.

Product Reports (Latest):

  • “Schneider Electric Enhances Temperature Monitoring with BMXART0414 Low-Level Analog Input Module”

  • “Innovations in Industrial Automation: Schneider Electric’s BMXART0414 Delivers Precision for Critical Applications”

  • “Optimizing Process Control with Schneider Electric’s BMXART0414 Low-Level Analog Input Module”

Recommended Related Models:

Model Input Types Key Features
BMXART0412 Voltage, Temperature, Thermocouples Similar to BMXART0414, with lower input range
BMXART0800 Voltage +/- 10 V, Temperature probes, Thermocouples Supports higher voltage levels and more inputs
BMXARTA0210 Voltage, Resistance, Temperature, Thermocouples Enhanced temperature range, higher resolution
BMXART0401 Voltage +/- 2 V, Thermocouples Compact version for smaller scale applications
BMXART0500 Voltage, Resistance, Thermocouples Includes additional filtering capabilities
BMXART0600 Voltage, Resistance, Temperature probes Expanded input types, more digital I/O options

Popular Schneider Models:

Model Input Types Key Features
BMXAMI0810 Voltage, Current, Temperature High-density input module for broader application
BMXAMM0600 Voltage, Current, Temperature Advanced analog and digital I/O for industrial control
BMXAMO0210 Voltage, Current High-level output module with fast response time
BMXAAI0100 Voltage, Temperature Dedicated to high-accuracy measurements
BMXABA100 Current, Voltage Supports power measurement applications
BMXAAI1220 Temperature, Voltage, Resistance Ideal for energy and environmental monitoring
