Product Overview

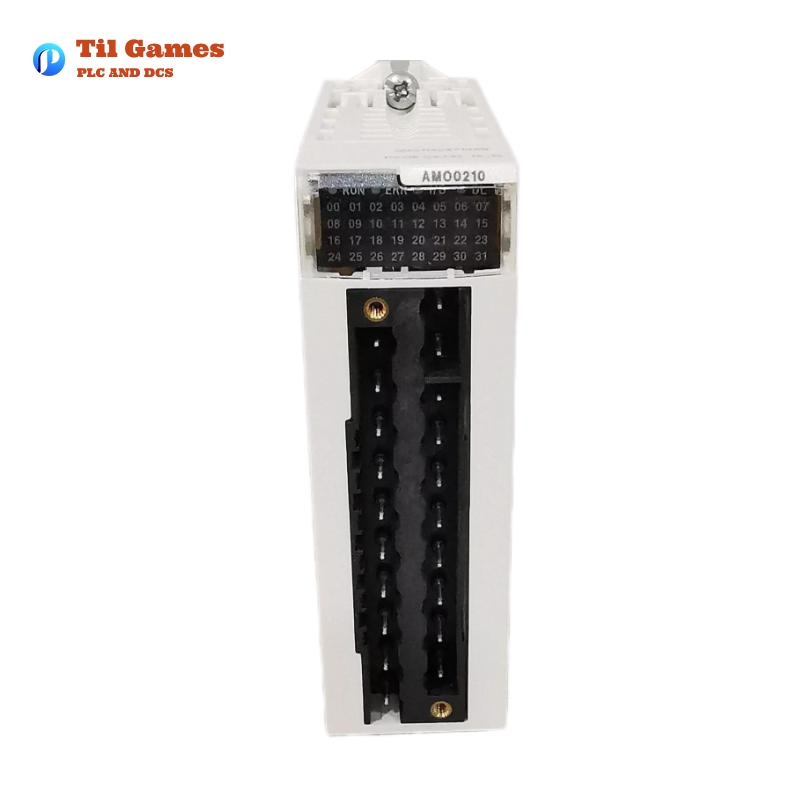

The Schneider BMXAMO0210 is an analog output module designed for high-level output control. It is part of the Modicon X80 series, specifically engineered to deliver precision in industrial automation systems. The module features analog current and voltage outputs, optimized for a variety of industrial applications where high-accuracy and reliable signal transmission are essential.
Product Features
-
Output Types: The module supports three analog output types: 0…20 mA, 4…20 mA, and ±10 V. This provides flexibility in applications that require different output standards.
-
High-Level Output: The module provides a high-level output, ensuring stable signal transmission over longer distances.
-
Conversion Speed: With a conversion time of ≤ 1 ms, the module ensures quick response times.
-
Factory Calibration: The module is factory calibrated, which ensures reliability and consistency across installations.
-
Robust Isolation: Features a high isolation voltage (1400 V DC) between channels and ground, ensuring electrical safety and preventing cross-interference.
-
EMI/RFI Noise Rejection: The module provides 100 dB noise rejection from 100 kHz to 10 MHz, ensuring accurate signal transmission in environments with electromagnetic interference.
Product Specifications
| Feature | Details |
|---|---|
| Product Type | Analog Output Module |
| Electrical Connection | 20 ways, 1 connector |
| Isolation Between Channels | Isolated |
| Measurement Error | ≤ 0.2 % of full scale (0…60 °C), 0.1 % (25 °C) |
| Temperature Drift | 30 ppm/°C |
| Recalibration | Factory calibrated |
| Crosstalk Attenuation | 90 dB |
| EMI/RFI Noise Rejection | 100 dB (100 kHz to 10 MHz) |
| Isolation Voltage | 1400 V DC between channels and ground |
| Detection Type | Open circuit (0…20 mA, 4…20 mA), Short circuit (±10 V) |
| Load Impedance | <= 600 Ohm (0…20 mA, 4…20 mA), >= 1000 Ohm (±10 V) |
| Output Level | High level |
| Number of Outputs | 2 |
| Resolution | 15 bits + sign |
| Supply | Internal power supply via rack |
| Conversion Time | ≤ 1 ms |
| Maximum Conversion Value | ±11.25 V, 0…24 mA, 0…20 mA, 4…20 mA |
| Fallback Mode | Predefined, Configurable |
| MTBF Reliability | 1,300,000 hours |
| Operating Altitude | 0…6561.68 ft (0…2000 m), with derating factor from 2000 to 5000 m |
| Status LED | 1 Green RUN, 1 per channel (Green), 1 Red (ERR), 1 Red (I/O) |
| Net Weight | 0.144 kg (0.317 lb) |
| Power Consumption | 2.1 W (24 V DC typical), 2.8 W (24 V DC maximum) |
| Current Consumption | 150 mA (3.3 V DC), 110 mA (24 V DC) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Storage Temperature | -40…185 °F (-40…85 °C) |
| Operating Temperature | 32…140 °F (0…60 °C) |
| Relative Humidity | 5…95 % (131 °F/55 °C, no condensation) |
| IP Degree of Protection | IP20 |
| Certifications | CE, RCM, CSA, EAC, Merchant Navy, UL |
| Compliance Standards | EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
Dimensions and Weight
-
Dimensions: 93 x 33 x 104 mm
-
Weight: 0.144 kg
Product Advantages
-
High Accuracy: With a low measurement error of ≤ 0.2 % (0…60 °C) and factory calibration, the module ensures high precision in signal conversion.
-
Robust Electrical Protection: The high isolation voltage of 1400 V DC between channels and ground, along with EMI/RFI rejection, ensures stable and reliable performance in industrial environments.
-
Fast Response Time: The module’s quick conversion time of ≤ 1 ms makes it ideal for time-sensitive applications.
-
Wide Temperature Range: Capable of operating in temperatures from 0…60 °C, making it suitable for diverse industrial conditions.
Product Applications
-
Industrial Automation: The BMXAMO0210 is ideal for controlling and monitoring industrial equipment requiring precise analog output signals.
-
Process Control: Perfect for environments where accurate current and voltage outputs are needed, such as in chemical or manufacturing plants.
-
Energy Management Systems: Used in systems that require reliable data transmission and output for energy monitoring and control.
Latest Product Reports
-
“Schneider Electric Expands Industrial Automation Portfolio with BMXAMO0210 Analog Output Module”
-
“BMXAMO0210: A Game Changer for Process Control Applications”
-
“Schneider’s High-Level Output Module Boosts Performance in Harsh Industrial Environments”
Recommended Related Models
| Model | Product Type | Number of Outputs | Output Type | Resolution | Max Conversion Time | Key Feature |
|---|---|---|---|---|---|---|
| BMXAMO0211 | Analog Output Module | 2 | 0…20 mA, 4…20 mA | 15 bits + sign | ≤ 1 ms | Improved noise rejection |
| BMXAMO0220 | Analog Output Module | 4 | ±10 V | 15 bits + sign | ≤ 1 ms | Extended voltage range |
| BMXAMO0200 | Analog Output Module | 2 | 0…24 mA, 4…20 mA | 16 bits + sign | ≤ 1 ms | High power consumption handling |
| BMXAMO0202 | Analog Output Module | 2 | 0…20 mA, 4…20 mA | 16 bits + sign | ≤ 0.8 ms | Optimized for high-speed applications |
| BMXAMO0215 | Analog Output Module | 4 | ±10 V, 0…20 mA | 16 bits + sign | ≤ 1 ms | Enhanced accuracy for critical processes |
| BMXAMO0225 | Analog Output Module | 6 | 0…20 mA, 4…20 mA | 16 bits + sign | ≤ 1 ms | Multi-output capability for complex systems |
Popular Schneider Models
| Model | Product Type | Key Features | Certifications |
|---|---|---|---|
| BMXAMI0810 | Analog Input Module | High accuracy, up to 16-bit resolution | CE, UL, CSA |
| BMXAMM0600 | Analog High-Level I/O | Configurable outputs, 24-bit resolution | CE, UL, CSA |
| BMXDGI1010 | Digital Input Module | High-speed response, isolated inputs | CE, UL, CSA |
| BMXDGO1010 | Digital Output Module | Multiple digital output configurations | CE, UL, CSA |
| BMXAMI0812 | Analog Input Module | Advanced filtering, high resolution | CE, UL, CSA |
| BMXAIE0812 | Intelligent I/O Module | Supports advanced data processing and filtering | CE, UL, CSA |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum output range of the BMXAMO0210?
-
A1: The BMXAMO0210 supports output ranges of 0…20 mA, 4…20 mA, and ±10 V.
Q2: What is the conversion time of the BMXAMO0210?
-
A2: The module has a conversion time of ≤ 1 ms.
Q3: How is the BMXAMO0210 calibrated?
-
A3: The module is factory calibrated to ensure accuracy and reliability.
Q4: What is the isolation voltage between the channels?
-
A4: The isolation voltage between the channels and ground is 1400 V DC.
Q5: What is the operating temperature range?
-
A5: The operating temperature range is from 32…140 °F (0…60 °C).
Q6: How many analog outputs does the BMXAMO0210 have?
-
A6: The module has 2 analog outputs.
Q7: What certifications does the BMXAMO0210 have?
-
A7: The module is certified with CE, RCM, CSA, EAC, Merchant Navy, and UL.
Q8: Can the BMXAMO0210 handle EMI/RFI interference?
-
A8: Yes, the BMXAMO0210 has 100 dB EMI/RFI noise rejection from 100 kHz to 10 MHz.
