Schneider BMXAMM0600 Analog High Level I/O Module

Schneider BMXAMM0600 Analog High Level I/O Module

Manufacturer:Schneider

Product Number:BMXAMM0600

Product Type:Analog High Level I/O Module

Origin:France

Dimensions:93 x 33 x 104 mm

Weight:0.155 kg

Views:8

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description

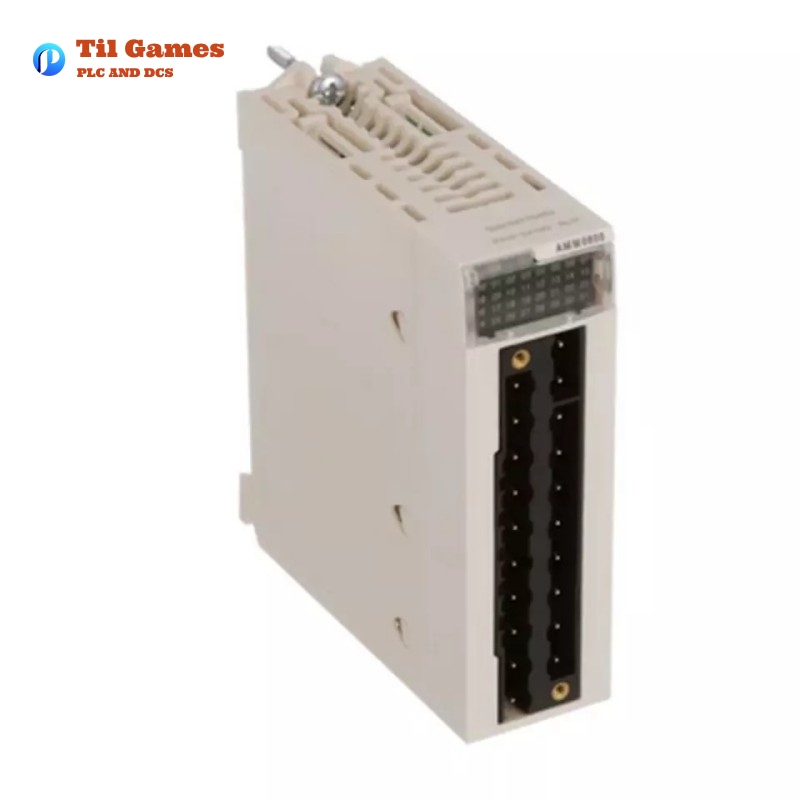

https://www.tilgames.com/wp-content/uploads/2025/04/BMXAMM0600-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXAMM0600-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXAMM0600-5.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXAMM0600-6.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Schneider BMXAMM0600 Analog High Level I/O Module

Product Description

The Schneider BMXAMM0600 Analog High Level I/O Module is part of Schneider Electric’s Modicon X80 series, designed to provide high-performance analog input and output functions. This module supports a wide range of input and output types and is equipped with high-precision conversion capabilities. It is ideal for applications requiring reliable and accurate analog signal processing, making it a key component in industrial automation systems.

Product Parameters

Parameter Specification
Product Type Analog High Level I/O Module
Electrical Connection 20 ways 1 connector
Isolation Between Channels Non-isolated
Input Level High level
Analog Input Number 4
Analog Input Types 0…20 mA, 4…20 mA, +/-10 V, 0…10 V, 0…5 V, 1…5 V
Analog Input Resolution 12 bits (0…20 mA), 12 bits (0…5 V), 12 bits (1…5 V), 13 bits (0…10 V), 14 bits (+/- 10 V)
Permitted Overload on Inputs +/- 30 mA (0…20 mA, 4…20 mA), +/- 30 V (0…10 V, +/- 10 V, 0…5 V, 1…5 V)
Input Impedance 250 Ohm
Conversion Accuracy 0.25% of full scale (25°C output/input), <= 0.35% (0…60°C)
Measurement Error 0.25% – 0.6% of full scale (depending on input type and temperature)
Temperature Drift 30 ppm/°C (0…5 V input), 100 ppm/°C (other types)
Recalibration Factory calibrated on outputs, internal on inputs
Analog Output Number 2
Analog Output Types 0…20 mA, 4…20 mA, +/-10 V
Analog Output Resolution 11 bits (0…20 mA), 12 bits (+/-10 V)
Output Level High level
Conversion Time <= 2 ms
Maximum Conversion Value +/- 11.25 V (input/output), 0…30 mA (input/output)
Fallback Mode Predefined, Configurable
MTBF Reliability 1,400,000 hours
Operating Altitude 0…6561.68 ft (0…2000 m), 2000…5000 m with derating
Status LED 1 LED (Green), Channel diagnostic (Green), ERR (Red), I/O (Red)
Dimensions 93 x 33 x 104 mm
Weight 0.155 kg
Power Consumption 2.6 W (24 V DC typical), 3.2 W (maximum)
Current Consumption 240 mA (3.3 V DC)
Vibration Resistance 3 gn
Shock Resistance 30 gn
Ambient Temperature for Operation 32…140 °F (0…60 °C)
Storage Temperature -40…185 °F (-40…85 °C)
Relative Humidity 5…95 % at 131 °F (55 °C) without condensation
IP Degree of Protection IP20
Certifications CE, RCM, CSA, EAC, Merchant Navy, UL

Product Features

  • Wide Input/Output Range: Supports a variety of analog input and output types including current (0…20 mA, 4…20 mA) and voltage (+/- 10 V, 0…10 V, 0…5 V, 1…5 V).

  • High Precision: Offers high-resolution analog conversion (up to 14 bits for certain input types), ensuring accuracy across various industrial applications.

  • Robust Communication: It supports fast read cycle times with a maximum of 5 ms for four channels, making it suitable for time-sensitive applications.

  • Temperature and Environmental Resilience: Built to operate within a wide temperature range (0…60 °C), it also resists vibrations (3 gn) and shocks (30 gn), ensuring durability in challenging environments.

Product Advantages

  • High Conversion Accuracy: Delivers precise measurements with a measurement error as low as 0.25% under standard conditions.

  • Versatile Inputs and Outputs: The module supports multiple input/output types and configurations, which increases its flexibility for various automation applications.

  • Reliable Performance: With a long MTBF of 1.4 million hours and excellent EMI/RFI noise rejection (80 dB), the module ensures stable and continuous operation in industrial settings.

  • Durability: Its shock and vibration resistance make it a robust choice for environments prone to mechanical stress.

  • Easy Integration: The module integrates seamlessly into Schneider Electric’s Modicon X80 system, which is widely adopted for industrial control and automation.

Applications

The Schneider BMXAMM0600 Analog High Level I/O Module is used in various industries for applications that require precise analog input/output operations:

  • Industrial Automation: For monitoring and controlling processes involving various analog signals.

  • Manufacturing: In automated manufacturing systems where accurate measurement of sensors or actuators is required.

  • Energy Management: In power systems for monitoring voltage and current levels in energy distribution.

  • Process Control: In industries such as chemical processing, water treatment, and HVAC systems where real-time analog signal processing is essential.

Latest Product News

  1. “Schneider Electric Expands Modicon X80 Series with Enhanced Analog Modules”

  2. “Innovative Analog Input Solutions from Schneider Electric Boost Industrial Automation”

  3. “New Schneider BMXAMM0600 Module Delivers Unmatched Precision for Analog Signals”

Related Models from the Same Series

Model Analog Inputs Analog Outputs Resolution Key Features
BMXAMM0200 2 2 12 bits Smaller version with fewer inputs/outputs but still high-precision conversion.
BMXAMM0400 4 4 12 bits Similar to BMXAMM0600 but offers additional analog outputs.
BMXAMI0800 8 8 12 bits Expands capabilities with more inputs/outputs for large-scale systems.
BMXAMM0600/2 4 2 12-14 bits Enhanced version with more versatile signal processing for complex systems.
BMXAMM0800 8 4 12-14 bits Suitable for applications requiring multiple analog I/O with high reliability.
BMXAMM1000 10 5 12-14 bits Offers the highest number of analog I/O in the series, ideal for large control systems.

Popular Schneider Models

Model Type Analog Inputs Analog Outputs Resolution Key Features
BMXAMI0800 Analog I/O Module 8 8 12 bits High channel count, ideal for complex control systems.
BMXAAI0810 Analog Input Module 8 12 bits High input precision, great for high-end process control.
BMXAOE0800 Analog Output Module 8 12 bits High-precision output control for industrial systems.
BMXAMI0600 Analog I/O Module 6 6 12 bits Balanced I/O capabilities for medium-scale systems.
BMXAAI0400 Analog Input Module 4 12 bits Compact and reliable input module for basic applications.
BMXAOE0200 Analog Output Module 2 12 bits Compact version for smaller analog output needs.
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the maximum number of analog inputs on the BMXAMM0600?
A1: The BMXAMM0600 supports up to 4 analog inputs.

Q2: What types of analog signals can be processed by this module?
A2: It can handle current (0…20 mA, 4…20 mA) and voltage (0…10 V, +/-10 V, 0…5 V, 1…5 V) signals.

Q3: What is the resolution of the analog inputs?
A3: The resolution is up to 14 bits for +/-10 V inputs and 12 bits for other input types.

Q4: Does this module support isolation between channels?
A4: No, the BMXAMM0600 is non-isolated between channels.

Q5: What is the typical power consumption of the BMXAMM0600?
A5: It typically consumes 2.6 W at 24 V DC.

Q6: What is the operating temperature range for this module?
A6: The operating temperature range is from 0…60 °C (32…140 °F).

Q7: Can the BMXAMM0600 be used in extreme environmental conditions?
A7: Yes, it has excellent resistance to shock and vibration, making it suitable for harsh environments.

Q8: How is recalibration handled for the BMXAMM0600?
A8: The module is factory calibrated for outputs and features internal calibration for inputs.
