Schneider BMXAMI0810 Analog Input Module

Schneider BMXAMI0810 Analog Input Module

Manufacturer:Schneider

Product Number:BMXAMI0810

Product Type:Analog Input Module

Origin:France

Dimensions:93 x 33 x 104 mm

Weight:0.175 kg

Views:4

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/BMXAMI0810-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXAMI0810.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXAMI0810-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/BMXAMI0810-6.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

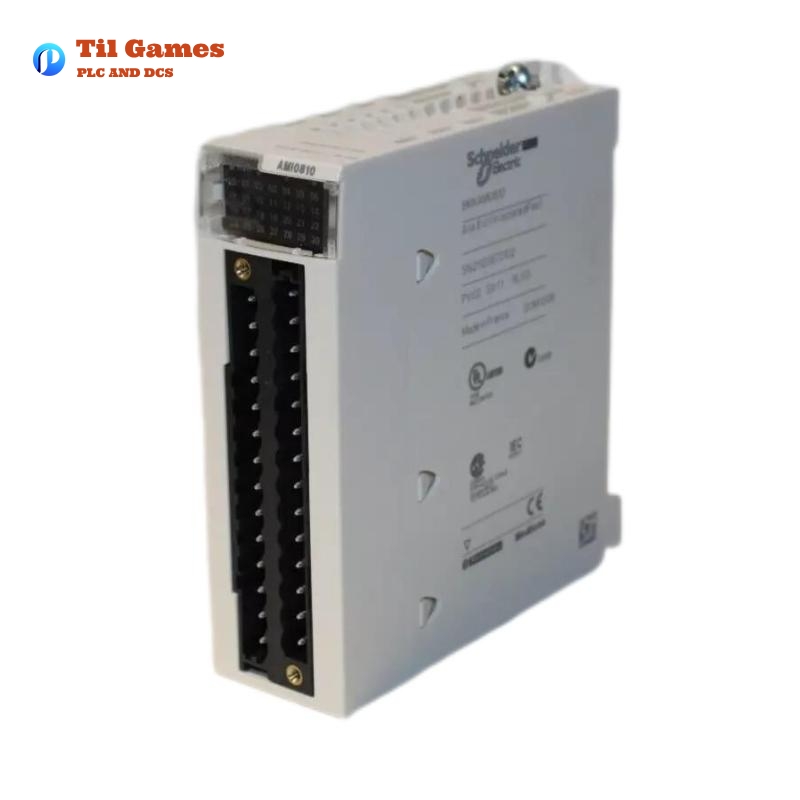

Schneider BMXAMI0810 Analog Input Module

The Schneider BMXAMI0810 Analog Input Module is a high-performance component designed to deliver accurate and reliable analog signal processing for industrial control systems. It is part of the Modicon X80 I/O system, offering versatile and robust analog input capabilities. This module is primarily used in automation applications requiring precise monitoring of analog signals, such as temperature, pressure, or level monitoring.

Product Features and Advantages

  • High Input Accuracy: The BMXAMI0810 provides exceptional precision with a measurement error of less than 0.1% of full scale at 0 to 60°C for all input ranges.

  • Wide Input Range: It supports multiple input types, including current (0…20 mA, 4…20 mA) and voltage (0…10 V, +/- 10 V, 0…5 V, 1…5 V) inputs, making it versatile for different industrial applications.

  • Fast Data Processing: The module offers fast data conversion with a nominal read cycle time of 9 ms for 8 channels, allowing for quick responses in critical control systems.

  • High Reliability: With a Mean Time Between Failures (MTBF) of 900,000 hours, this module is designed to operate continuously with minimal risk of failure.

  • Built-in Protection: The module features isolated channels, ensuring that electrical disturbances on one channel do not affect the others, enhancing system reliability and performance.

  • Environmental Resilience: The module operates within a wide temperature range (0…60°C for operation) and offers vibration resistance up to 3 gn, making it suitable for harsh industrial environments.

Product Specifications

Parameter Specification
Product Type Analog Input Module
Electrical Connection 28-way 1 connector
Input Number 8 Channels
Input Types Current +/- 20 mA, 0…20 mA, 4…20 mA; Voltage +/- 10 V, +/- 5 V, 0…10 V, 0…5 V, 1…5 V
Analog/Digital Conversion 16 bits
Resolution 15 bits + sign
Overload Protection +/- 30 mA for current inputs, +/- 30 V for voltage inputs
Impedance 10 MOhm in voltage mode; 250 Ohm + 3.6…50 Ohm in current mode
Filter Type First order digital filtering
Measurement Error ≤ 0.1% for voltage inputs at 0…60°C
Temperature Drift 30 ppm/°C for voltage inputs; 50 ppm/°C for current inputs
Crosstalk Attenuation 80 dB
Noise Rejection 80 dB (100 kHz to 10 MHz)
Isolation Voltage 300 V DC between channels, 1400 V DC between channels and ground/bus
MTBF Reliability 900,000 hours
Dimensions 93 x 33 x 104 mm
Weight 0.175 kg
Power Consumption 1.06 W typical (24 V DC); 1.50 W max (24 V DC); 0.32 W typical (3.3 V DC)
Current Consumption 54 mA (24 V DC), 150 mA (3.3 V DC)
Operating Temperature 0…60 °C
Storage Temperature -40…85 °C
IP Protection IP20
Certifications CE, UL, CSA, RCM, EAC, Merchant Navy
Vibration Resistance 3 gn
Shock Resistance 30 gn
Humidity 5…95% RH (non-condensing)

Applications

The BMXAMI0810 module is ideal for a wide range of industrial applications:

  • Process Control: Used for monitoring and controlling processes in industries such as chemical, food & beverage, and water treatment.

  • Machine Automation: Integrates with machine control systems to monitor parameters like temperature, pressure, and flow rates.

  • Building Automation: Applied in HVAC systems, lighting control, and energy management for commercial and industrial buildings.

  • Energy Management: Utilized in power distribution and monitoring systems, enabling effective energy management strategies.

Product Recommendations (Related Models)

Here are six Schneider models from the same series or similar I/O modules that you might find useful:

Model Input Type Input Range Channels Conversion Resolution MTBF Reliability
BMXAMI0808 Analog Input Module Current, Voltage 8 16 bits 900,000 hours
BMXAMI1208 Analog Input Module Current, Voltage 12 16 bits 900,000 hours
BMXAMI1608 Analog Input Module Current, Voltage 16 16 bits 900,000 hours
BMXAMI0812 Analog Input Module Current, Voltage 8 16 bits 900,000 hours
BMXAMI0840 Analog Input Module Voltage 8 16 bits 900,000 hours
BMXAMI0824 Analog Input Module Current 8 16 bits 900,000 hours

Schneider Popular Models

In addition to the BMXAMI0810, here are six popular Schneider models that are highly regarded in the automation industry:

Model Type Channels Input Range Power Consumption Weight
BMXART0808 Digital Input Module 8 24 V DC 1.2 W 0.150 kg
BMXPRA0808 Digital Output Module 8 24 V DC 1.5 W 0.180 kg
BMXVSD0400 Voltage Sensor 4 0…10 V 0.5 W 0.120 kg
BMXTPD1000 Temperature Sensor 10 0…100 °C 0.8 W 0.130 kg
BMXSDM0808 Signal Detection Module 8 4…20 mA 1.3 W 0.160 kg
BMXXPS0100 Power Supply Module N/A 24 V DC 3 W 0.200 kg
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the BMXAMI0810 Analog Input Module used for?

A1: The BMXAMI0810 module is used to measure and convert analog signals (current and voltage) from sensors in industrial automation systems. It provides precise data for process control, machine automation, and energy management.

Q2: What are the supported input types for the BMXAMI0810 module?

A2: The module supports multiple input types including current (0…20 mA, 4…20 mA) and voltage (0…10 V, +/- 10 V, 0…5 V, 1…5 V).

Q3: What is the typical power consumption of the BMXAMI0810?

A3: The typical power consumption is 1.06 W at 24 V DC and 0.32 W at 3.3 V DC.

Q4: How many input channels does the BMXAMI0810 have?

A4: The BMXAMI0810 has 8 analog input channels.

Q5: What is the isolation voltage of the BMXAMI0810?

A5: The isolation voltage is 300 V DC between channels, and 1400 V DC between channels and ground/bus.

Q6: What is the operating temperature range for the BMXAMI0810 module?

A6: The operating temperature range is 0…60 °C, making it suitable for most industrial environments.

Q7: What certifications does the BMXAMI0810 have?

A7: The module is certified with CE, UL, CSA, RCM, EAC, and Merchant Navy, ensuring compliance with global standards.

Q8: How reliable is the BMXAMI0810 module?

A8: The BMXAMI0810 has a high reliability with an MTBF of 900,000 hours, ensuring long-term operation in industrial settings.
