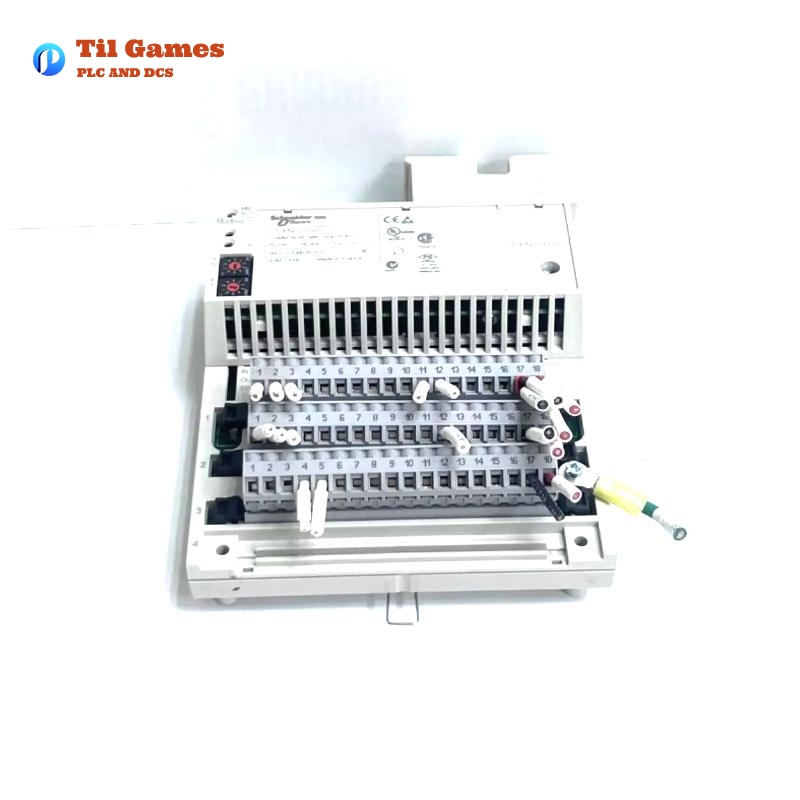

Schneider 170AEC92000 High Speed Counter Module Base

Schneider 170AEC92000 High Speed Counter Module Base

Manufacturer:Schneider

Product Number:170AEC92000

Product Type:High Speed Counter Module Base

Origin:France

Dimensions:47.5 × 125 × 141.5 mm

Weight:0.21 kg

Views:17

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/170AEC92000-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/170AEC92000-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/170AEC92000-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/170AEC92000-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Description

The Schneider 170AEC92000 High-Speed Counter Module Base is a component of the Schneider Electric Modicon Momentum range. It is designed for distributed control architectures, offering high-speed performance for applications such as material handling, simple machine control, and infrastructure management. This module integrates two groups of three discrete inputs and two groups of two discrete outputs, which offer positive discrete input logic. The module is highly versatile and is suitable for use in environments that require rapid response times, such as energy and industrial control systems.

Key features include a modular design that is easily adaptable for various control systems, CE, CSA, and UL certifications, and the ability to withstand high levels of electrostatic discharge and electromagnetic interference. This module can be conveniently mounted on walls, offering easy installation in industrial settings.


Product Features & Advantages

  • High-Speed Performance: With response times as low as 0.1 ms, the 170AEC92000 ensures precise control over fast-changing signals, ideal for high-speed counting applications.

  • Versatility: The module supports multiple counting modes, including absolute and incremental counting with various configurations, making it adaptable to a wide range of industrial processes.

  • Modular System: Designed for easy integration into the Modicon Momentum system, it allows for flexible configuration of distributed I/O systems.

  • Compact & Lightweight: Despite its high performance, it weighs only 0.21 kg and has compact dimensions (47.5 × 125 × 141.5 mm), making it suitable for environments with limited space.

  • Environmental Durability: The module is certified to withstand extreme temperatures, electrostatic discharges, and electromagnetic interference, making it reliable in harsh industrial environments.


Product Applications

The 170AEC92000 High-Speed Counter Module Base is primarily used in:

  • Material Handling Systems: For precise tracking and counting of items on conveyor belts or other moving systems.

  • Infrastructure & Energy Management: For monitoring and controlling energy flow and infrastructure systems.

  • Simple Machine Control: Used in various machinery control applications, especially in high-speed or high-precision settings.

  • Manufacturing Automation: Perfect for environments that require quick input signal processing, such as automotive or food processing industries.


Product Specifications

Parameter Details
Product Type High-Speed Counter Module Base
Discrete Inputs 6 (2 groups of 3)
Discrete Outputs 4 (2 groups of 2)
Counter Resolution 24 bits + sign
Counting Input Type Absolute SSI, Incremental (Up, Down, Quadrature)
Counting Frequency 10 kHz (single-ended), 200 kHz (differential)
Voltage Input Range -3 to 30 V DC, 24 V DC
Voltage Output 24 V DC
Input Overvoltage Protection 45 V (10 s)
Current State 1 Guaranteed ≥ 2.5 mA
Current State 0 Guaranteed ≤ 1.2 mA
Surge Current 5 A (1 ms)
Response Time (Output) < 0.1 ms (state 0 to 1), < 0.1 ms (state 1 to 0)
Response Time (Input) 3 ms (state 0 to 1), 3 ms (state 1 to 0)
Max Voltage Drop < 0.5 V (at 0.5 A, state on)
Leakage Current 1 mA (24 V DC)
Input Voltage Range 24 V single-ended, 5 V differential
Environmental Certifications CE, UL, CSA
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Altitude ≤ 5000 m (16404.2 ft)
Humidity 95% (non-condensing)
Dimensions 47.5 × 125 × 141.5 mm
Weight 0.21 kg
Electrical Connection 2 removable terminal blocks
Current Consumption 280 mA (24 V DC)

Recommended Models from the Same Series

Model Description Key Features Applications
170AEC95000 High-Speed Counter Module Base 6 discrete inputs, 4 outputs Material handling, machine control
170AEZ0000 High-Speed Counter with Pulse Input Pulse counting, frequency response Energy monitoring, manufacturing
170AEC93000 High-Speed Encoder Interface Module Differential inputs, 24-bit resolution Precision counting, automation
170AEC96000 High-Speed Counter with SSI interface Absolute SSI counting, high-speed I/O Industrial automation, data logging
170AEC91000 High-Speed Counter with Quadrature I/O Quadrature inputs, 200 kHz frequency Conveyor systems, production lines
170AEC92000R High-Speed Counter with Remote I/O Remote I/O integration, flexible setup Remote monitoring, distributed systems

Recommended Popular Schneider Models

Model Description Key Features Applications
140CRA31200 Modular Control Relay High-performance, modular design Industrial control systems
170ENT11000 Ethernet Communication Module Ethernet communication, network-based Automation, remote control
140NOC77100 Distributed I/O Module High-speed I/O processing, flexible I/O Manufacturing, energy management
140MNR75000 Modular I/O System Modular I/O system with high flexibility Data acquisition, industrial control
170BAP72010 Analog Input Module 16-bit resolution, high precision input Process control, manufacturing
140ADC84000 Analog to Digital Converter 16-channel, 24-bit resolution Measurement, process control
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the maximum counting frequency for the 170AEC92000 module?
A1: The module supports a maximum counting frequency of 10 kHz for single-ended inputs and 200 kHz for differential inputs.

Q2: What is the response time for the output circuit?
A2: The response time for the output circuit is less than 0.1 ms from state 0 to state 1, and also less than 0.1 ms from state 1 to state 0.

Q3: How many discrete inputs does the module have?
A3: The 170AEC92000 module has 6 discrete inputs, arranged in two groups of three.

Q4: Can this module be used in extreme temperatures?
A4: Yes, the module operates in temperatures ranging from 0°C to 60°C (32°F to 140°F) and can be stored in temperatures from -40°C to 85°C (-40°F to 185°F).

Q5: What certifications does the 170AEC92000 module have?
A5: The module is certified by CE, CSA, and UL for safety and quality compliance.

Q6: How is the module connected electrically?
A6: The module is equipped with two removable terminal blocks for easy electrical connection.

Q7: What is the operating altitude for the module?
A7: The module can operate at altitudes up to 5000 meters (16404.2 feet).

Q8: What is the typical use case for this module?
A8: The 170AEC92000 is typically used in material handling, simple machine control, and energy infrastructure applications where high-speed counting is required.
