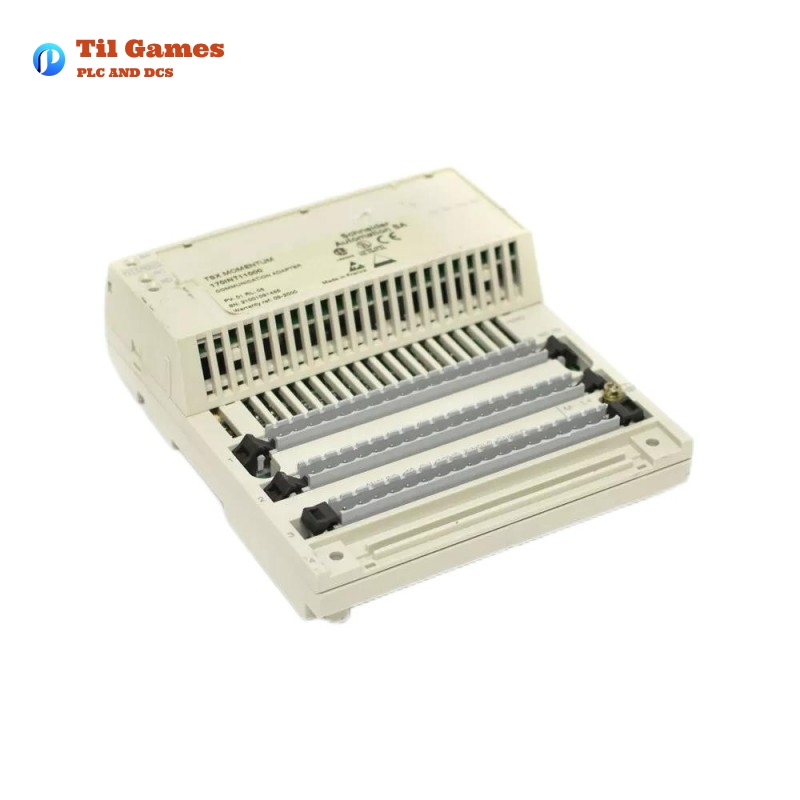

Schneider 170AAI14000 Distributed Analog Input Base

Schneider 170AAI14000 Distributed Analog Input Base

Manufacturer:Schneider

Product Number:170AAI14000

Product Type:Distributed Analog Input Base

Origin:France

Dimensions:47.5 × 125 × 141.5 mm

Weight:0.215 kg

Views:12

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/170AAI14000-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/170AAI14000-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/170AAI14000-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/170AAI14000-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Description

The Schneider 170AAI14000 is an analog input base module from the Modicon Momentum range. It is designed for industrial automation applications requiring high-precision analog signal processing. This module offers 16 single-ended analog inputs with a full 16-bit signed resolution, ensuring accurate and reliable data acquisition.

The module supports input ranges of 4mA to 20mA, ±10V, and ±5V, providing flexibility for various industrial applications. Isolation protection is implemented between channels and ground at 1780V AC and between supply and ground at 500V AC, enhancing system safety. The module includes two removable terminal blocks for easy electrical connections and features 16 status LEDs for real-time channel monitoring.

Its compact design (47.5mm depth, 125mm height, and 141.5mm width) and lightweight construction (0.215kg) make it ideal for space-constrained applications. Certified by CE, CSA, FM Class 1 Division 2, and UL, it is suitable for harsh industrial environments. This module is part of the Momentum series, which is known for its modularity, flexibility, and ease of integration in distributed I/O control applications.


Product Specifications

Parameter Details
Product Range Modicon Momentum
Product Type Analog Input Base
Number of Analog Inputs 16
Input Type Single-ended
Input Ranges 4…20mA (12-bit, < 0.25 Ohm) ±10V (12-bit + sign, > 2200 kOhm) ±5V (12-bit + sign, > 2200 kOhm)
Filter Type Low-pass input filter, 10 kHz
Data Format Full 16-bit signed
Accuracy Error (25°C) ±0.15% of full scale (±10V, ±5V) ±0.25% full scale (4…20mA)
Accuracy Error (60°C) ±0.25% full scale (±10V, ±5V) ±0.45% full scale (4…20mA)
Temperature Drift 30% oFS/°C (±10V, ±5V) 60% oFS/°C (4…20mA)
Full Scale Range ±10V, ±5V, 4…20mA
Update Time 25ms
Channel Isolation 1780V AC for 1 minute
Supply Isolation 500V for 1 minute
Common Mode Voltage 100V DC / 250V AC (47…63 Hz)
External Power ±30V DC
Power Dissipation 5.55W
Reverse Polarity Protection Internal
Fuse Protection 2A slow-blow
Associated Fuse Rating 500mA fast-blow
Local Signaling 16 LEDs for channel status
Connection Type 2 removable terminal blocks
Current Consumption 305mA at 24V DC
Dimensions (W x D x H) 141.5 x 47.5 x 125 mm
Weight 0.215 kg
Certifications UL, FM Class 1 Division 2, CSA, CE
Electrostatic Discharge Resistance 4kV contact (IEC 801-2) 8kV air (IEC 801-2)
Electromagnetic Field Resistance 10V/m (80-1000 MHz) (IEC 801-3)
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 85°C
Humidity Resistance 95% non-condensing
Maximum Altitude ≤ 5000m

Product Features

  • High Precision: 16-bit signed resolution for accurate analog data processing.
  • Multiple Input Ranges: Supports 4-20mA, ±10V, and ±5V.
  • High Isolation: 1780V AC (channel-ground) and 500V AC (supply-ground) for enhanced safety.
  • Quick Update Time: 25ms response time ensures real-time data acquisition.
  • LED Indicators: 16 LEDs provide instant input status feedback.
  • Compact & Lightweight: Small footprint and light weight for easy integration.
  • Industrial Certifications: CE, UL, FM, and CSA certifications ensure compliance with industry standards.
  • Robust Construction: Operates in temperatures up to 60°C and altitudes up to 5000m.

Product Advantages

  • Reliable and accurate signal acquisition for industrial automation.
  • Easy installation with removable terminal blocks.
  • Enhanced safety with high isolation levels.
  • Suitable for harsh environments with electrostatic and electromagnetic resistance.
  • Modular flexibility allows integration into diverse control systems.
  • Low power consumption (5.55W) enhances energy efficiency.

Product Applications

  • Industrial Automation – Process monitoring and control.
  • Energy Management – Power plant monitoring systems.
  • Material Handling – Conveyor systems and automated warehousing.
  • Machine Control – Integration into PLC-based control systems.
  • Infrastructure – Water treatment, HVAC, and building management.

Latest Reports

  1. “Schneider Electric Expands Momentum Series for Advanced Industrial Control”
  2. “Schneider 170AAI14000: A Detailed Review of Performance and Applications”
  3. “Modicon Momentum: A Scalable Solution for Modern Automation Needs”

Related Models

Model Description
170AAI03000 Analog input module, 8 inputs, 4-20mA
170AAI52080 Analog input module, 8 inputs, voltage type
170AAI92000 Analog input module, 4 inputs, RTD type
170AAI64000 Analog input module, 4 inputs, thermocouple type
170AAI14100 Analog input module, 16 inputs, 0-10V
170AAI13500 Analog input module, 8 inputs, universal

Popular Schneider Models

Model Description
TM241CE24R Modicon M241 compact PLC
BMXDDI3202K Discrete input module, 32 inputs
BMENOC0311 Ethernet communication module
ATV320U22N4B Variable speed drive, 2.2kW
HMISTU855 Touchscreen HMI, 5.7-inch
XPSMCMCP0802 Safety controller module
FAQ

FAQ

  1. Q: What is the input range of the Schneider 170AAI14000?
    A: The Schneider 170AAI14000 supports input ranges of 4…20 mA, ±10 V, and ±5 V.

  2. Q: How many analog inputs does the module support?
    A: The module supports 16 analog inputs.

  3. Q: What is the accuracy of the 170AAI14000?
    A: The accuracy is ±0.15% for ±10 V and ±5 V at 25°C, and ±0.25% for 4…20 mA.

  4. Q: Can the module be used in hazardous environments?
    A: Yes, the 170AAI14000 is certified for use in FM Class 1 Division 2 and UL-certified environments.

  5. Q: What is the temperature range for operation?
    A: The operational temperature range is 0°C to 60°C.

  6. Q: How is the 170AAI14000 mounted?
    A: The module is designed for wall mounting.

  7. Q: What kind of protection does the module offer?
    A: The module includes reverse polarity protection and is internally fused with a 2 A slow-blow fuse.

  8. Q: What are the power requirements for the module?
    A: The module requires a ±30 V DC external power supply.
