Product Introduction

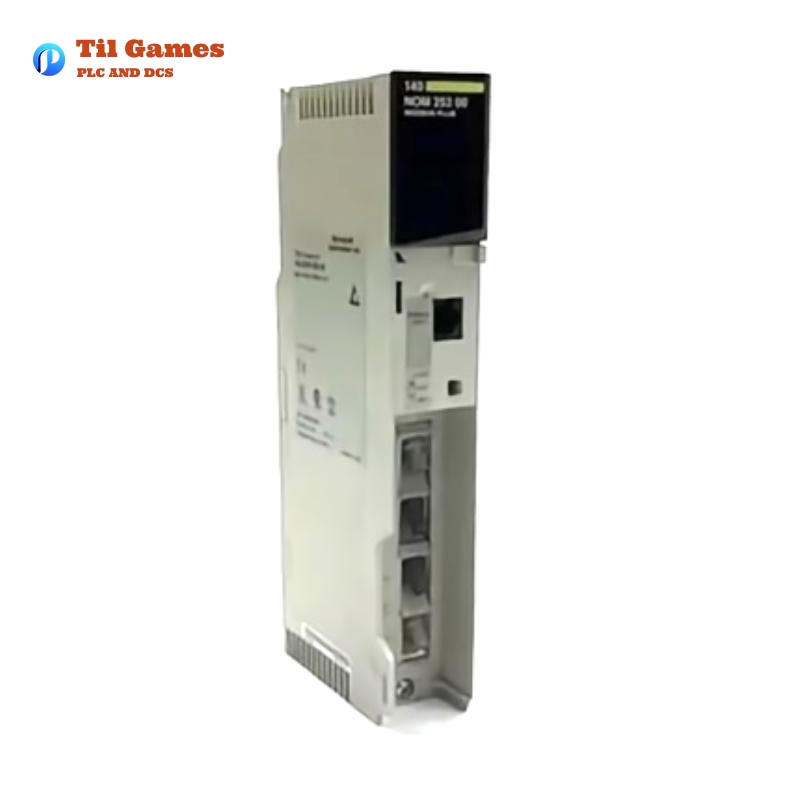

The Schneider 140NOM25200C DIO Head-End Adaptor is a high-performance communication interface designed for industrial automation and control systems. It serves as a critical component in Modbus networks, enabling seamless data transmission between devices. This adaptor is engineered to meet rigorous industrial standards, ensuring reliability and durability in demanding environments. It supports both fiber optic and copper connections, making it versatile for various network configurations.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Type | DIO Head-End Adaptor |
| Complementary | 1 Modbus Plus fiber optic single copper, 1 Modbus RS232 twisted pair |
| Number of Ports | 1 Modbus Plus fiber optic, 1 Modbus RS232 |
| Transmission Rate | 1 Mbit/s |
| Electrical Connection | 1 RJ45 connector, 2 TX/RX connectors |
| I/O Words | 30 Input / 32 Output |
| Checks | RAM, RAM Address, Processor, Checksum |
| Power Dissipation | 4 W |
| Minimum Pulse Width | 5 ns |
| Wavelength | 820 nm (0.000032284 in) |
| Power Loss Budget | 11 dB (62.5/125 µm), 16.5 dB (100/140 µm), 6.5 dB (50/125 µm) |
| Optical Transmission | -16…-9 dBm (100/140 µm), -19.8…-12.8 dBm (50/125 µm), -3.5…110.5 dBm (62.5/125 µm) |
| Rise/Fall Time | 20 ns |
| Dynamic Range | 20 dB |
| Detected Silence | -36 dBm |
| Sensitivity Scale | > 30 dBm |
| Bus Current Requirement | 750 mA |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 Kg |
| Environmental Standards | UL 508, CSA Class 1 Division 2, RINA, GL, RMRS, C-tick, GOST, DNV |
| Resistance to ESD | 4 kV contact, 8 kV on air (IEC 801-2) |
| Resistance to EMF | 9.1 V/m (10 V/m) 80…2000 MHz (IEC 801-3) |
| Operating Temperature | 32…140 °F (0…60 °C) |
| Storage Temperature | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 16404.2 ft (5000 m) |
Product Features
- Dual Connectivity: Supports both fiber optic and copper connections for flexible network integration.
- High-Speed Transmission: Offers a transmission rate of 1 Mbit/s, ensuring efficient data transfer.
- Robust Design: Built to withstand harsh industrial environments with high resistance to electrostatic discharge and electromagnetic fields.
- Wide Temperature Range: Operates reliably in temperatures ranging from 32°F to 140°F (0°C to 60°C).
- Compact and Lightweight: Measures 103.9 × 40.3 × 250 mm and weighs only 0.3 Kg, making it easy to install and integrate.
- Compliance with Standards: Certified by UL 508, CSA, RINA, GL, RMRS, C-tick, GOST, and DNV, ensuring global compatibility and safety.
Product Advantages
- Versatility: Suitable for a wide range of industrial applications due to its dual connectivity options.
- Reliability: High resistance to environmental factors ensures consistent performance in challenging conditions.
- Ease of Integration: Compact design and lightweight construction simplify installation and maintenance.
- Global Compliance: Meets international standards, making it suitable for use in various regions.
- Energy Efficient: Low power dissipation of 4 W reduces operational costs.
Product Applications
- Industrial Automation: Facilitates communication between PLCs, sensors, and actuators in automated manufacturing systems.
- Energy Management: Used in power distribution systems for real-time monitoring and control.
- Building Automation: Integrates with HVAC, lighting, and security systems for centralized control.
- Transportation Systems: Supports communication in railway and traffic control systems.
- Water and Wastewater Management: Enables efficient monitoring and control of treatment processes.
Latest News Headline
“Schneider Electric Unveils Enhanced 140NOM25200C DIO Head-End Adaptor for Industrial Networks”
Recommended Related Models
| Model Number | Description | Key Parameters |
|---|---|---|
| 140NOM21100 | Modbus Plus Fiber Optic Repeater | 1 Mbit/s, 2 ports, 0.5 Kg, 100 x 40 x 250 mm |
| 140NOM22000 | Modbus Plus Fiber Optic Star Coupler | 1 Mbit/s, 4 ports, 0.6 Kg, 120 x 40 x 250 mm |
| 140NOM23000 | Modbus Plus Fiber Optic Tap | 1 Mbit/s, 1 port, 0.4 Kg, 100 x 40 x 250 mm |
| 140NOM24000 | Modbus Plus Fiber Optic Isolator | 1 Mbit/s, 1 port, 0.3 Kg, 100 x 40 x 250 mm |
| 140NOM25000 | Modbus Plus Fiber Optic Head-End Adaptor | 1 Mbit/s, 1 port, 0.3 Kg, 100 x 40 x 250 mm |
| 140NOM26000 | Modbus Plus Fiber Optic Splitter | 1 Mbit/s, 2 ports, 0.5 Kg, 120 x 40 x 250 mm |
Popular Schneider Models
| Model Number | Description | Key Parameters |
|---|---|---|
| 140CPU67160 | Quantum PLC | 1.5 MB memory, 0.8 Kg, 200 x 100 x 50 mm |
| 140CRA93100 | Remote I/O Adapter | 10/100 Mbps, 0.4 Kg, 120 x 40 x 250 mm |
| 140NOE77101 | Ethernet Module | 10/100 Mbps, 0.5 Kg, 120 x 40 x 250 mm |
| 140ACI04000 | Analog Input Module | 16 channels, 0.3 Kg, 100 x 40 x 250 mm |
| 140DAO84000 | Analog Output Module | 8 channels, 0.3 Kg, 100 x 40 x 250 mm |
| 140DDI35300 | Digital Input Module | 32 channels, 0.3 Kg, 100 x 40 x 250 mm |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 140NOM25200C DIO Head-End Adaptor?
A1: It serves as a communication interface for Modbus networks, enabling data transmission between devices via fiber optic and copper connections.
Q2: Can this adaptor be used in hazardous environments?
A2: Yes, it is certified for use in Class 1 Division 2 hazardous locations.
Q3: What is the maximum transmission distance supported?
A3: The transmission distance depends on the fiber type, with a power loss budget of up to 16.5 dB for 100/140 µm fiber.
Q4: Is the adaptor compatible with other Schneider products?
A4: Yes, it is designed to integrate seamlessly with Schneider’s Modbus Plus and Quantum series products.
Q5: What is the operating temperature range?
A5: It operates reliably in temperatures ranging from 32°F to 140°F (0°C to 60°C).
Q6: How does the adaptor handle electromagnetic interference?
A6: It has high resistance to electromagnetic fields, complying with IEC 801-3 standards.
Q7: What certifications does the product hold?
A7: It is certified by UL 508, CSA, RINA, GL, RMRS, C-tick, GOST, and DNV.
Q8: What is the weight and size of the adaptor?
A8: It measures 103.9 × 40.3 × 250 mm and weighs 0.3 Kg.
