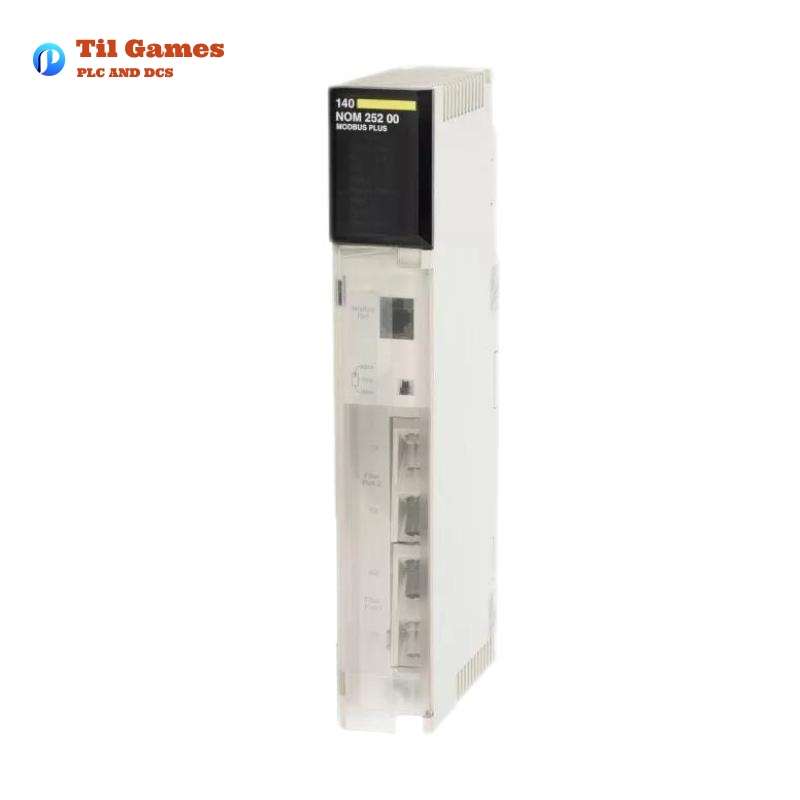

Product Introduction: Schneider 140NOM25200 DIO Head-End Adaptor
The Schneider 140NOM25200 DIO Head-End Adaptor is a versatile and robust communication interface designed for industrial automation applications. It serves as a critical component in Modbus networks, enabling seamless data exchange between devices. This adaptor is engineered to provide reliable performance in demanding environments, making it suitable for a wide range of industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Type | DIO Head-End Adaptor |
| Complementary | N/A |
| Number of Ports | 1 Modbus Plus fiber optic single copper, 1 Modbus RS232 twisted pair |
| Transmission Rate | 1 Mbit/s |
| Electrical Connection | 1 connector RJ45, 2 connectors TX/RX |
| I/O Words | 30 Input / 32 Output |
| Checks | RAM, RAM Address, Processor, Checksum |
| Power Dissipation | 4 W |
| Minimum Pulse Width | 5 ns |
| Wavelength | 820 nm (0.000032284 in) |
| Power Loss Budget | 11 dB (62.5/125 µm), 16.5 dB (100/140 µm), 6.5 dB (50/125 µm) |
| Optical Transmission | -16…-9 dBm (100/140 µm), -19.8…-12.8 dBm (50/125 µm), -3.5…110.5 dBm (62.5/125 µm) |
| Rise/Fall Time | 20 ns |
| Dynamic Range | 20 dB |
| Detected Silence | -36 dBm |
| Sensitivity Scale | > 30 dBm |
| Bus Current Requirement | 750 mA |
| Resistance to ESD | 4 kV contact IEC 801-2, 8 kV on air IEC 801-2 |
| Resistance to EMF | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Operating Temperature | 32…140 °F (0…60 °C) |
| Storage Temperature | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 16404.2 ft (5000 m) |
| Standards | UL 508 |
| Certifications | CSA Class 1 Division 2, RINA, GL, RMRS, C-tick, GOST, DNV |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 Kg |
Product Features
- High-Speed Communication: Supports a transmission rate of 1 Mbit/s, ensuring efficient data transfer.
- Dual Connectivity: Features both Modbus Plus fiber optic and Modbus RS232 twisted pair ports for flexible integration.
- Robust Design: Built to withstand harsh industrial environments with resistance to electrostatic discharge and electromagnetic fields.
- Wide Temperature Range: Operates reliably in temperatures ranging from 32°F to 140°F (0°C to 60°C).
- Compact and Lightweight: With dimensions of 103.9 × 40.3 × 250 mm and a weight of 0.3 Kg, it is easy to install and integrate into existing systems.
- Certified Compliance: Meets multiple international standards and certifications, ensuring global applicability.
Product Advantages
- Reliability: Designed for continuous operation in demanding conditions, minimizing downtime.
- Versatility: Compatible with various Modbus networks, making it suitable for diverse industrial applications.
- Energy Efficiency: Low power dissipation of 4 W reduces operational costs.
- Enhanced Safety: High resistance to electrostatic discharge and electromagnetic interference ensures safe operation.
- Global Standards Compliance: Certifications like CSA, RINA, and GOST make it suitable for international markets.
Product Applications
The Schneider 140NOM25200 DIO Head-End Adaptor is ideal for use in:
- Industrial automation systems
- Process control systems
- Manufacturing plants
- Energy and utilities
- Transportation systems
- Building automation
Latest News Headline
“Schneider Electric Enhances Industrial Connectivity with the 140NOM25200 DIO Head-End Adaptor”
Schneider Electric has announced the latest advancements in its DIO Head-End Adaptor series, focusing on improved data transmission reliability and compatibility with global industrial standards.
Recommended Related Models
| Model Number | Description | Key Parameters |
|---|---|---|
| 140NOM21100 | Modbus Plus Fiber Optic Repeater | 1 Mbit/s, 1 port, 0.5 Kg, 100 × 40 × 250 mm |
| 140NOM22000 | Modbus Plus Fiber Optic Star Coupler | 1 Mbit/s, 4 ports, 0.8 Kg, 150 × 50 × 300 mm |
| 140NOM23000 | Modbus Plus Fiber Optic Tap | 1 Mbit/s, 2 ports, 0.4 Kg, 90 × 35 × 200 mm |
| 140NOM24000 | Modbus Plus Fiber Optic Isolator | 1 Mbit/s, 1 port, 0.3 Kg, 100 × 40 × 250 mm |
| 140NOM25100 | Modbus Plus Fiber Optic Head-End Adaptor (Single Mode) | 1 Mbit/s, 1 port, 0.3 Kg, 103.9 × 40.3 × 250 mm |
| 140NOM25300 | Modbus Plus Fiber Optic Head-End Adaptor (Multi-Mode) | 1 Mbit/s, 1 port, 0.3 Kg, 103.9 × 40.3 × 250 mm |
Popular Schneider Models
| Model Number | Description | Key Parameters |
|---|---|---|
| 140CPU67160 | Modicon Quantum Processor | 1.5 MB RAM, 0.5 Kg, 100 × 40 × 250 mm |
| 140CRA93100 | Remote I/O Adapter | 10 Mbit/s, 0.6 Kg, 120 × 45 × 300 mm |
| 140NOE77101 | Ethernet Network Interface | 100 Mbit/s, 0.4 Kg, 90 × 35 × 200 mm |
| 140XBP01600 | Modbus Plus Bridge | 1 Mbit/s, 0.7 Kg, 150 × 50 × 300 mm |
| 140ACI04000 | Analog Input Module | 16 channels, 0.3 Kg, 100 × 40 × 250 mm |
| 140DDI35300 | Digital Input Module | 32 channels, 0.3 Kg, 100 × 40 × 250 mm |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 140NOM25200 DIO Head-End Adaptor?
A1: It serves as a communication interface for Modbus networks, enabling data exchange between devices.
Q2: What types of ports does the adaptor support?
A2: It supports 1 Modbus Plus fiber optic single copper port and 1 Modbus RS232 twisted pair port.
Q3: What is the operating temperature range of the adaptor?
A3: It operates reliably in temperatures ranging from 32°F to 140°F (0°C to 60°C).
Q4: Is the adaptor suitable for use in hazardous environments?
A4: Yes, it is certified for CSA Class 1 Division 2 environments.
Q5: What is the power dissipation of the adaptor?
A5: The power dissipation is 4 W.
Q6: What certifications does the adaptor comply with?
A6: It complies with UL 508, CSA, RINA, GL, RMRS, C-tick, GOST, and DNV standards.
Q7: Can the adaptor be used in high-altitude locations?
A7: Yes, it is designed to operate at altitudes up to 16,404.2 ft (5000 m).
Q8: What is the weight and dimensions of the adaptor?
A8: It weighs 0.3 Kg and measures 103.9 × 40.3 × 250 mm.
