Technical Specifications
| Parameter | Specification |
|---|---|

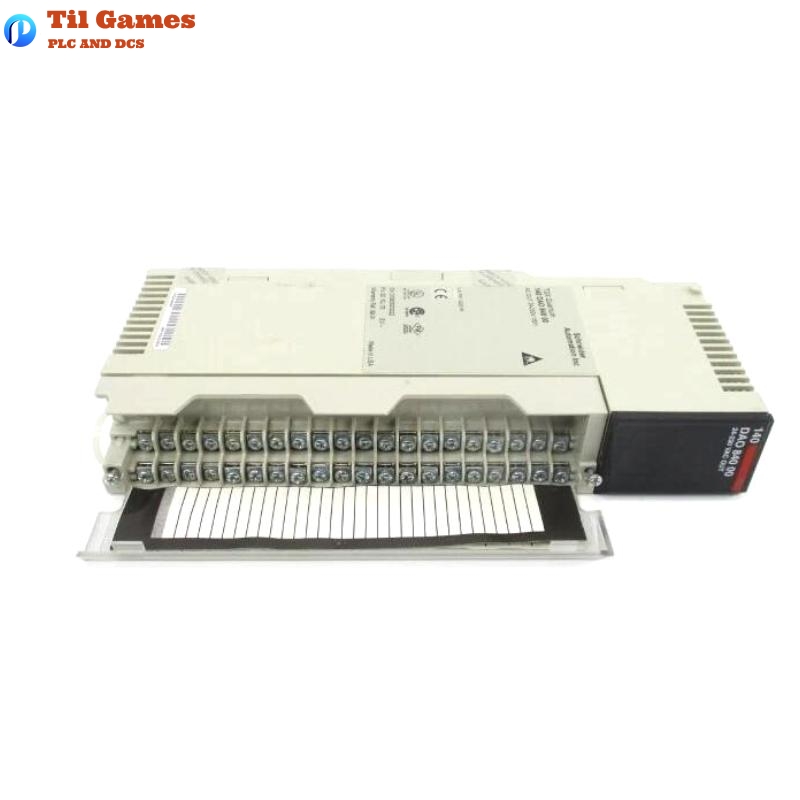

| Product Model | 140DAO84000 |
| Product Type | Discrete Output Module |
| Number of Discrete Outputs | 16 |
| Discrete Output Type | Isolated |
| Group of Channels | 16 groups of 1 channel each |
| Supply Frequency | 47…63 Hz |
| Maximum Voltage Drop | 1.5 V |
| Discrete Output Voltage | 20…253 V AC |
| Addressing Requirement | 1 output word |
| Maximum Output Voltage | 300 Vrms (10 seconds AC) |
| 400 Vrms (1 cycle AC) | |
| Maximum Load Current | 1 mA rms (24 Vrms off state leakage) |
| 1 mA rms (48 Vrms off state leakage) | |
| 2 mA rms (115 Vrms off state leakage) | |
| 2.5 mA rms (230 Vrms off state leakage) | |
| 3 A rms (200…230 V per output) | |
| 4 A rms (24…115 V per output) | |
| 16 A rms per module | |
| 4 A rms (sum of four points, continuous) | |
| Surge Current | 10 A during 3 cycles per point |
| 20 A during 2 cycles per point | |
| 30 A during 1 cycle per point | |
| dv/dt | 400 V/ms |
| Response Time | <= 0.5 ms from state 0 to state 1 |
| <= 0.5 ms from state 1 to state 0 | |
| Protection Type | Internal by RC filter |
| Power Dissipation | 1.85 + (1.1 V x total module load current) |
| Fuse Rating | 5 A |
| Marking | CE |
| Local Signaling | – Bus communication LED (green) |
| – External fault LED (red) | |
| – Input status LED (16 green) | |
| Bus Current Requirement | 350 mA |
| Module Format | Standard |
| Net Weight | 0.485 kg |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Operating Ambient Temperature | 0…60°C |
| Storage Ambient Temperature | -40…85°C |
| Relative Humidity | 95% without condensation |
| Operating Altitude | <= 5000 m |
FAQ
FAQs
-
Q1: What is the maximum output current of the module?
-
A1: The maximum output current is 3 A rms (200…230 V) and 4 A rms (24…115 V) per output, with a total of 16 A rms per module.
-
-
Q2: What is the response time of the module?
-
A2: The response time is <= 0.5 ms from state 0 to state 1, and <= 0.5 ms from state 1 to state 0.
-
-
Q3: What is the protection type of the module?
-
A3: The module is protected by an internal RC filter.
-
-
Q4: What is the maximum discrete output voltage supported by the module?
-
A4: The maximum output voltage is 300 Vrms (10 seconds AC) and 400 Vrms (1 cycle AC).
-
-
Q5: What is the operating temperature range of the module?
-
A5: The operating temperature range is 0…60°C.
-
-
Q6: Does the module support overcurrent protection?
-
A6: Yes, the module is capable of handling both continuous maximum load current and surge currents, and is protected against overcurrent.
-
-
Q7: What are the dimensions of the module?
-
A7: The dimensions of the module are 103.9 × 40.3 × 250 mm.
-
-
Q8: What is the rated fuse current for the module?
-
A8: The rated fuse current is 5 A.
-
