Technical Specifications
| Parameter | Specification |
|---|---|

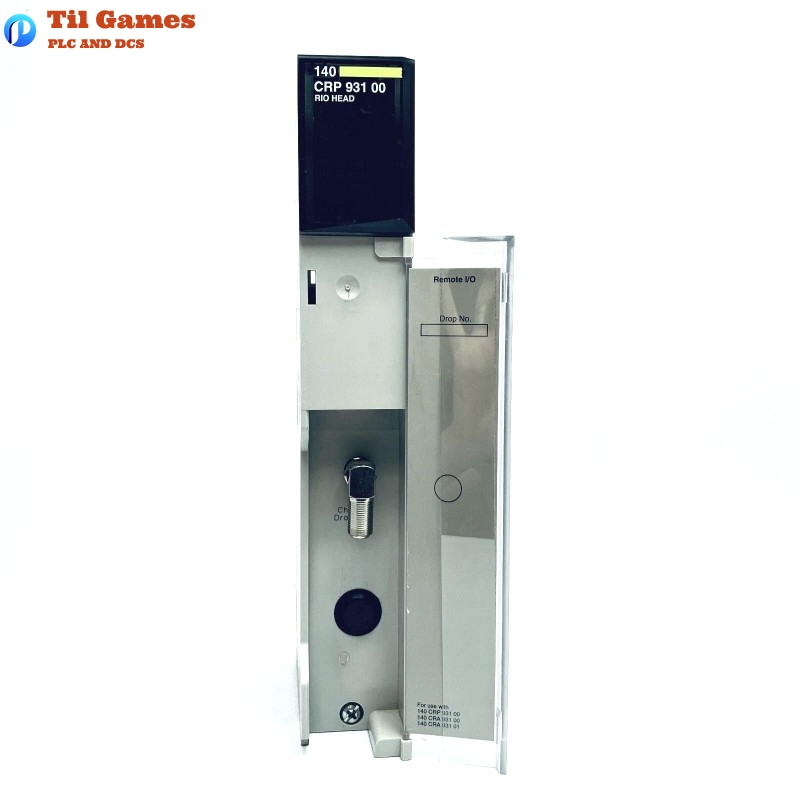

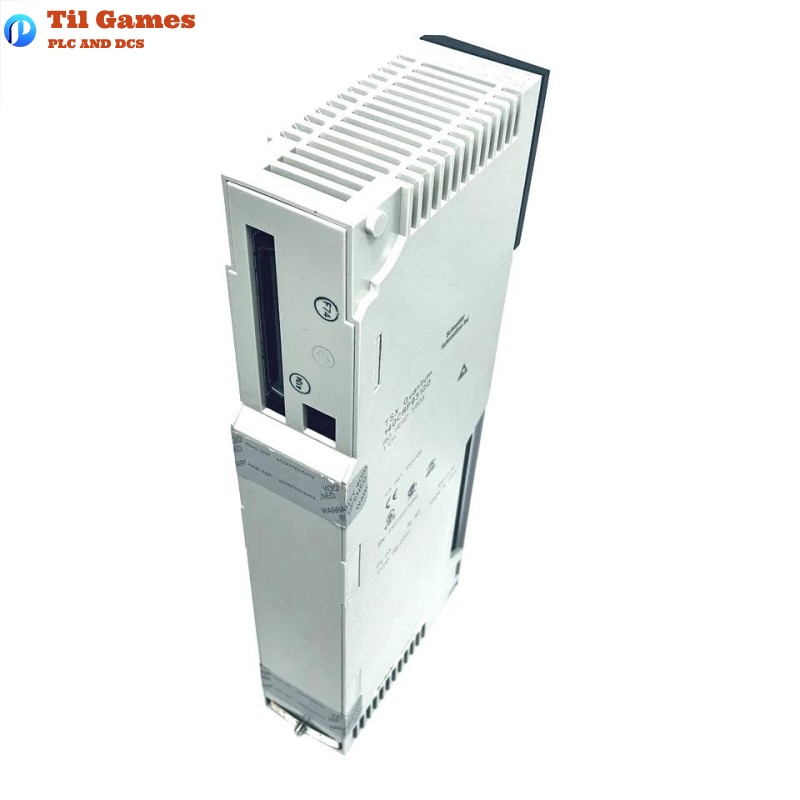

| Module Model | 140CRP93100 |
| Dimensions | 43 × 163 × 314 mm |
| Weight | 0.5 kg |
| Max I/O Supported | 31 (31) |
| Words/Drop | 64 In / 64 Out |
| Data Transfer Rate | 1.544 mbps |
| Current Requirement | Single Channel: 600 mA Dual Channel: 750 mA |
| Power Dissipation | Single Channel: 3 W Dual Channel: 3.8 W |
| Isolation | 500 Vdc coaxial cable center conductor to ground |
| LED Indicators | Ready, Com Act, Error |
| Max CRP Supported by Controller | 1 |
| Coax Termination | Internal 75Ω |
FAQ
FAQs
Q1: What type of I/O systems is the 140CRP93100 module compatible with?
A1: The module supports I/O systems from Quantum, 200 Series, 500 Series, 800 Series, and SY/MAX, among others.
Q2: How many I/O modules can the 140CRP93100 support?
A2: The module can support a maximum of 31 I/O modules, each with 64 inputs and 64 outputs.
Q3: What is the data transfer rate of the module?
A3: The data transfer rate is 1.544 mbps.
Q4: What is the current requirement for the module?
A4: The current requirement is 600 mA for single-channel mode and 750 mA for dual-channel mode.
Q5: How can communication issues be diagnosed?
A5: The module provides various diagnostic functions, including power-up checks, dual-port memory checks, checksum, RAM address/data checks, and more.
Q6: Does the module require external power?
A6: No, the module does not require external power; it operates with power provided through its connection to the system.
Q7: What information do the module’s LED indicators show?
A7: The LED indicators show “Ready” (green), “Com Act” (green), and “Error” (red).
Q8: Can the coaxial cable termination be configured?
A8: Yes, the module uses an internal 75Ω coaxial cable termination for connections.
