Technical Specifications
| Parameter | Value |
|---|---|

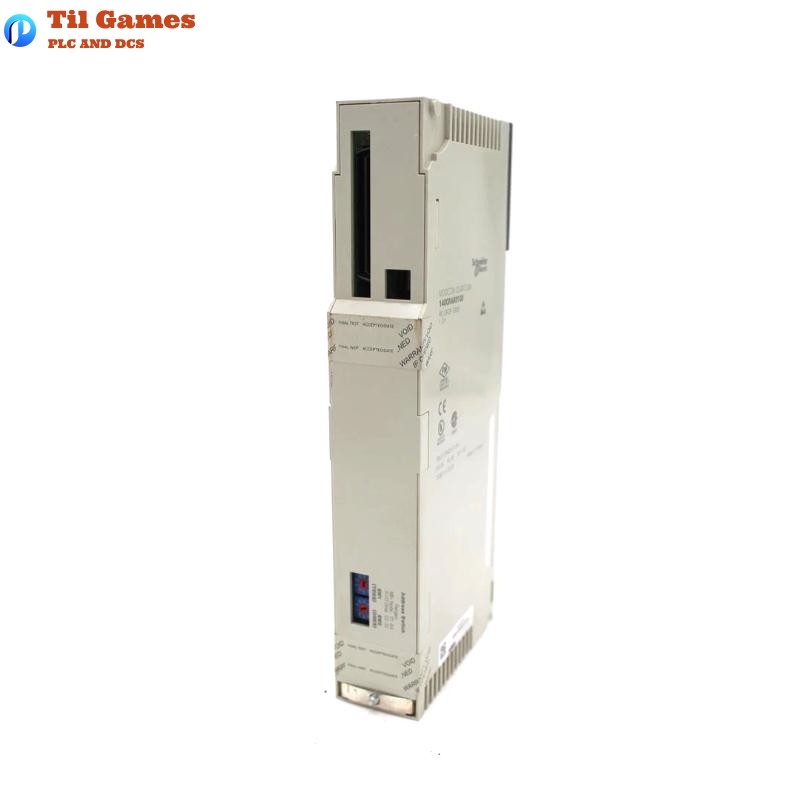

| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | RIO drop adaptor module |
| Product Compatibility | Quantum system |
| Maximum Number of I/O Modules | 27 |
| Type of Cable | 75 Ohm coaxial cable |
| Transmission Rate | 1.544 Mbit/s |
| Dynamic Range | 35 dB |
| Isolation Voltage | 500 V DC (coaxial center to ground) |
| Electrical Connection | 1 F-type female connector, elbowed, with single cable |
| Diagnostics at Startup | Executive checksum, RAM address/data, power up & runtime |
| Power Dissipation | 3 W per channel |
| Bus Current Requirement | 600 mA per channel |
| Module Format | Standard |
| Electrostatic Discharge | 4 kV contact, 8 kV air (IEC 801-2 compliant) |
| Electromagnetic Field Immunity | 9.1 V/m (10 V/m), 80–1000 MHz (IEC 801-3) |
| Operating Ambient Temperature | 0–60 °C (32–140 °F) |
| Storage Ambient Temperature | -40–85 °C (-40–185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
| Dimensions | 47 × 165 × 310 mm |
| Weight | 0.509 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the 140CRA93100 compatible with all Quantum series controllers?
A1: Yes, it is designed specifically for the Modicon Quantum series, ensuring seamless compatibility.
Q2: What is the maximum number of I/O modules that can be connected?
A2: The module supports up to 27 I/O expansion modules.
Q3: What type of cable is recommended for this module?
A3: A 75 Ohm coaxial cable is recommended for optimal performance and signal integrity.
Q4: What is the power consumption of the 140CRA93100?
A4: It consumes 3 W per channel.
Q5: What is the data transmission rate of the module?
A5: The transmission rate is 1.544 Mbit/s.
Q6: Does this module offer protection against electromagnetic interference?
A6: Yes, it complies with IEC 801-3 and withstands up to 9.1 V/m.
Q7: What is the operating temperature range?
A7: The operating range is 0 to 60 °C, suitable for industrial environments.
Q8: Does the 140CRA93100 support diagnostics at startup?
A8: Yes, it supports executive checksum, RAM address/data verification, and runtime diagnostics.
