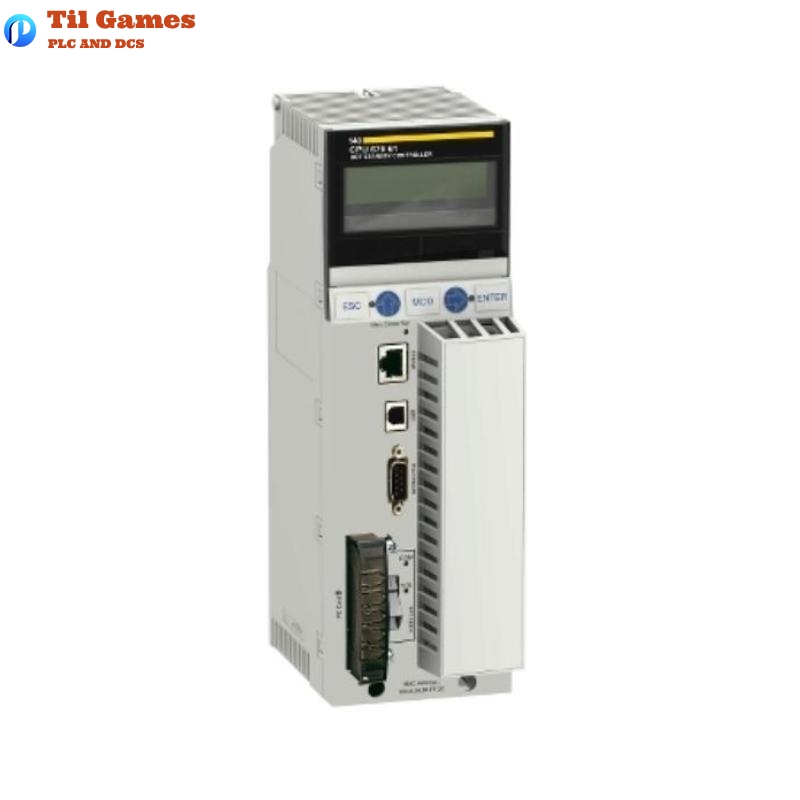

Technical Specifications
| Parameter | Description |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product Type | Unity Processor |
| Mode of Transmission | Single mode |
| Clock Frequency | 266 MHz |
| Number of Slots Supported | 2, 4, 6, 10, 16 |
| Number of Racks | 2 (local) |
| Number of Distributed I/O Stations | 63 (Modbus Plus – 1 to 3 networks) |
| Number of Remote I/O Stations | 31 (S908), 31 (Ethernet Quantum), 31 (Ethernet X80) |
| Discrete I/O Capacity | 31744 inputs and 31744 outputs (remote) 8000 inputs and 8000 outputs (distributed via Modbus Plus) Unlimited (via Ethernet remote I/O) 0 (local – forbidden in Hot Standby) |
| Analog I/O Capacity | 500 inputs and 500 outputs (distributed via Modbus Plus) 1984 inputs and 1984 outputs (remote) Unlimited (Ethernet remote I/O) 0 (local – forbidden in Hot Standby) |
| Application-Specific I/O Features | Serial Link, High-Speed Interrupt Inputs, Accurate Time Stamping, Counter |
| Communication Services | Ethernet Router |
| Optional Communication Modules | 6 types: Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max |
| Max Communication Connections | 1 USB 2 AS-Interface (distributed) 4 AS-Interface (remote) 6 Ethernet TCP/IP (local) 6 Modbus Plus (local) 6 Profibus DP (local) 1 Modbus RS232/485 |
| Integrated Connection Types | 1 Modbus Plus 1 Modbus 1 USB 1 LC Single-mode Fiber Optic (Hot Standby) |
| System Checks and Redundancy | Hot Standby, Process Control |
| Memory | Internal RAM: 11264 kB (1536 kB for data) Expandable File Storage: 8 MB via PCMCIA |
| Key Functions | Memory port on/off switch via key switch |
| Task Structure | 1 Periodic Fast Task 1 Cyclic Master Task 128 I/O Interrupt Tasks 128 Interrupt Tasks 32 Timer Interrupt Tasks 4 Auxiliary Tasks (All except cyclic task are forbidden in Hot Standby mode) |
| Instruction Execution Speed | 10.28 Kinst/ms (100% Boolean) 10.07 Kinst/ms (65% Boolean, 35% Numeric) |
| System Overhead | 0.2 ms (Fast Task), 1 ms (Master Task) |
| Bus Current Requirement | 2760 mA |
| Local Signaling | Ethernet Activity (Green LED), Ethernet Collision (Red LED) |
| Electrical Connections | 1 SUB-D 9 female connector (Modbus Plus) 1 RJ45 (Modbus) 1 LC Connector (Fiber, Hot Standby) |
| Protective Treatment | Conformal Coating (Humiseal 1A33) |
| Certifications | UL, CE, CSA, GOST, Marine |
| Standards Compliance | HazLoc |
| Package Dimensions | 110 mm x 185 mm x 325 mm |
| Package Weight | 1.424 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of remote I/O stations supported by the 140CPU67861 processor?
A1: It supports up to 31 remote I/O stations for each S908, Ethernet Quantum, and Ethernet X80 network.
Q2: Can I use local I/O in a Hot Standby configuration?
A2: No, local I/O is not permitted when the processor is in Hot Standby mode.
Q3: What types of communication protocols are supported natively by this processor?
A3: The processor supports Modbus, Modbus Plus, USB, and single-mode fiber for Hot Standby.
Q4: What is the primary memory capacity of the 140CPU67861 processor?
A4: It has 11264 kB of internal RAM, including 1536 kB dedicated for data.
Q5: Can this processor be expanded with external memory?
A5: Yes, it supports up to 8 MB file storage using a PCMCIA card.
Q6: Is the processor suitable for high-speed applications?
A6: Yes, it supports high-speed interrupt inputs and executes up to 10.28 Kinst/ms for Boolean operations.
Q7: What is the function of the key switch on the processor?
A7: The key switch is used to control the memory port’s power state (on/off).
Q8: Which conformal coating is used for environmental protection?
A8: It is coated with Humiseal 1A33 for added protection against humidity and contaminants.
