Technical Specifications
| Parameter | Description |
|---|---|
| Product Range | Modicon Quantum Automation Platform |
| Product Type | Unity Processor |
| Transmission Mode | Multi-mode |
| Clock Frequency | 266 MHz |
| Number of Slots | 2, 4, 6, 10, 16 |
| Number of Racks | 2 local |
| Distributed I/O Stations (Modbus Plus) | 63 distributed I/O stations |
| Remote I/O Stations (S908) | 31 stations, 2 networks |
| Remote I/O Stations (Ethernet Quantum) | 31 stations, 2 networks |
| Remote I/O Stations (Ethernet X80) | 16 stations, 2 networks |
| Discrete I/O Capacity | 31744 inputs, 31744 outputs (remote) 8000 inputs, 8000 outputs (Modbus Plus) Unlimited (Ethernet remote I/O) 0 (local, forbidden in Hot Standby) |
| Analog I/O Capacity | 1984 inputs, 1984 outputs (remote) 500 inputs, 500 outputs (Modbus Plus) Unlimited (Ethernet remote I/O) 0 (local, forbidden in Hot Standby) |
| Application-Specific I/O | High-speed interrupt inputs, Serial link, Time stamping, Counter |
| Communication Services | Ethernet Router |
| Optional Modules Supported | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Max Communication Connections | 1 USB 2 AS-Interface (distributed) 4 AS-Interface (remote) 6 Ethernet TCP/IP (local) 6 Modbus Plus (local) 6 Profibus DP (local) 1 Modbus RS232/485 (ASCII/RTU) |
| Integrated Ports | 1 Modbus Plus 1 Modbus 1 USB 1 Optical Fibre (Hot Standby) |
| Supported Functions | Process control, Hot Standby |
| Memory Description | Internal RAM: 1024 KB (512 KB for data) Program Memory: Expandable to 7168 KB (via PCMCIA) File Storage: Expandable to 8 MB (via PCMCIA) |
| Switch Function | Key switch for memory port ON/OFF |
| Application Structure | 1 Periodic Fast Task (forbidden in Hot Standby) 128 I/O Interrupt Tasks (forbidden in Hot Standby) 128 General Interrupt Tasks (forbidden in Hot Standby) 32 Timer Interrupt Tasks (forbidden in Hot Standby) 4 Auxiliary Tasks (forbidden in Hot Standby) 1 Cyclic/Periodic Master Task |
| Instruction Execution Speed | 10.28 Kinst/ms (100% Boolean) 10.07 Kinst/ms (65% Boolean, 35% Numeric) |
| System Overhead | 0.2 ms (Fast Task) 1 ms (Master Task) |
| Bus Current Requirement | 2500 mA |
| Local Signaling | 1 Green LED (Ethernet Activity – COM) 1 Red LED (Ethernet Collision) |
| Electrical Connections | 1 x SUB-D 9-pin female connector (Modbus Plus) 1 x RJ45 (Modbus) 1 x MT-RJ (Fiber Optic for Hot Standby) |
| Certifications | CE, UL, Marine (Misc), CSA, GOST |
| Compliance Standards | HazLoc |
| Package Dimensions | 110 mm x 190 mm x 325 mm |
| Package Weight | 1.447 kg |
FAQ
Frequently Asked Questions (FAQ)

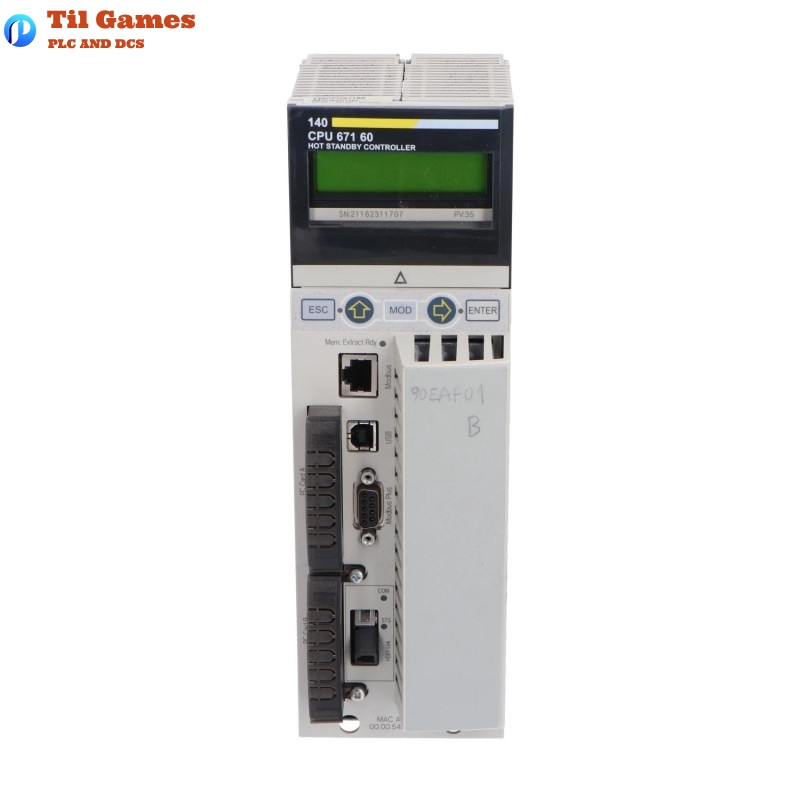

Q1: What is the main application of the 140CPU67160 Unity Hot Standby Processor?
A1: This processor is used in high-availability applications requiring redundancy and continuous process control in Modicon Quantum automation systems.
Q2: Can this processor support Hot Standby operation with local I/O?
A2: No, the use of local I/O is not permitted in Hot Standby configurations with this processor.
Q3: How many distributed I/O stations can be connected via Modbus Plus?
A3: Up to 63 distributed I/O stations can be connected per network using Modbus Plus.
Q4: What are the memory expansion options available?
A4: Program memory can be expanded up to 7168 KB and file storage up to 8 MB using PCMCIA cards.
Q5: Does the processor support Ethernet communication?
A5: Yes, it supports Ethernet TCP/IP with up to 6 local connections and integrates a fiber optic port for Hot Standby communication.
Q6: Are high-speed interrupts supported in Hot Standby applications?
A6: No, high-speed interrupt tasks are not supported in Hot Standby mode.
Q7: What types of communication modules can be added?
A7: Optional modules include Ethernet, Modbus, Modbus Plus, Profibus DP, and Sy/Max interfaces.
Q8: What is the processor’s execution speed?
A8: It can execute up to 10.28 K instructions per millisecond with 100% Boolean logic, and 10.07 K instructions per millisecond with a 65% Boolean and 35% numerical mix.
