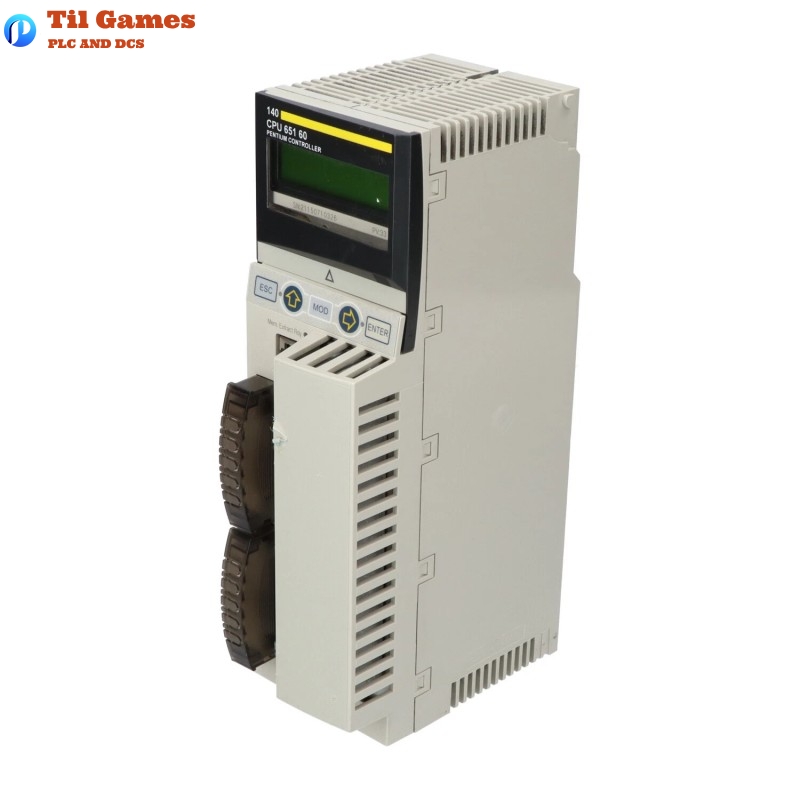

Schneider 140CPU65160 Unity Processor – Technical Specifications
| Parameter | Details |
|---|---|
| Range of Product | Modicon Quantum Automation Platform |
| Product Type | Unity Processor |
| Clock Frequency | 266 MHz |
| Program Memory (Internal RAM) | 1024 kB |
| Program Memory (Expandable) | 7168 kB with PCMCIA card |
| File Storage Memory (Expandable) | 8 MB with PCMCIA card |
| Application Structure | – 1 cyclic/periodic master task – 1 periodic fast task – 128 I/O interrupt tasks – 128 interrupt tasks – 32 timer interrupt tasks – 4 auxiliary tasks |
| Instructions per ms | – 10.28 Kinst/ms (100% Boolean) – 10.07 Kinst/ms (65% Boolean, 35% Numerical) |
| System Overhead | – 0.2 ms for fast task – 1 ms for master task |
| Bus Current Requirement | 2760 mA |
| Number of Slots Supported | 2, 4, 6, 10, 16 (varies by configuration) |
| Number of Racks (Local) | 2 |
| Number of Distributed I/O Stations | 63 (Modbus Plus) |
| Number of Remote I/O Stations | – 31 (S908) – 31 (Ethernet Quantum) – 16 (Ethernet X80) |
| Discrete I/O Capacity | – 31744 Inputs / 31744 Outputs (Remote) – 8000 Inputs / 8000 Outputs (Distributed per Modbus Plus) – Unlimited (Local, 26 slots max) – Unlimited (Ethernet remote I/O, 31 drops of 28 slots max) |
| Analog I/O Capacity | – 500 Inputs / 500 Outputs (Distributed via Modbus Plus) – 1984 Inputs / 1984 Outputs (S908) – Unlimited (Local, 26 slots max) – Unlimited (Ethernet remote I/O, 31 drops of 28 slots max) |
| Application-Specific I/O | – Accurate Time Stamping – High-Speed Interrupt Inputs – Serial Link – Counter |
| Communication Services | Ethernet Router |
| Integrated Communication Ports | – 1 x Modbus Plus – 1 x Ethernet TCP/IP – 1 x Modbus RS232/RS485 – 1 x USB |
| Optional Communication Modules Supported | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum Connections | – 1 x USB – 2 x AS-Interface (Distributed) – 4 x AS-Interface (Remote) – 6 x Ethernet TCP/IP (Local) – 6 x Modbus Plus (Local) – 6 x Profibus DP (Local) – 1 x Modbus RS232/485 (Modbus/ASCII) |
| Switch Function | Key Switch for Memory Port ON/OFF |
| LED Indicators | – 1 Green LED for Ethernet Activity (COM) – 1 Red LED for Ethernet Collision |
| Electrical Connection | – 1 x SUB-D 9-pin female connector (Modbus Plus) – 2 x RJ45 connectors (Ethernet and Modbus) |
| Certifications | UL, CSA, CE, GOST, Misc (Marine) |
| Standards Compliance | HazLoc |
| Process Checks | Process Control |
| Package Dimensions | 110 mm x 185 mm x 325 mm |
| Package Weight | 1.46 kg |
FAQ
Frequently Asked Questions – Schneider 140CPU65160 Unity Processor
Q1: What type of processor is the 140CPU65160 part of?
A1: It belongs to the Modicon Quantum automation platform as a Unity processor, specifically designed for high-performance applications.
Q2: How many local and remote I/O modules can this processor support?
A2: It supports up to 2 local racks and up to 31 remote drops (S908 or Ethernet Quantum), along with 16 Ethernet X80 remote I/O stations.
Q3: What is the maximum amount of internal RAM available?
A3: The internal RAM is 1024 kB, with additional expandable memory up to 7168 kB for programs and 8 MB for file storage using a PCMCIA card.
Q4: What communication ports are integrated into the processor?
A4: It includes 1 Modbus Plus port, 1 Ethernet TCP/IP port, 1 USB port, and 1 Modbus RS232/485 serial port.
Q5: What is the execution performance of the processor?
A5: The processor executes up to 10.28 K instructions per millisecond in full Boolean mode and 10.07 K instructions per millisecond with a 65/35 Boolean to numerical instruction mix.
Q6: What are the discrete and analog I/O capacities of this processor?
A6: It supports up to 31744 discrete inputs and outputs remotely, 8000 discrete I/Os distributed via Modbus Plus, and analog capacities of up to 1984 inputs/outputs on S908 or unlimited locally via slot expansion.
Q7: What is the power requirement for the CPU module?
A7: The bus current requirement is 2760 mA.
Q8: What environment and certifications does the unit comply with?
A8: The 140CPU65160 complies with UL, CSA, CE, GOST, and Marine (Misc) certifications and adheres to HazLoc standards for hazardous locations.
