Technical Specifications
| Parameter | Specification |
|---|---|

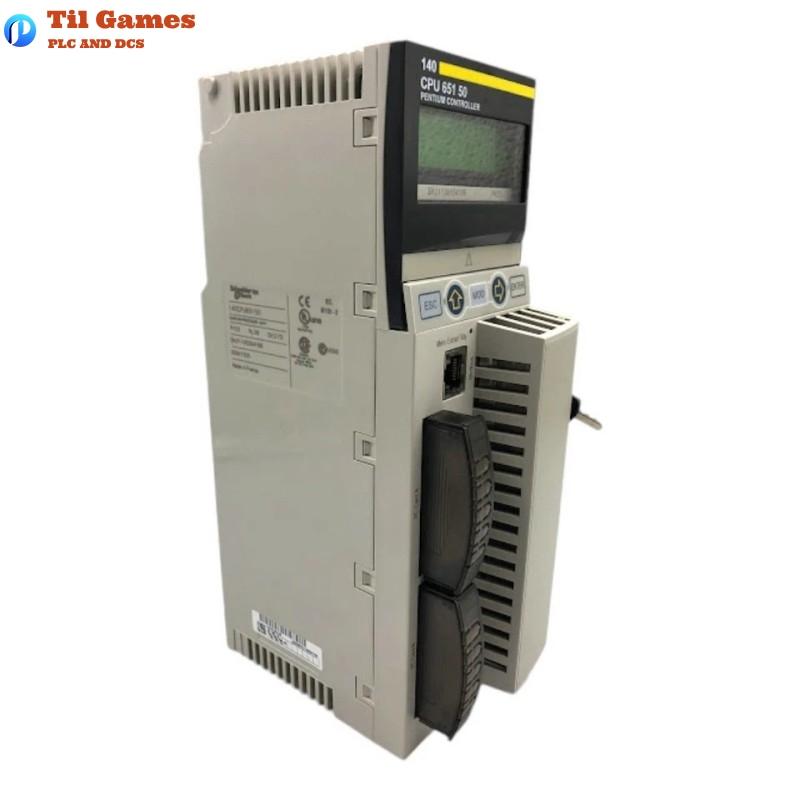

| Product Range | Modicon Quantum Automation Platform |
| Product Type | Unity Processor |
| Processor Clock Frequency | 166 MHz |
| Integrated Communication Ports | 1 x Modbus Plus, 1 x Ethernet TCP/IP, 1 x Modbus (RJ45), 1 x USB |
| Optional Communication Modules | Up to 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum Communication Connections | 1 x USB, 2 x AS-Interface (distributed), 4 x AS-Interface (remote), |
| 6 x Ethernet TCP/IP (local), 6 x Modbus Plus (local), | |
| 6 x Profibus DP (local), 1 x Modbus RS232/485 (ASCII) | |
| Number of Local Racks | 2 |
| Number of Remote I/O Stations | 31 (2 S908 remote I/O), 31 (2 Ethernet Quantum remote I/O), |
| 16 (2 Ethernet X80 remote I/O) | |
| Number of Distributed I/O Stations | 63 (Modbus Plus) |
| Discrete I/O Capacity | 31744 inputs, 31744 outputs (remote) |
| 8000 inputs, 8000 outputs (distributed via Modbus Plus) | |
| Unlimited (local – up to 26 slots) | |
| Unlimited (Ethernet remote I/O – up to 31 drops of 28 slots each) | |
| Analog I/O Capacity | 500 inputs, 500 outputs (Modbus Plus – distributed) |
| 1984 inputs, 1984 outputs (S908 – remote) | |
| Unlimited (local and Ethernet remote I/O) | |
| Application Specific I/O Support | Time Stamping, Serial Link, High-Speed Interrupts, Counter Functions |
| Task Structure | 1 x Master Task (cyclic/periodic), 1 x Fast Periodic Task, |
| 128 x I/O Interrupt Tasks, 128 x General Interrupt Tasks, | |
| 32 x Timer Interrupt Tasks, 4 x Auxiliary Tasks | |
| Instruction Execution Speed | 10.28 Kinst/ms (100% Boolean), 10.07 Kinst/ms (65% Boolean, 35% Numerical) |
| System Overhead | 0.2 ms (fast task), 1 ms (master task) |
| Internal RAM | 768 kB |
| Expandable Program Memory | Up to 7168 kB (with PCMCIA card) |
| Expandable File Storage | Up to 8 MB (with PCMCIA card) |
| Bus Current Requirement | 2160 mA |
| Switch Function | Key switch (memory port On/Off) |
| Local Signalling LEDs | 1 x Green (Ethernet activity), 1 x Red (Ethernet collision) |
| Electrical Connections | 1 x SUB-D 9 (Modbus Plus), 1 x RJ45 (Ethernet), 1 x RJ45 (Modbus) |
| Certifications | UL, CE, CSA, GOST, Misc (Marine) |
| Standards Compliance | HazLoc |
| Package Dimensions | 110 mm x 185 mm x 325 mm |
| Package Weight | 1.434 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the 140CPU65150 Unity Processor?
A1: It is designed for high-end control applications within the Modicon Quantum platform, supporting both discrete and process control systems.
Q2: Can this processor support time-critical operations such as high-speed interrupts?
A2: Yes, it supports up to 128 high-speed I/O interrupt tasks and additional 128 general interrupt tasks, ensuring real-time responsiveness.
Q3: What memory options are available for program expansion?
A3: The processor allows program memory expansion up to 7168 kB and file storage expansion up to 8 MB using a PCMCIA card.
Q4: How many local racks and remote I/O stations are supported?
A4: It supports 2 local racks, 31 remote I/O stations via S908 or Ethernet, and up to 63 distributed I/O stations via Modbus Plus.
Q5: What is the communication flexibility of this processor?
A5: It includes integrated ports for Ethernet, Modbus Plus, Modbus, USB, and supports optional modules such as Profibus DP and Sy/Max.
Q6: Are there limitations on the number of I/O points it can handle?
A6: It supports unlimited local and Ethernet remote I/O configurations, with specified maximums for distributed and remote I/O per network type.
Q7: Does the processor support application-specific functionalities?
A7: Yes, it supports advanced I/O such as accurate timestamping, counters, high-speed interrupts, and serial link communications.
Q8: What are the power and LED indicators used for?
A8: Green LED indicates Ethernet activity, while the red LED shows Ethernet collisions, helping in quick diagnostics during operation.
