Technical Specifications
| Parameter | Details |
|---|---|

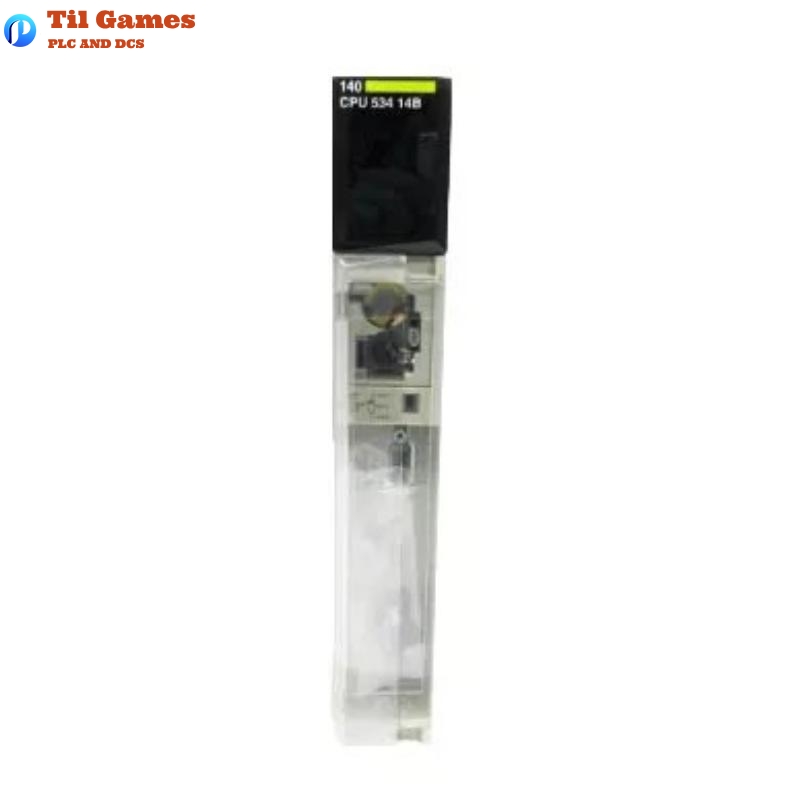

| Product Range | Modicon Quantum Automation Platform |
| Product Type | Processor |
| Processor Name | 80486 |
| Mathematical Coprocessor | Yes |
| Clock Frequency | 100 MHz |
| Internal RAM | 2972 kB |
| Instruction Execution Time | 0.1 to 0.5 ms per Kinstruction (LL984) |
| Software Compatibility | Unity Pro, ProWORX 32, Concept |
| Watchdog Timer | 250 ms |
| Clock Drift | ±8 s/day (within 0…60 °C / 32…140 °F) |
| Local I/O Capacity | 64 Inputs / 64 Outputs |
| Distributed I/O Capacity | 30 Inputs / 32 Outputs |
| Remote I/O Capacity | 64 Inputs / 64 Outputs |
| Max I/O per Network | 500 Inputs / 500 Outputs (Distributed) |
| Max Distributed Drops per Network | 63 Drops |
| Max Remote Drops | 31 Drops |
| Number of Networks | 2 Remote, 3 Distributed |
| Battery Type | Lithium, consumption: 10 µA (normal), 420 µA (max) |
| Battery Capacity | 1.2 Ah |
| Battery Life | 10 Years |
| Switch Function | Key Switch |
| Marking | CE |
| Bus Current Requirement | 1250 mA |
| Module Format | Standard |
| Product Certifications | FM Class 1 Division 2, cUL |
| Compliance Standards | CSA C22.2 No 142, UL 508 |
| Electrostatic Discharge Resistance | 4 kV (Contact), 8 kV (Air) – IEC 801-2 |
| Electromagnetic Field Resistance | 9.1 V/m (10 V/m) – IEC 801-3, 80…2000 MHz |
| Operating Temperature Range | 0…60 °C (32…140 °F) |
| Storage Temperature Range | -40…85 °C (-40…185 °F) |
| Relative Humidity | 95% (Non-condensing) |
| Operating Altitude | Up to 5000 m (16,404.2 ft) |
| Dimensions (Package) | 50 x 165 x 310 mm |
| Net Weight | 0.85 kg (1.87 lb US) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What programming environments support the 140CPU53414B processor?
A1: The 140CPU53414B supports Unity Pro, ProWORX 32, and Concept software platforms.
Q2: What is the clock speed of the processor?
A2: This unit runs at a clock speed of 100 MHz, powered by an Intel 80486 CPU.
Q3: How much internal RAM is available in the processor?
A3: The processor includes 2972 kB of internal RAM for program and data handling.
Q4: What are the I/O handling capabilities of the processor?
A4: It can handle up to 64 local inputs/outputs, 64 remote inputs/outputs, and 500 distributed I/Os per network.
Q5: Does the unit include a hardware watchdog timer?
A5: Yes, the processor is equipped with a 250 ms hardware watchdog timer for system protection.
Q6: What is the lifespan of the internal battery?
A6: The internal lithium battery has an expected service life of 10 years under typical operating conditions.
Q7: Is the processor suitable for use in industrial environments with high EMI?
A7: Yes, it meets IEC 801-3 standards with resistance up to 9.1 V/m (10 V/m) for electromagnetic fields from 80 to 2000 MHz.
Q8: What are the storage and operating temperature ranges?
A8: The operating range is from 0 to 60 °C, and the storage range is from -40 to 85 °C.
